Rotax 912 Series Service Manual

76-00-00
page 40
May 01/2007
Effectivity 914 Series
Edition 1 / Rev. 0
d02626
BRP-Rotax
Maintenance Manual
Resistance between the connections (6) and (7):
Throttle valve closed
(throttle lever pos. 0%): 3.4 to 4.6 kΩ
Throttle valve open
(throttle lever pos. 115%): 0.8 to 2.0 kΩ

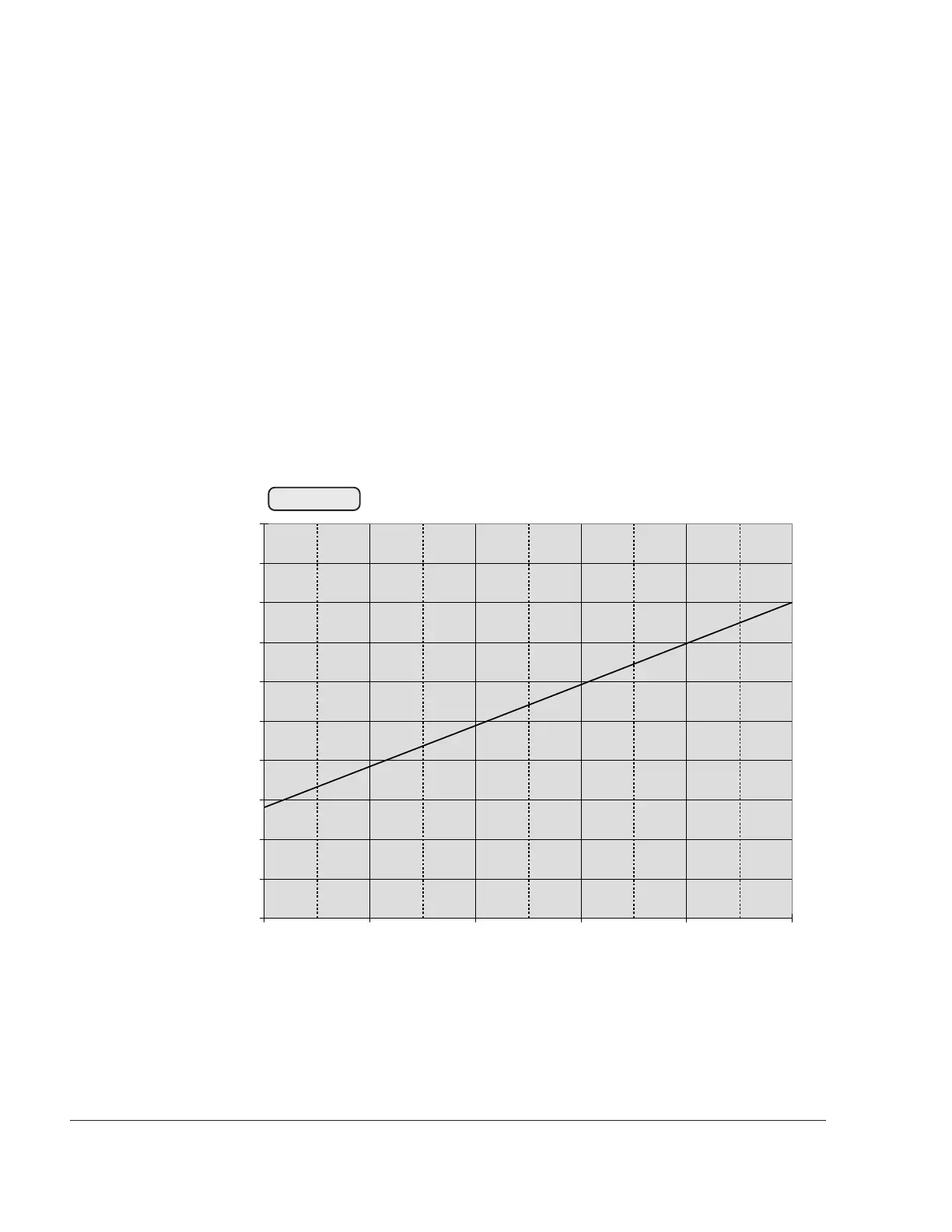

◆ NOTE: Check complete operating range as shown in
the following diagram (Fig. 76-38) for linear
resistance progress.
0
0,5
1
1,5
2
2,5
3
3,5
4
4,5
5
open
00221
closed
resistance (kΩ)
throttle position
Fig. 76-38

Rotax 912 Series Specifications

General

Redline	5800 rpm
TBO	2000 hours
Displacement	1211 cc
Bore	79.5 mm
Stroke	61 mm
Power Output	80 hp (59.6 kW)
Compression Ratio	9.0:1
Fuel Type	Avgas 100LL
Ignition System	Dual electronic ignition
Fuel System	Fuel Injected
Oil System	Dry sump
Engine Type	4-cylinder, horizontally opposed, 4-stroke
