- Disassembly device for propeller gearbox.

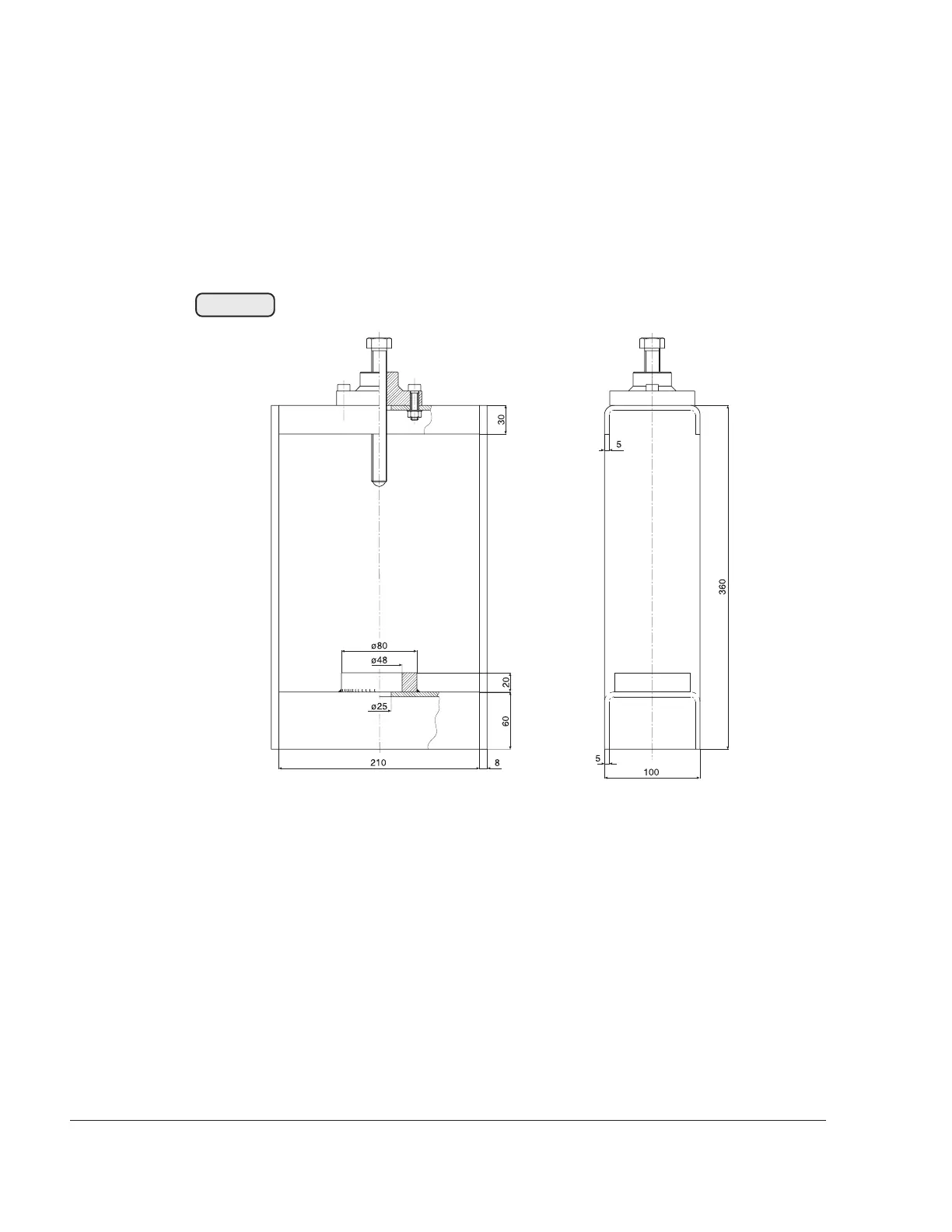

Fig. 00-8 shows one possible tensioning device for the disassembly of the
propeller gearbox. The dimensions given are only intended for easier
orientation and are not binding.
Fig. 00-8
07525
(14.17 in.)
(2.36 in.)
(0.78 in.)
(1.18 in.)
(8.27 in.)
(3.94 in.)
(0.31 in.)
(0.2 in.)
(0.2 in.)
(1 in.)
(1.89 in.)
(3.15 in.)
