Rotax 912 Series Service Manual

Effectivity 914 Series
Edition 1 / Rev. 0
76-00-00
page 49
May 01/2007
d02626
BRP-Rotax
Maintenance Manual
Test set-up
Connect pin (4) to ground and connect pin (5) to positive side
of voltage supply Us. Apply test pressure to sensor (input 6)
Take reading of output voltage between pin (4) and pin (3).
Divide the measured out put voltage (Ua) by the supply
voltage (Us).
◆ NOTE: Calculation of this pressure ratio is required
since the diagram is effective over a whole
voltage range and not just for a single voltage.

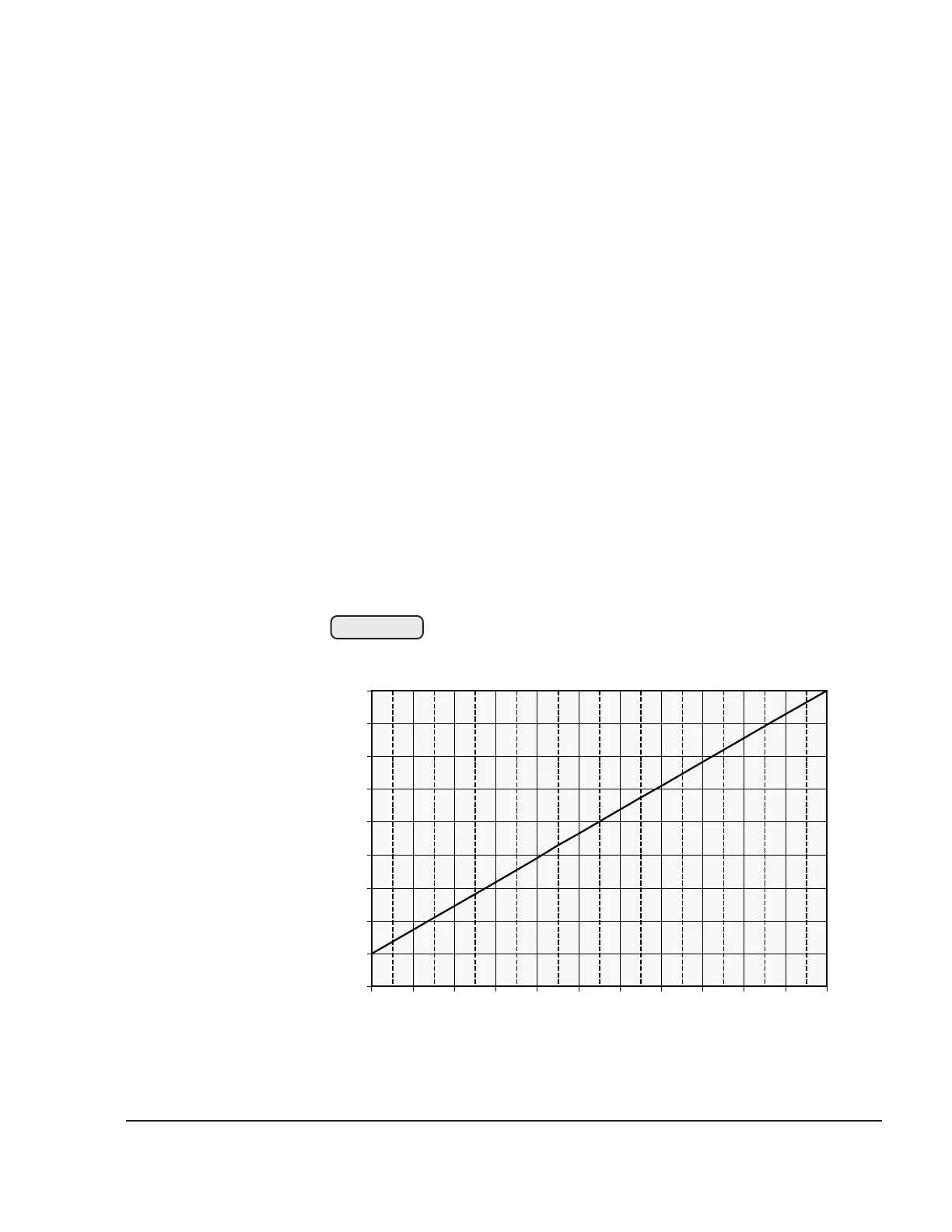

Enter this value in the table Ua/Us. A pressure can be read off
at the intersection of the straight lines.
Max. allowance ± 60 hPa
■ CAUTION: In the event of physical damage or resistance
readings outside allowance, replace the part
without delay.
0,0
0,1
0,2
0,3
0,4
0,5
0,6
0,7
0,8
0,9
100 200 300 400 500 600 700 800 900
1000 1100 1200
Druck [hPa] absolu
t
pressure absolute
Ua/Us
00441
Fig. 76-47

Rotax 912 Series Specifications

General

Redline	5800 rpm
TBO	2000 hours
Displacement	1211 cc
Bore	79.5 mm
Stroke	61 mm
Power Output	80 hp (59.6 kW)
Compression Ratio	9.0:1
Fuel Type	Avgas 100LL
Ignition System	Dual electronic ignition
Fuel System	Fuel Injected
Oil System	Dry sump
Engine Type	4-cylinder, horizontally opposed, 4-stroke
