Rotax 912 Series Service Manual

Effectivity 912/914 Series
Edition 1 / Rev. 0
79-00-00
page 9
May 01/2007
d02628
BRP-Rotax
Maintenance Manual
6
zum hydr. Verstellregler
(optional)
to hydr. governor
Ölzulauf
oil inlet
zum Öltank
to oil tank
3
7
1
9
8
5
4
16
18
19
10
11
12
13
2
9
15
2
17
0-10
bar
00131

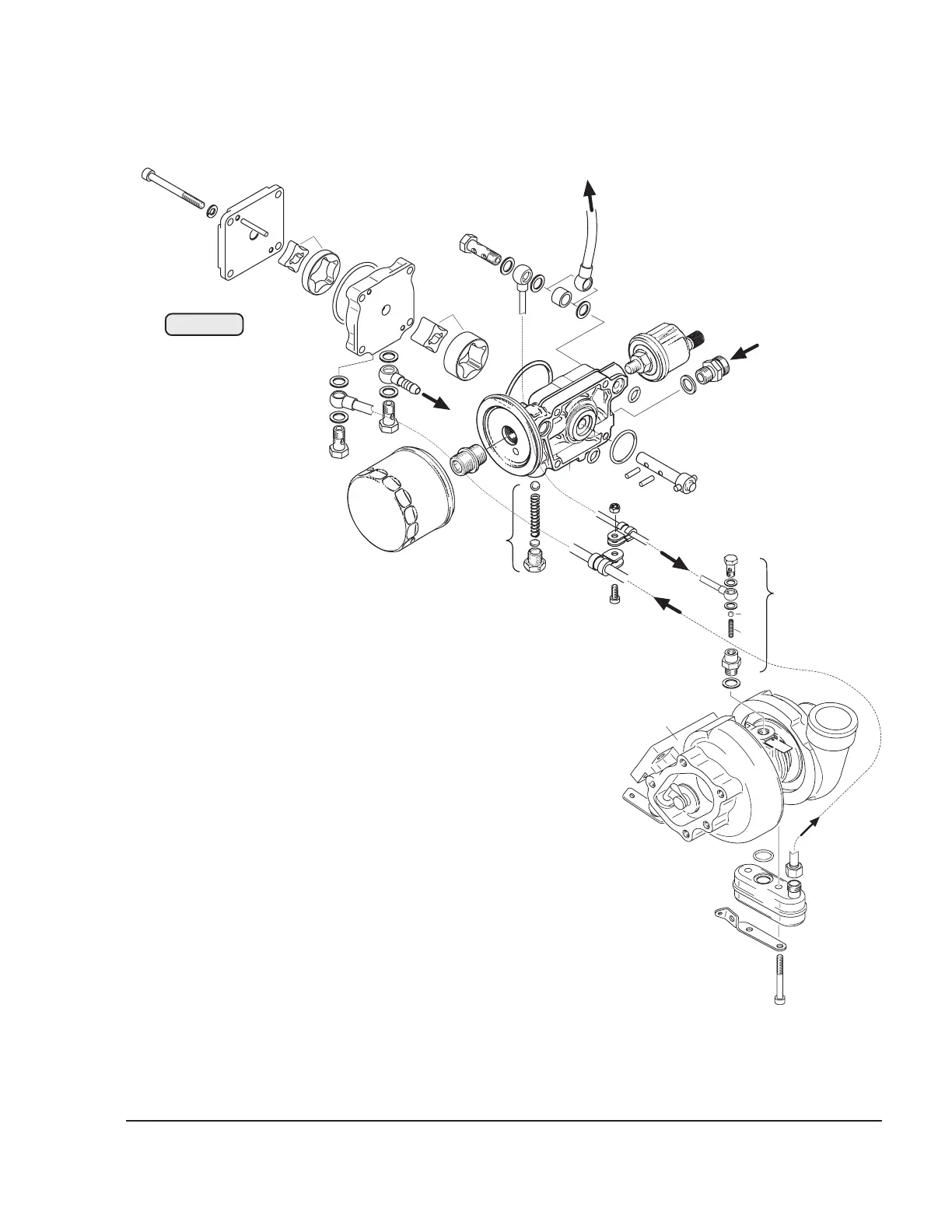

Legend to Fig. 311:
(1) Turbocharger
(2) Pressure oil line (turbocharger)
(3) Pressure valve
(4) Valve housing
(5) Pressure spring
(6) Ball ø 5.5 mm (0.22 in.)
(7) Banjo bolt
(8) Oil sump
(9) Suction line (turbocharger)
(10) Ring hose nipple
(11) Suction pump
(12) Main oil pump (pressure oil pump)
(13) Oil pump housing (main oil pump)
(14) Oil pump housing (suction oil pump)
(15) Oil pump shaft
(16) Oil feed line
(17) Oil pressure sensor
(18) Oil filter
(19) Pressure relief valve
912 Series
914 Series
Fig . 79-4

Rotax 912 Series Specifications

General

Redline	5800 rpm
TBO	2000 hours
Displacement	1211 cc
Bore	79.5 mm
Stroke	61 mm
Power Output	80 hp (59.6 kW)
Compression Ratio	9.0:1
Fuel Type	Avgas 100LL
Ignition System	Dual electronic ignition
Fuel System	Fuel Injected
Oil System	Dry sump
Engine Type	4-cylinder, horizontally opposed, 4-stroke
