Rotax 912 Series Service Manual

Effectivity 914 Series
Edition 1 / Rev. 0
71-00-00
page 9
May 01/2007
d02621
BRP-Rotax
Maintenance Manual
A
A
-x
+x
-y
+y
P
-x1
+y1
-y1
+x1
+z1
+y1
-y1
-z1
+z
-z
-y
+y
P
00124
00121
00122
00123
914 Series
914 Series

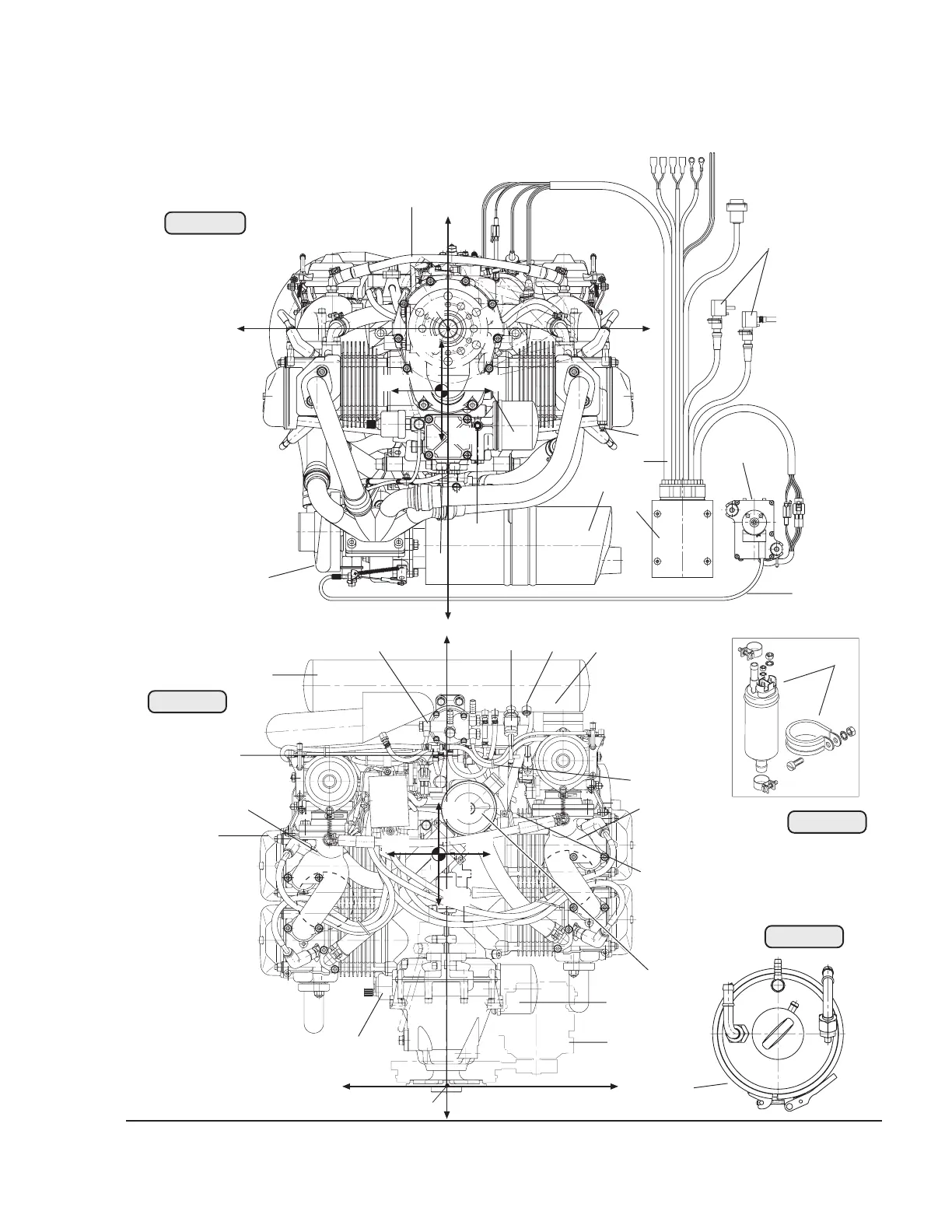

Fig. 71-6
Fig. 71-9
Fig. 71-8
Cyl. 1
Cyl. 3
Cyl. 4
Cyl. 2
13
15
16
17
11
12
26
37
29
30
31
40
22
1
5
14
33
41
9
19
25
28
30
39
36
38
23
5
27
31
Front view
Top view
Fig. 71-7

Rotax 912 Series Specifications

General

Redline	5800 rpm
TBO	2000 hours
Displacement	1211 cc
Bore	79.5 mm
Stroke	61 mm
Power Output	80 hp (59.6 kW)
Compression Ratio	9.0:1
Fuel Type	Avgas 100LL
Ignition System	Dual electronic ignition
Fuel System	Fuel Injected
Oil System	Dry sump
Engine Type	4-cylinder, horizontally opposed, 4-stroke
