Rotax 914 series Maintenance Manual

Effectivity 912 Series
Edition 1 / Rev. 0
74-00-00
page 25
May 01/2007
d02624
BRP-Rotax
Maintenance Manual
00403
◆ NOTE:

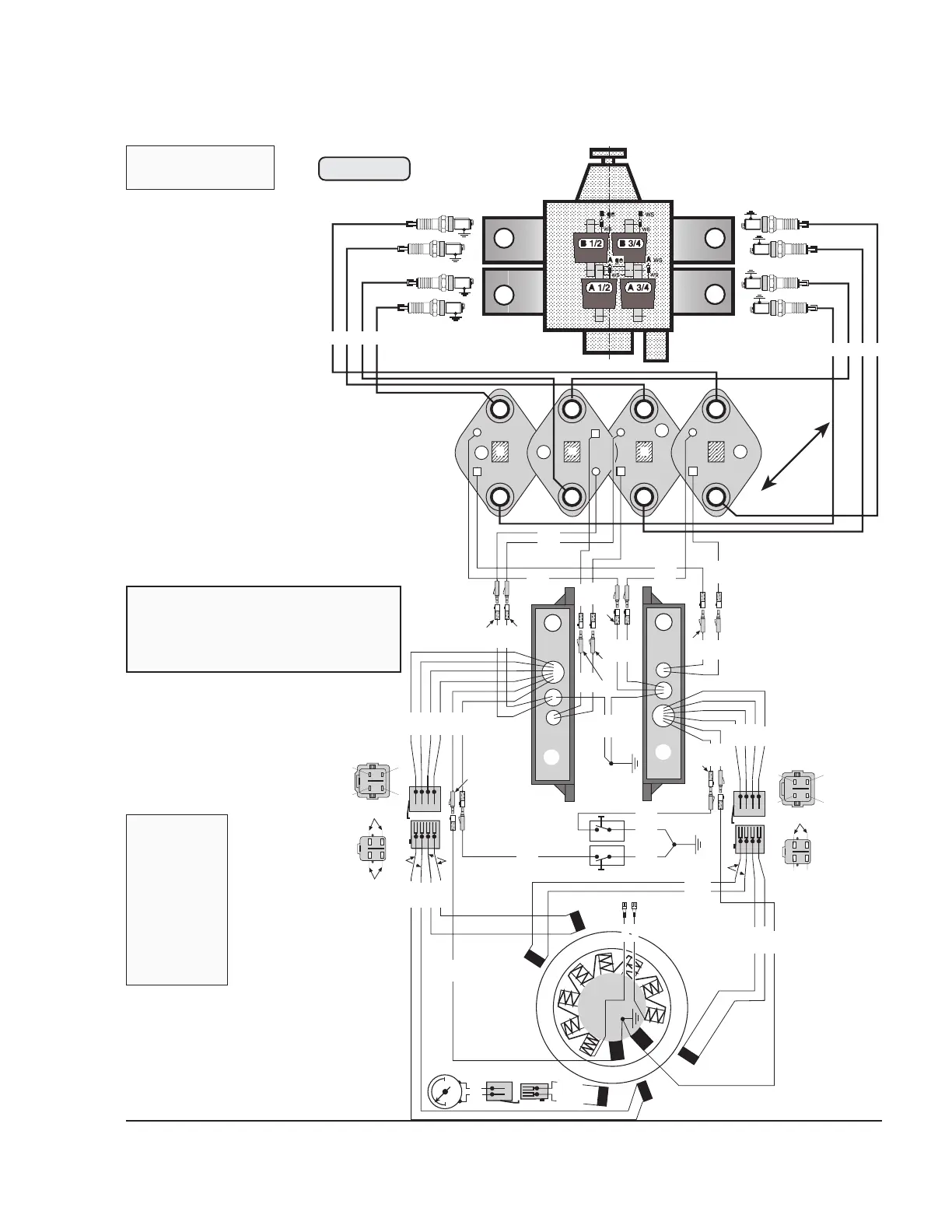

Fig. 74-18 shows the wiring diagram
for electronic modules with 1-pin and
4-pin plugs.
T = top = oben
B = bottom = unten
bl blue
br brown
ge yellow
gn green
ro red
rs pink
sw black
ws white
or orange
ignition circuit A: 1 - 2 TOP
3 - 4 BOTTOM
ignition circuit B: 1 - 2 BOTTOM
3 - 4 TOP
o ro
O bl
O gn
o bl
o gn
o ro
V
O gn
O bl
4B
1T
2T
1B
2B
4B
3B
1
3
ge
ws
blgn
4T
2T
2B
3T
3B
1T
1B
1 sw 1 sw 1 sw 1 sw
0,75 ws
0,75 sw
0,75 ws
0,75 ge
0,75 sw 0,75 sw
0,75 ws
0,75 ge
0,75 br 0,75 or
0,75 ro
1,5 ge
0,75 ro
0,5 ws/ge
0,5 bl/ge
0,75 br
0,75 sw
0,75 sw
0,5 bl/ge 0,5 ws/ge 0,5 bl/ge 0,5 ws/ge
0,75 br
1,5
B1/2
A3/4
B3/4
A1/2
1,5 ge
1 sw 1 sw 1 sw 1 sw
0,75 ws
0,75 ws
0,75 ws
1,5
0,75 gn 0,75 bl 0,75 ge 0,75 ws
A
B
B
Propeller-
seite
Magnet-
seite
3T
4T
0,75 br
0,75 gn
0,75 bl 0,75 ge
0,75 ws
0,75 or
ws/ge
bl/ge
ws/ge
bl/ge
O ro O bl
ws/ge
bl/ge
ws/ge
bl/ge
O gn
O bl O ro
O gn
gn
bl
ro
0,5 ws/ge
0,5 bl/ge
0,5 bl/ge
0,5 ws/ge
0,75 bl 0,75 bl
0,75 sw
0,75 sw
0,75 sw
A
0,75 bl
0,75 bl
O ro
ge
ws
blgn
O ge mit A
O ws mit B
6
7
8
9
12
13
1
2
3
3
4
2
5
8
16
1
3
4
2
7
8
8
8
8
9
12 12 12
14 14 15
A
B
10
11
15
Fig. 74-18
Engine version 912 A/F/
UL older model

Rotax 914 series Specifications

General

Bore	79.5 mm
Stroke	61 mm
Compression Ratio	9.0:1
Cooling System	Liquid-cooled cylinder heads, air-cooled cylinders
Redline	5800 rpm
Engine Type	4-cylinder, 4-stroke
Fuel Type	Avgas 100LL
Oil System	Dry sump
Fuel System	fuel injection
TBO (Time Between Overhauls)	2000 hours
Displacement	1.211 liters (1211 cc)
Power Output	84.6 kW (115 hp) at 5, 800 rpm
