Rotax 914 series Maintenance Manual

Effectivity 912/914 Series
Edition 1 / Rev. 0
79-00-00
page 9
May 01/2007
d02628
BRP-Rotax
Maintenance Manual
6
zum hydr. Verstellregler
(optional)
to hydr. governor
Ölzulauf
oil inlet
zum Öltank
to oil tank
3
7
1
9
8
5
4
16
18
19
10
11
12
13
2
9
15
2
17
0-10
bar
00131

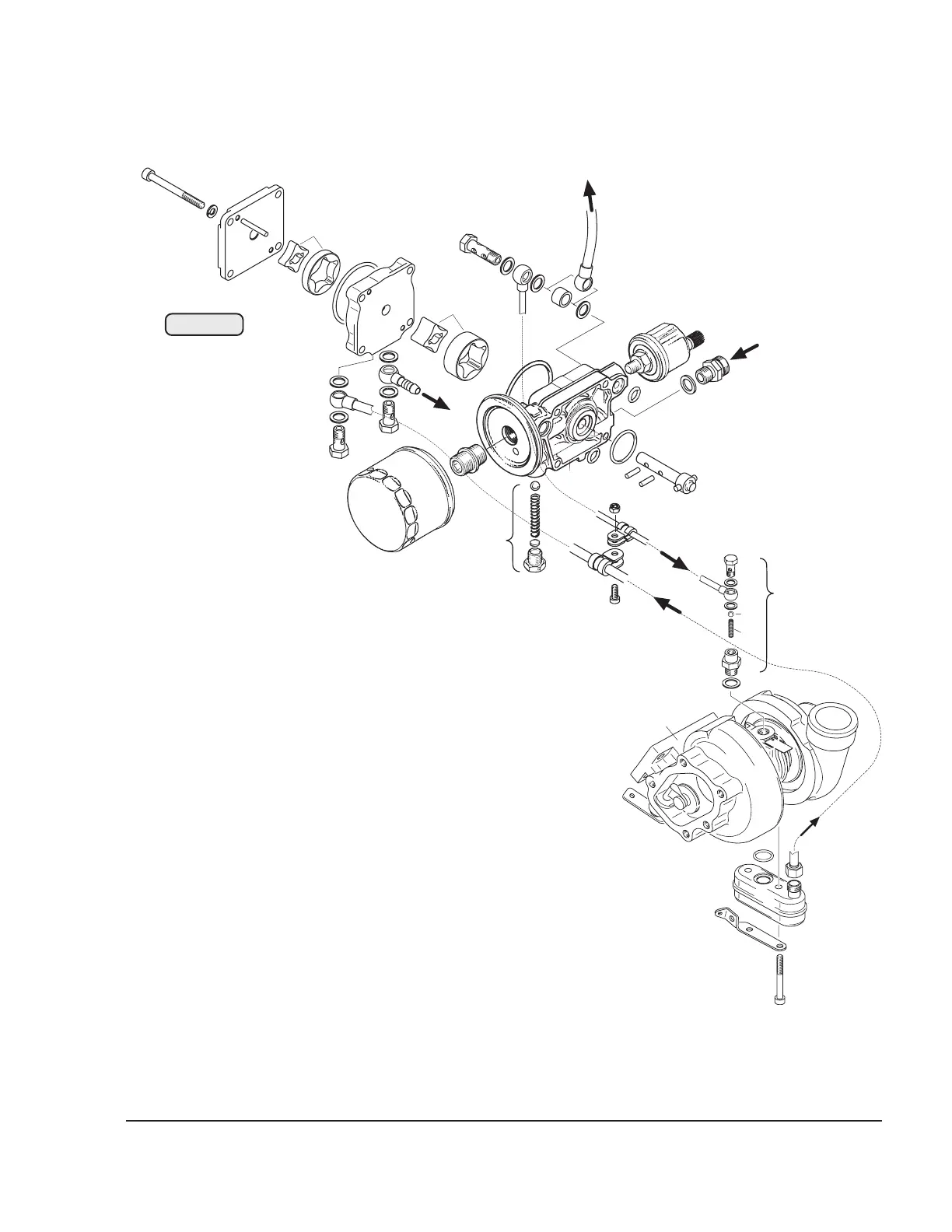

Legend to Fig. 311:
(1) Turbocharger
(2) Pressure oil line (turbocharger)
(3) Pressure valve
(4) Valve housing
(5) Pressure spring
(6) Ball ø 5.5 mm (0.22 in.)
(7) Banjo bolt
(8) Oil sump
(9) Suction line (turbocharger)
(10) Ring hose nipple
(11) Suction pump
(12) Main oil pump (pressure oil pump)
(13) Oil pump housing (main oil pump)
(14) Oil pump housing (suction oil pump)
(15) Oil pump shaft
(16) Oil feed line
(17) Oil pressure sensor
(18) Oil filter
(19) Pressure relief valve
912 Series
914 Series
Fig . 79-4

Rotax 914 series Specifications

General

Bore	79.5 mm
Stroke	61 mm
Compression Ratio	9.0:1
Cooling System	Liquid-cooled cylinder heads, air-cooled cylinders
Redline	5800 rpm
Engine Type	4-cylinder, 4-stroke
Fuel Type	Avgas 100LL
Oil System	Dry sump
Fuel System	fuel injection
TBO (Time Between Overhauls)	2000 hours
Displacement	1.211 liters (1211 cc)
Power Output	84.6 kW (115 hp) at 5, 800 rpm
