Rotax 914 series Maintenance Manual

79-00-00
page 24
May 01/2007
Effectivity 912/914 Series
Edition 1 / Rev. 0
d02628
BRP-Rotax
Maintenance Manual
Reassembly of the lines in reverse order.
■ CAUTION: Pay attention that the lines are fitted free of stress and without
scouring. Respect minimum distances, e.g. 2 mm (0.08 in.)
from housing.
■ CAUTION: On the 914 Series, it is important to ensure that a shim distance
ring (part no. 847224) is fitted between the cable clamp (14) and
the gearbox housing.
Tightening torques:
banjo bolts M10 - 17 Nm (150 in.lb)
banjo bolts M8 - 10 Nm (90 in.lb)
collar nuts (13) - 20 Nm (180 in.lb)
hex. screws M8x20 (14) - 15 Nm (135 in.lb)
(secure with LOCTITE 243).
screw plug M12x1 (16) - 25 Nm (18.5 ft.lb)
◆ NOTE: On configuration 2 and 3, a distance sleeve (15) 10.5/15/10 is
fitted instead of the governor oil line (1).

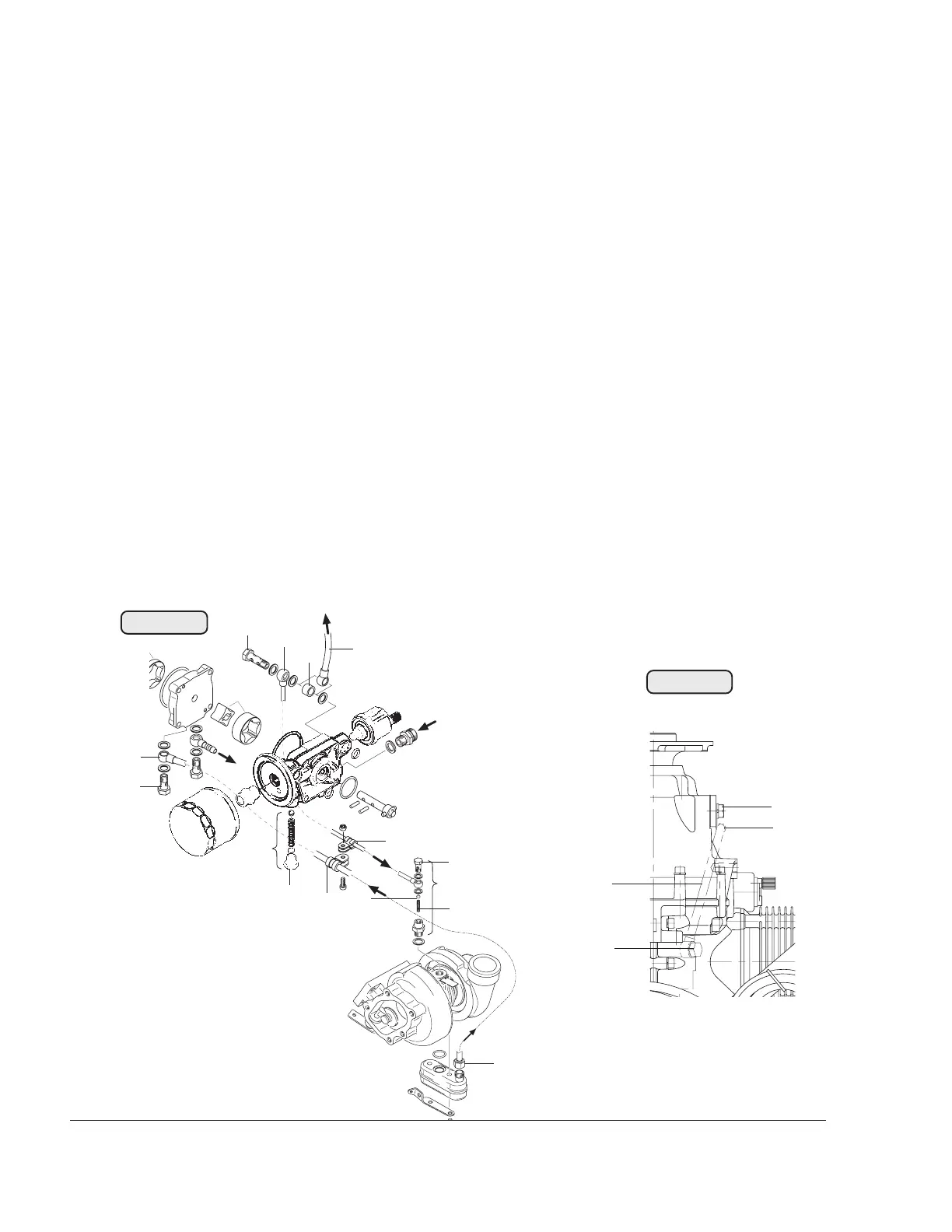

Fig. 79-18
00083
1
14
2
3
00082
zum hydr. Verstellregler
(optional)
to hydr. governor
Ölzulauf
oil inlet
zum Öltank
to oil tank
0-10
bar
16
13
15
11
12
6
7
8
9
10
1
4
5
Fig. 79-17

Rotax 914 series Specifications

General

Bore	79.5 mm
Stroke	61 mm
Compression Ratio	9.0:1
Cooling System	Liquid-cooled cylinder heads, air-cooled cylinders
Redline	5800 rpm
Engine Type	4-cylinder, 4-stroke
Fuel Type	Avgas 100LL
Oil System	Dry sump
Fuel System	fuel injection
TBO (Time Between Overhauls)	2000 hours
Displacement	1.211 liters (1211 cc)
Power Output	84.6 kW (115 hp) at 5, 800 rpm
