Rotax 914 series Maintenance Manual

80-00-00
page 8
May 01/2007
Effectivity 912/914 Series
Edition 1 / Rev. 0
d02629
BRP-Rotax
Maintenance Manual
3.2.2) HD starter

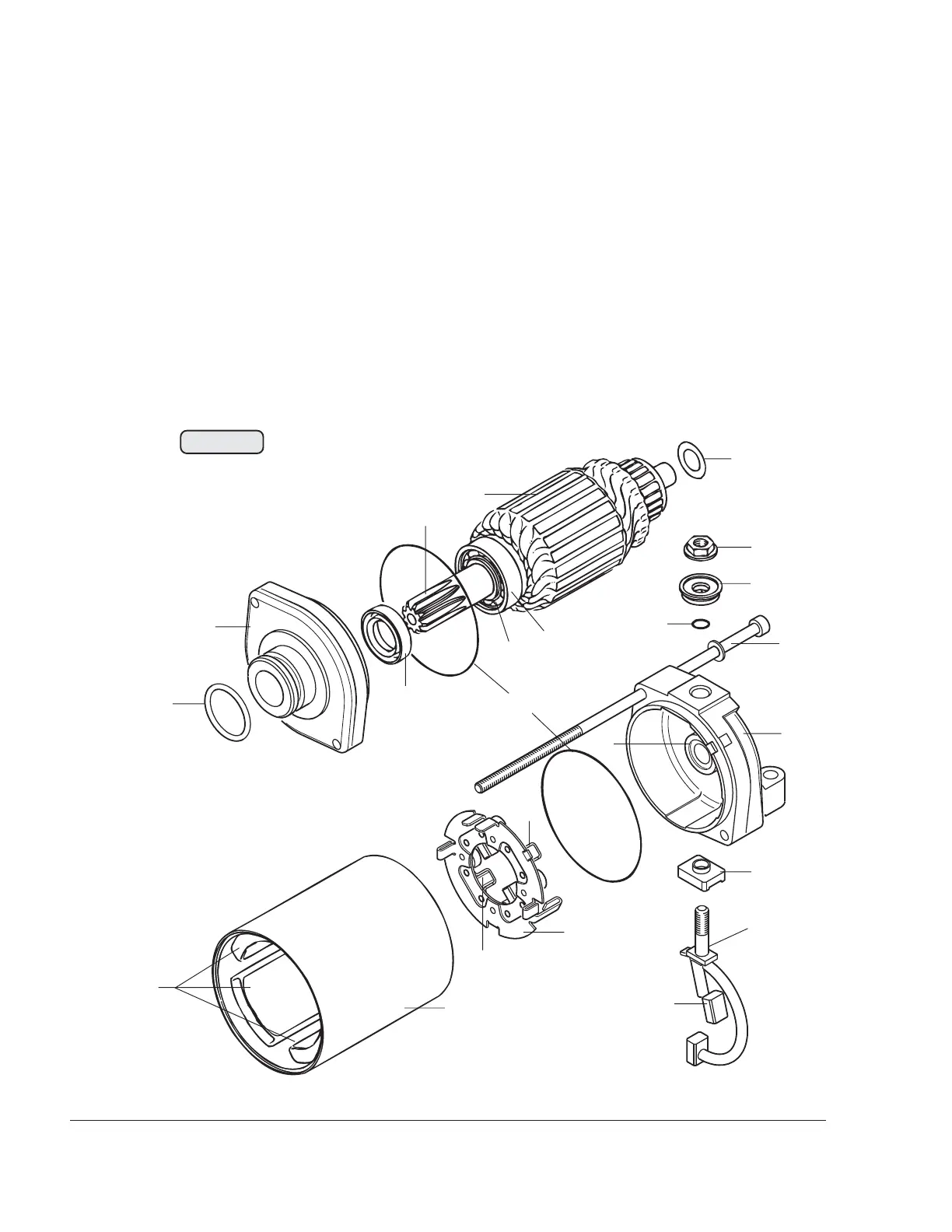

See Fig. 80-4
Unscrew combined nut (23) and remove connector sheath (17) with O-
ring (19). Unscrew allen screw (24) M5 and pull bearing flange (1) off
the starter housing (2). Carefully pull rotor bearing (3) a short way off
the starter housing and press the positive carbon brush (23) out of the
rotor bearing.
Remove brush holder (4) with the carbon brushes from the rotor (5).
Pull rotor out of the starter housing together with compensating shim
(6). Clean all parts thoroughly. See 00-00-00 sec. 10.3.
07735
19
20
1
23
17
10
12
5
6
13
3
19
14
16
23
4
17
18
2
14
21
11
24
Fig. 80-4

Rotax 914 series Specifications

General

Bore	79.5 mm
Stroke	61 mm
Compression Ratio	9.0:1
Cooling System	Liquid-cooled cylinder heads, air-cooled cylinders
Redline	5800 rpm
Engine Type	4-cylinder, 4-stroke
Fuel Type	Avgas 100LL
Oil System	Dry sump
Fuel System	fuel injection
TBO (Time Between Overhauls)	2000 hours
Displacement	1.211 liters (1211 cc)
Power Output	84.6 kW (115 hp) at 5, 800 rpm
