Rotax 914 series - Page 87

BRP-Rotax
Maintenance Manual
Effectivity 912/914 Series
Edition 1 / Rev. 0
72-00-00
page 19
May 01/2007
d02622
im Eingriff /
engaged
frei drehbar /
freely turning
00239
08205

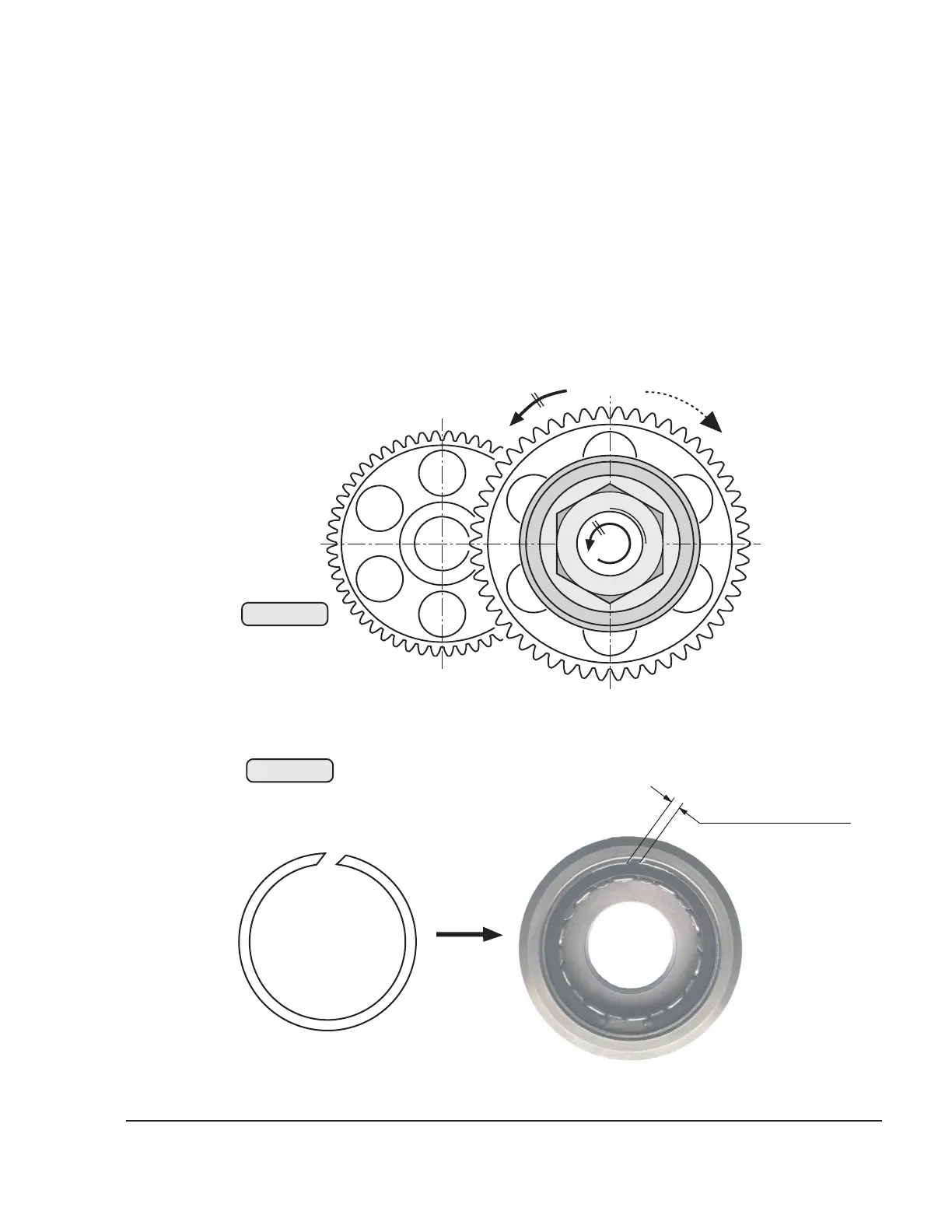

Fig. 72-14
Fig. 72-15
Secure degreased hex. nut M34x1.5 with LOCTITE 648 and tighten to
120 Nm (88.5 ft.lb).
◆ NOTE: Hex. nut with lefthanded thread.
■ CAUTION : Check axial clearance of free wheel gear, see
Fig. 72-10 and dimension (ES10) in 72-00-00 sec. 4.
70 (845425) 5 mm
68 (845420) 11 mm
