Rotax MMH-912 Series User Manual

BRP-Rotax
Maintenance Manual
72-00-00
page 50
July 01/2008
Effectivity 912/914 Series
Edition 1 / Rev. 2
d04351
◆ NOTE: Gearboxes without an overload clutch have no third
disc spring (17), centering rib or slipper clutch. Instead,
they are fitted with a second step collar, see Fig. 72-53.
■ CAUTION : If the disc springs are not well centered, the dog gear
cannot be depressed sufficiently to allow insertion of
ring halves. Do not increase the pressure, but remove
the clutch again and center the disc springs more
accurately.
◆ NOTE: Coat contact surfaces of disc springs and dogs as well
as the tooth profile of propeller shaft with LOCTITE
Anti-Seize.

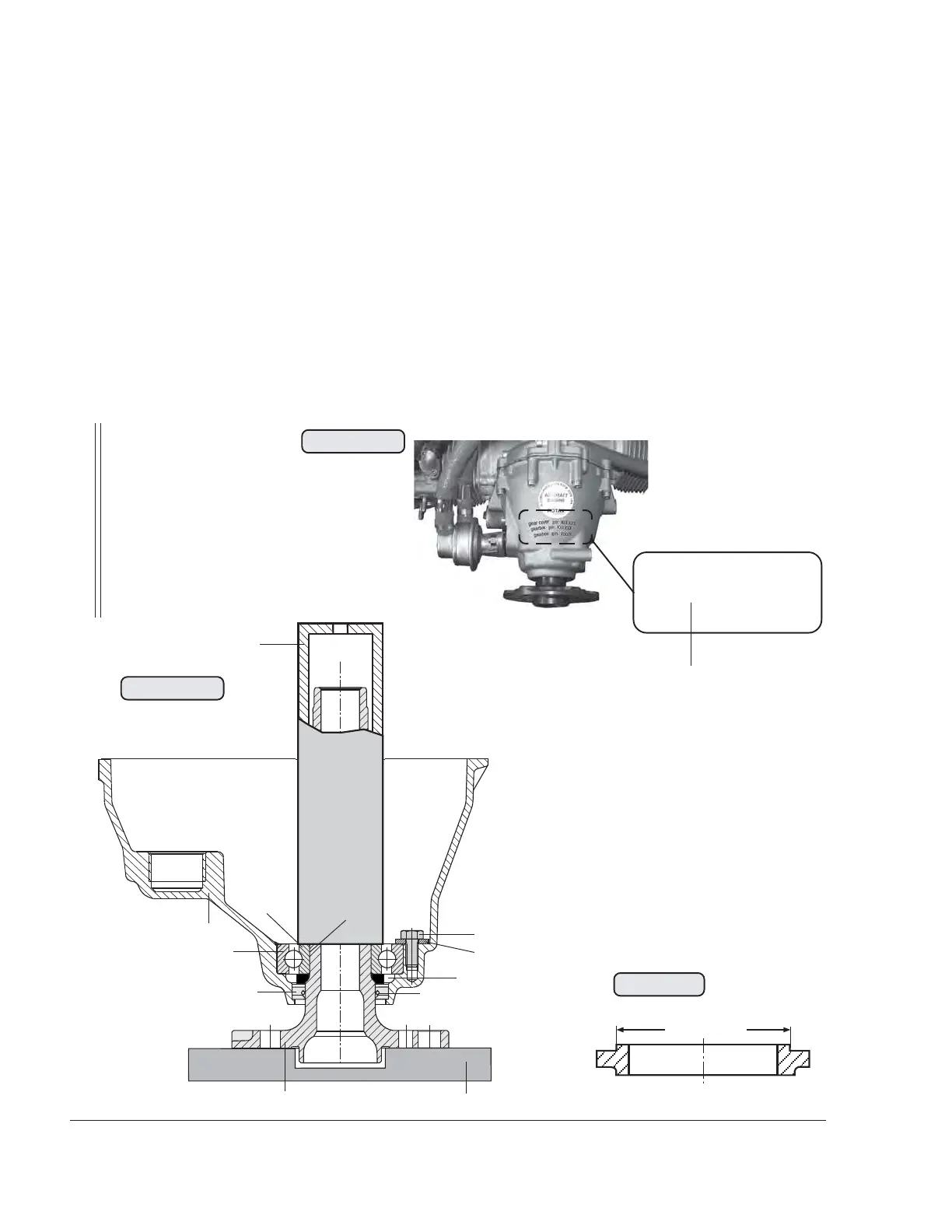

Fig. 72-51
ø 40,8 mm
1,606 in.
00276
Fig. 72-52
Fig. 72-51/1
gear cover p/n XXXXXX
gearbox p/n XXXXXX
gearbox s/n XXXXX
part no. (6 digit)
07705
1
2
3
4
5
6
7
8
9
11
12
10
