3.6) Sprag clutch
See Figs. 72-10 and 72-12.
After removing the fly wheel hub and the ignition housing, see 72-00-00 sec. 3.1
and 72-00-00 sec. 3.4, measure the axial clearance (ES10) of the free wheel
gear (6).
See 72-00-00 sec. 4.
◆ NOTE: If there is no or too little axial clearance, the sprag clutch may not
disengage and the electric starter may be damaged.
Maß
dim.
00235
ES10
6

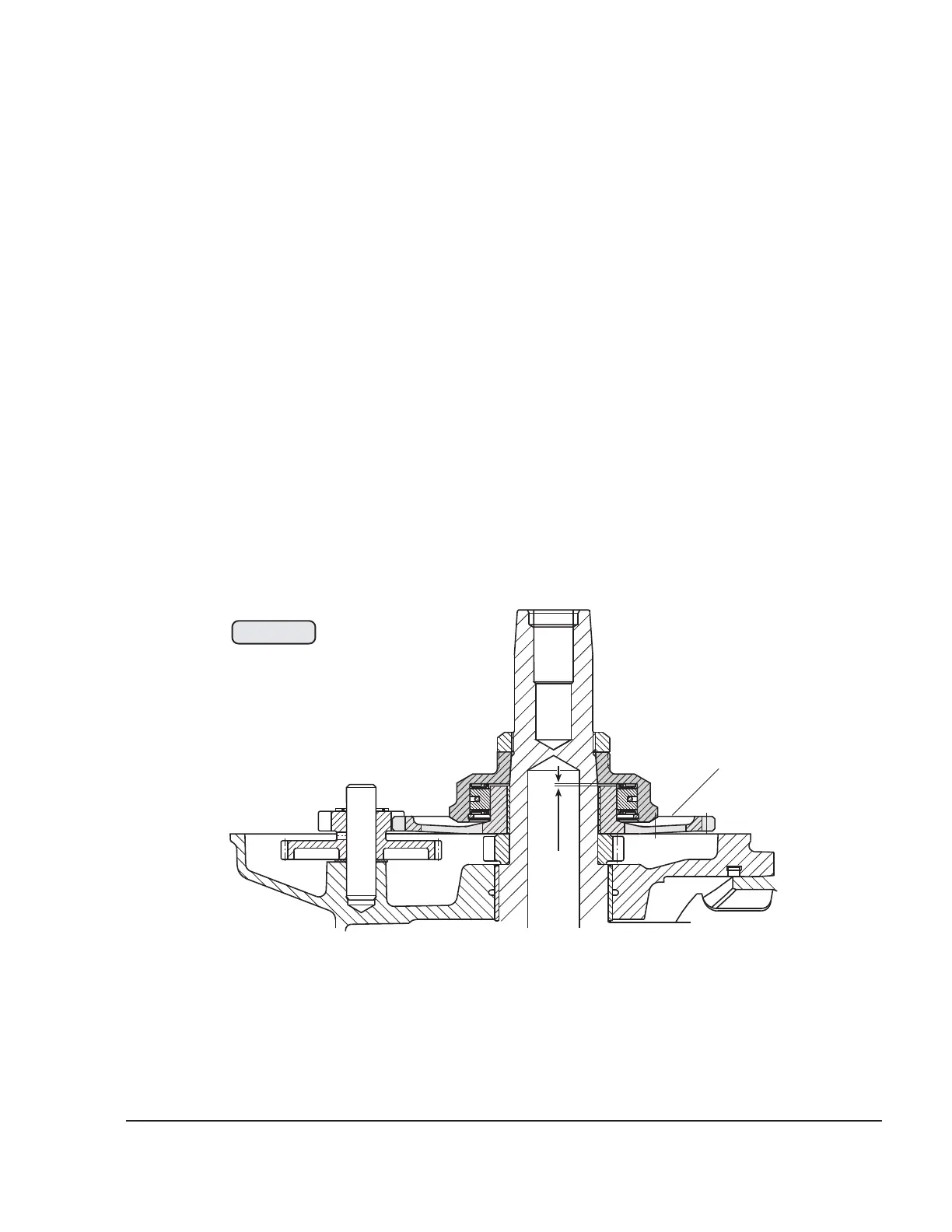

Fig. 72-10
