3.8) Purging of lubrication system
See the corresponding section in the respective Maintenance Manual (Line
Maintenance) for the engine type, 912 Series or 914 Series.
3.9) Temperature- and pressure observation
See the corresponding Maintenance Manual (Line Maintenance) for the respec-
tive engine type, 912 Series or 914 Series.
◆ NOTE: The engines of the 912 Series and 914 Series have several
temperature control points. Refer to wiring diagram in Opera-
tors Manual.
3.9.1) Oil temperature sensor
See Fig. 79-19
The sensor (1) for oil temperature measurement is screwed into the oil
pump housing. The sensor is an NTC resistor and identical with the two
sensors for the cylinder head temperature.
The max. operating temperatures must not be exceeded. In the event
of temperature rise above the limit, check the following:
- the oil system (see corresponding Maintenance Manual (Line
Maintenance) for the respective engine type, 912 Series or 914
Series.)
- temperature sensor
- indicating instrument
- wiring connections
- sensor cable.
◆ NOTE: Grounding connection of the sensors direct via the oil
pump housing.
Fit sensor. See 79-00-00 sec. 3.1.
TO
00226

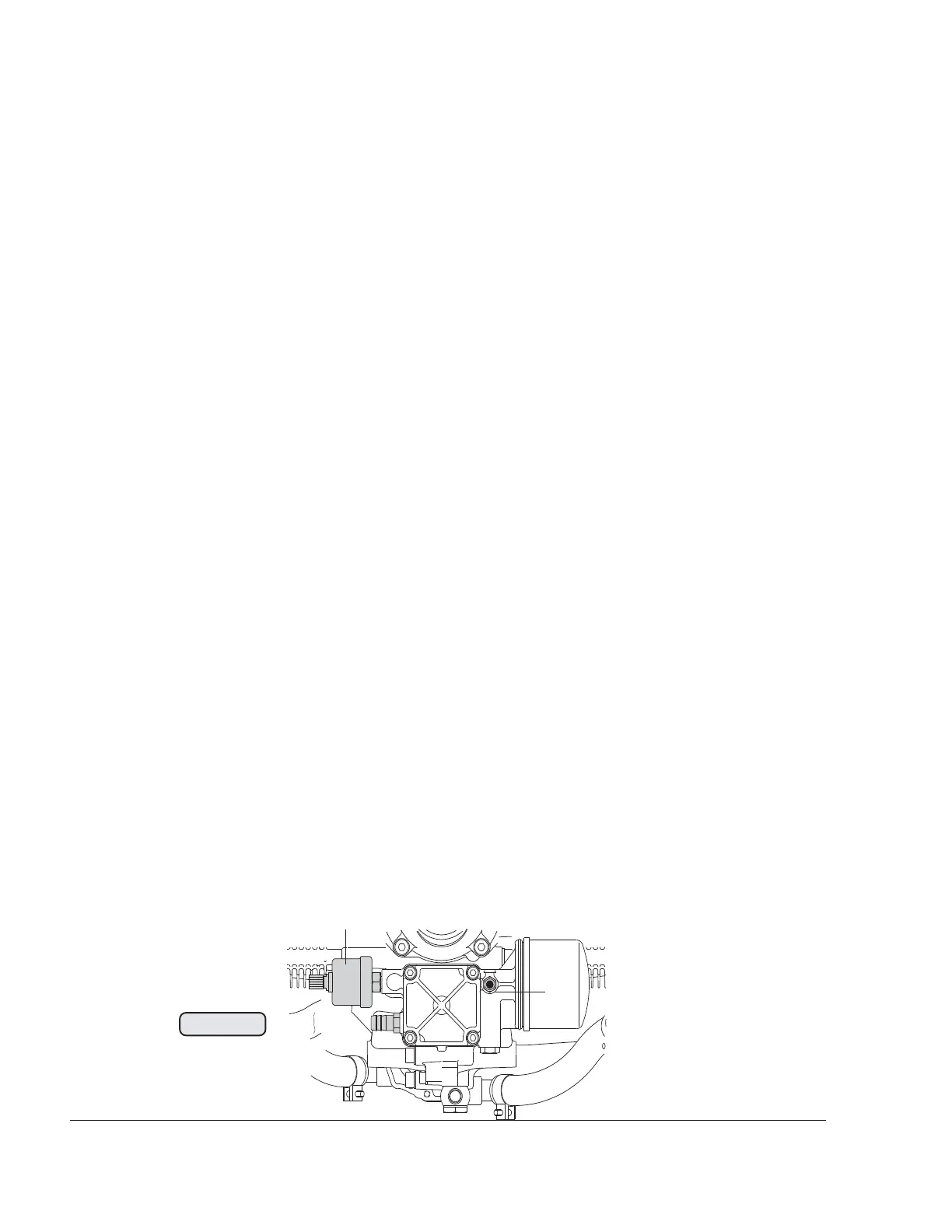

Fig. 79-19
1
2
