Rotax MMH-912 Series - 3.4) Oil tank

79-00-00
page 22
May 01/2007
Effectivity 912/914 Series
Edition 1 / Rev. 0
d02628
BRP-Rotax
Maintenance Manual
00077

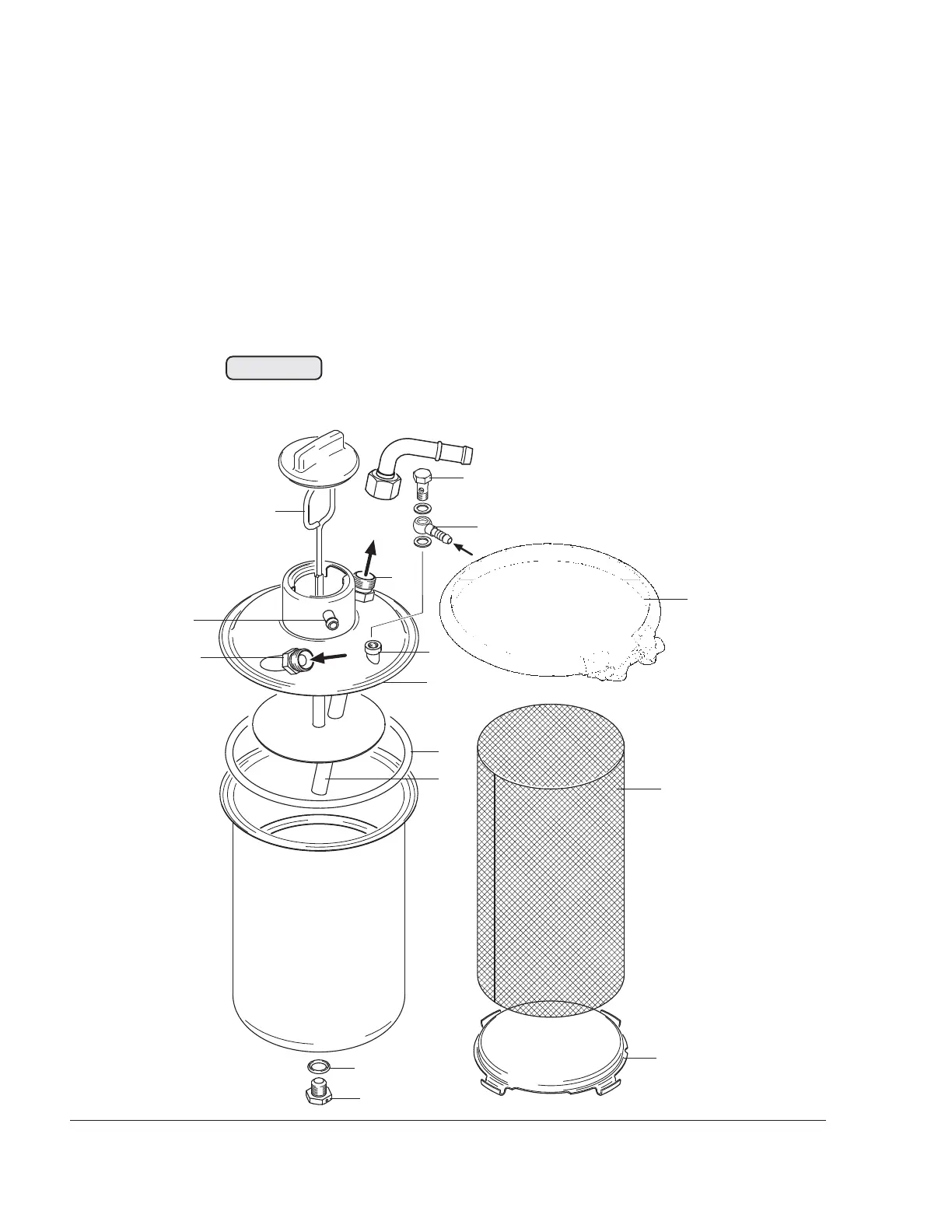

Fig. 79-16
3.4) Oil tank
See Fig. 79-19
Detach oil lines. Remove banjo bolt (1) M10 and remove ring hose nipple (2) with
sealing rings 10x14.
See latest Maintenance Manual "Line Maintenance“ for the respective engine
type.
