3.2) Governor removal and inspection
See Fig. 72-34 in 72-00-00.
■ CAUTION : Observe the governor manufacturers specifications for mainte-
nance and repairs!
Unscrew the 3 allen screws (16) M8x40 and the 1 allen screw (17) M8x35 and
remove together with the lock washers. Remove the governor with the gasket.
◆ NOTE: The screwing can be different depending on the type of gover-
nor. See SB-912-052 and/or SB-914-035, “ Installation / Use of
governor“, latest issue.
3.3) Removal of the fly wheel hub
See Fig. 72-4
Remove hex. screw M16x1.5 (1). Place protection piece part no. 877410 on the
crankshaft, screw puller part no. 877375 down fully and press off the fly wheel
hub (2) with the hex. screw.

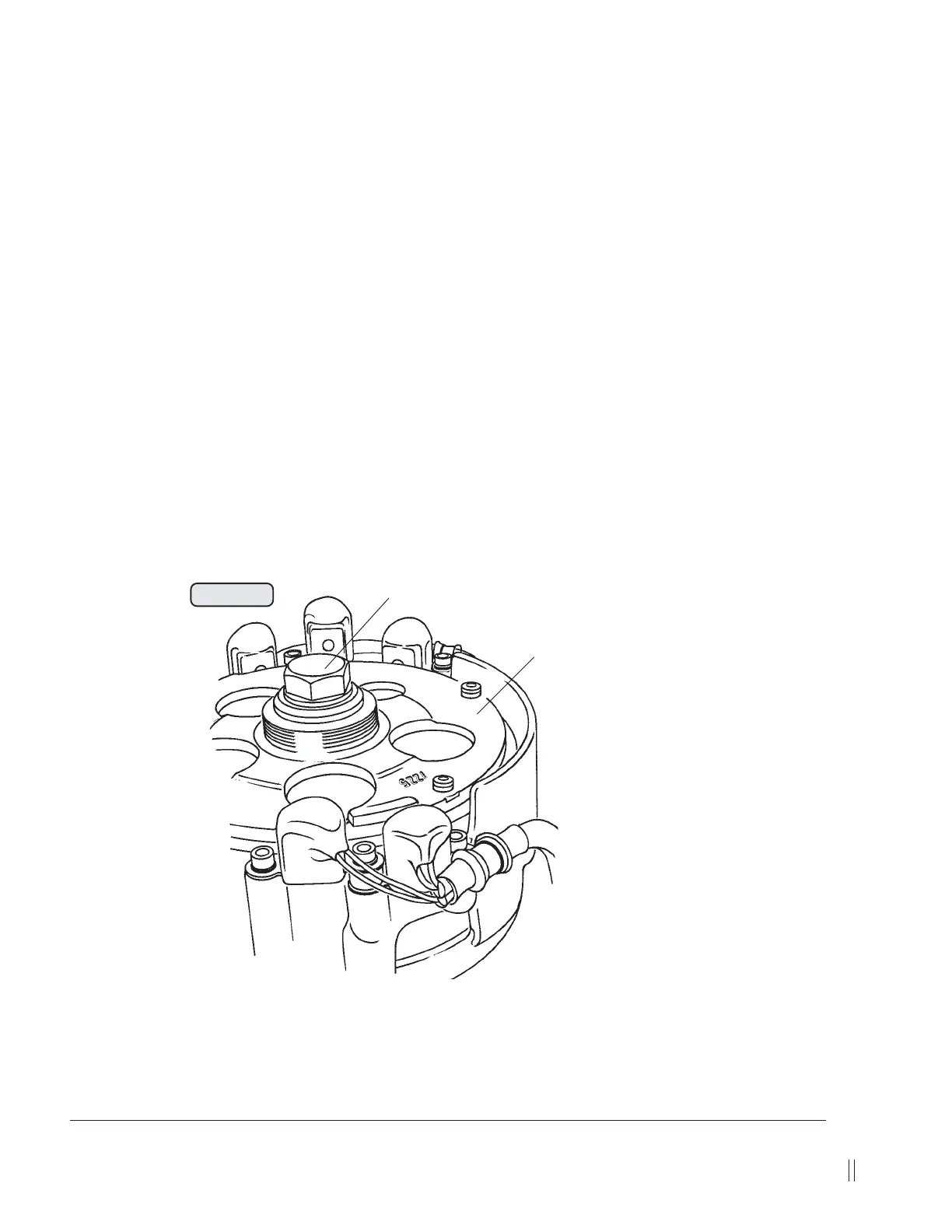

Fig. 72-4
00344
1
2
