3.7) Reduction gear for electric starter
See Fig. 72-16.
Place thrust washer (1) 12.5/21.5/1 on the crankcase. Place interme-
diate gear (2) in position, oil intermediate gear shaft (3) and push into
position. Place thrust washer (4) 12.5/21.5/1 on top.
Check the geartooth system of the intermediate gear (5). If the gear-
tooth system is deformed, the intermediate gear must be replaced.
◆ NOTE: If the teeth of the intermediate gear are deformed, a
noise will be produced when the engine is started.
00240
3
4
2
1

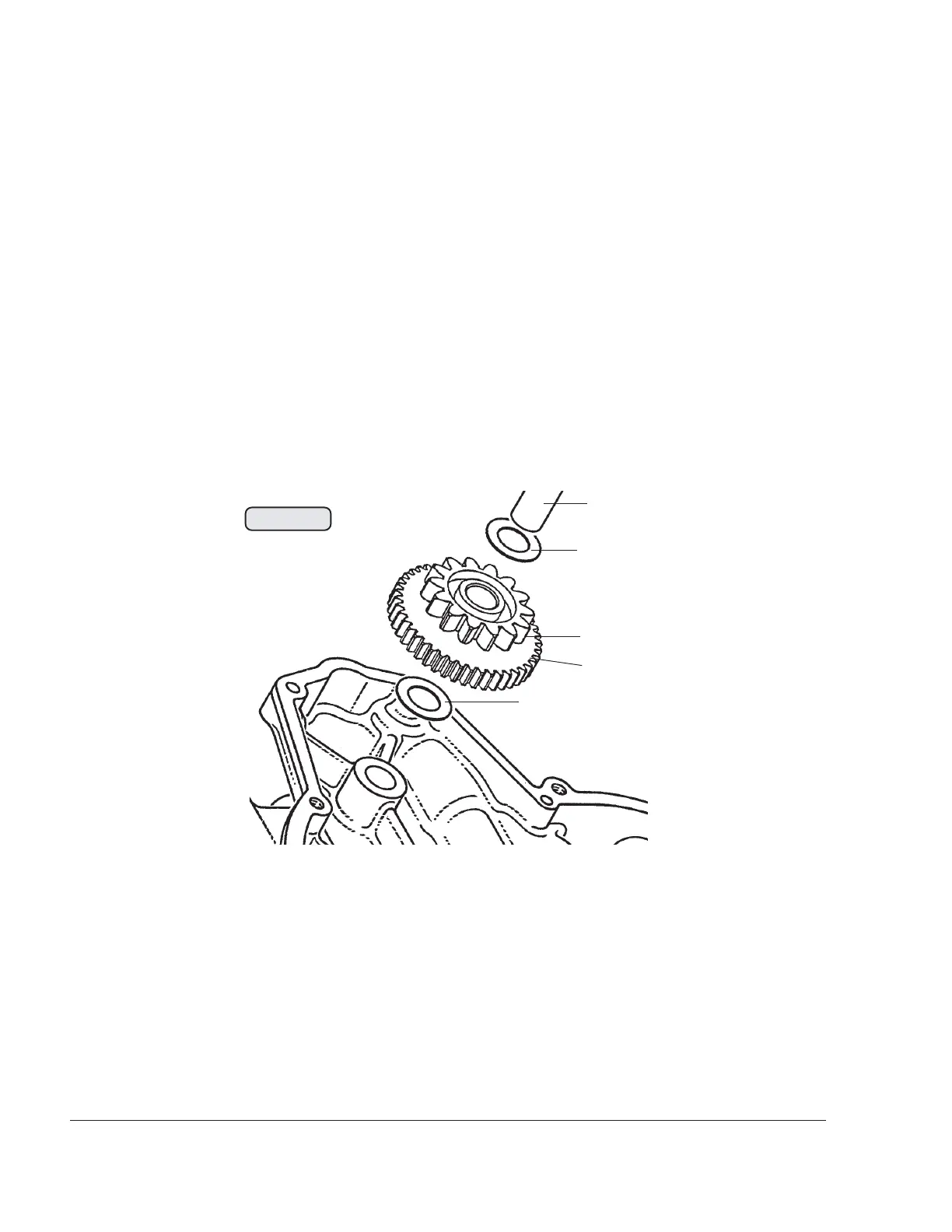

Fig. 72-16
5
