Effectivity 914 Series
Edition 1 / Rev. 0
76-00-00
page 31
May 01/2007
d02626
BRP-Rotax
Maintenance Manual
3.1.1.7) Recalibration of the throttle position

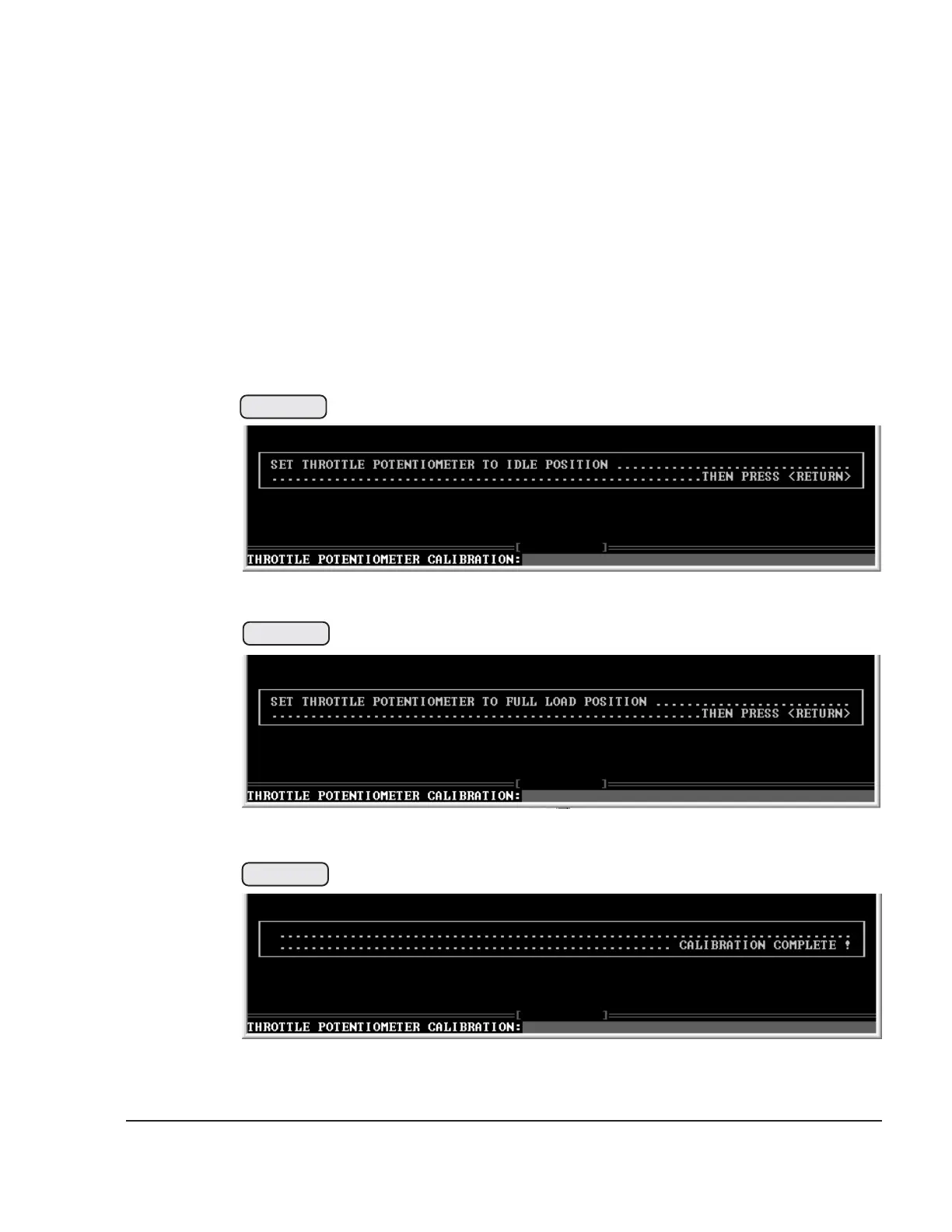

See Figs. 76-26, 76-27 and 76-28.
- Start up of the sub program THROTTLE.
- Check whether the throttle valve (carburetor 2/4) can be
fully opened and closed. Verify that the Bowden cables
allow the complete travel from stop to stop.
- Follow the instructions on the display, i.e.:
- Close the throttle valve completely (carb 2/4) and confirm
with ENTER.
- Calibration data will be transferred automatically and the
calibration takes place.
- Fully open the throttle valve (carb 2/4) and confirm with
ENTER.
- Verification of the throttle position as per section 76-00-00
/ 3.1.1.6 .
Fig. 76-26
03071
03072
03073
Fig. 76-27
Fig. 76-28
