Rotax MMH-912 Series User Manual

Effectivity 912/914 Series
Edition 1 / Rev. 0
80-00-00
page 7
May 01/2007
d02629
BRP-Rotax
Maintenance Manual
3.2) Electric starter — disassembly
3.2.1) Standard starter

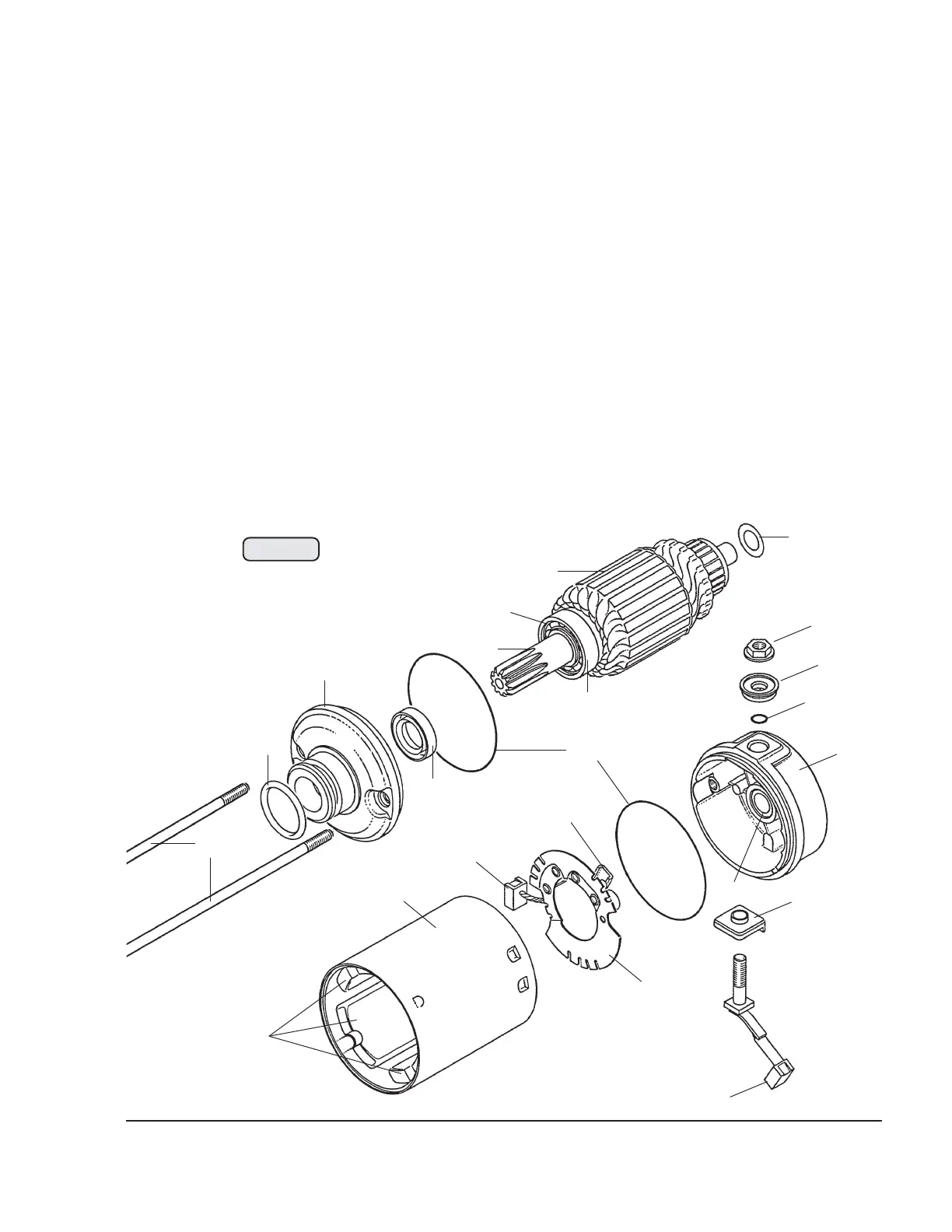

See Fig. 80-3
Unscrew combined nut (23) and remove connector sheath (17) with O-
ring (19). Pull bearing flange (1) off the starter housing (2). Carefully pull
rotor bearing (3) a short way off the starter housing and press the
positive carbon brush (23) with the connector sheath (17) out of the
rotor bearing.
Remove brush holder (4) with the carbon brushes from the rotor (5).
Pull rotor out of the starter housing together with compensating shim
(6). Clean all parts thoroughly. See 00-00-00 sec. 10.3.
00231
22
19
20
1
23
17
10
12
5
6
13
3
19
14
15
4
17
21
18
2
14
11
Fig. 80-3
