Rotax MMH-912 Series - 3.3.3) Individual components of the carburetor (on the 912 Series)73-00-00; 25

Effectivity 912 Series
Edition 1 / Rev. 2
page 25
July 01/2008
d04352
73-00-00
BRP-Rotax
Maintenance Manual

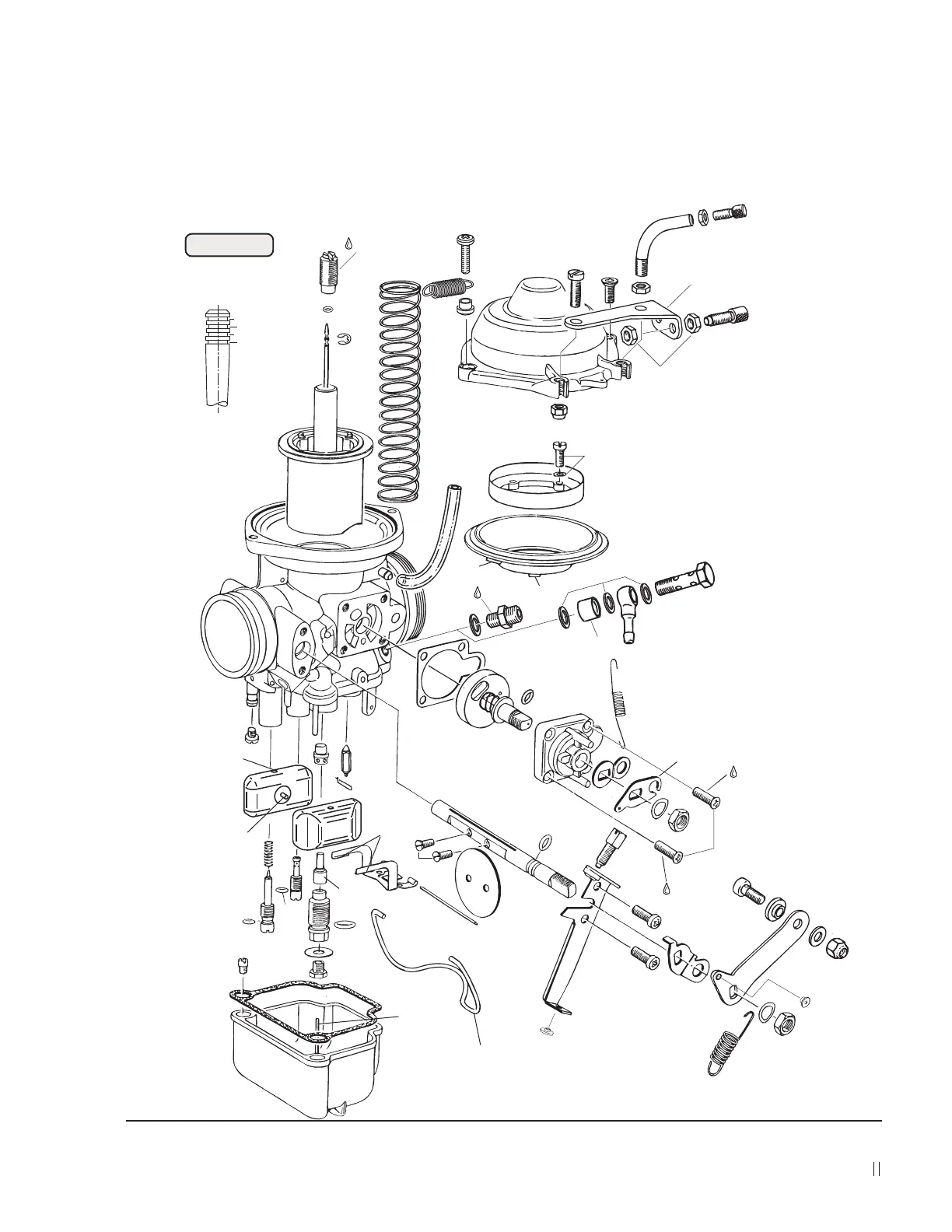

3.3.3) Individual components of the carburetor (on the 912 Series)
See Illustrated Parts Catalog Rotax 912/914
A
A
A
A
Nadelposition (needle position)
1
4
3
2
07088
18
25
26
27
28
29
30
34
35
36
37
38
24
23
22
13
14
15
16
17
18
8
10
11
12
4
5
6
7
1
2
3
39
Fig. 73-13
