3.8) Dual ignition coil
See Figs. 74-13 and 74-14.
If the failure of a single resistance spark plug or 2 resistance spark plugs is
noticed, check the connections and the resistance values of the respective dual
ignition coil, see 74-00-00 sec. 3.12
The iron core (1) must not be loose. If required, replace the dual ignition coil. In
this case, the following dismantling work must be performed, see 74-00-00 sec.
3.15 and 3.16. See SI-912-013 and SI-914-016,“Standardization of the ignition
unit“, latest issue.
Measure the resistance with a multimeter.
See 74-00-00 sec. 3.12 and 74-00-00 sec. 5.
00401

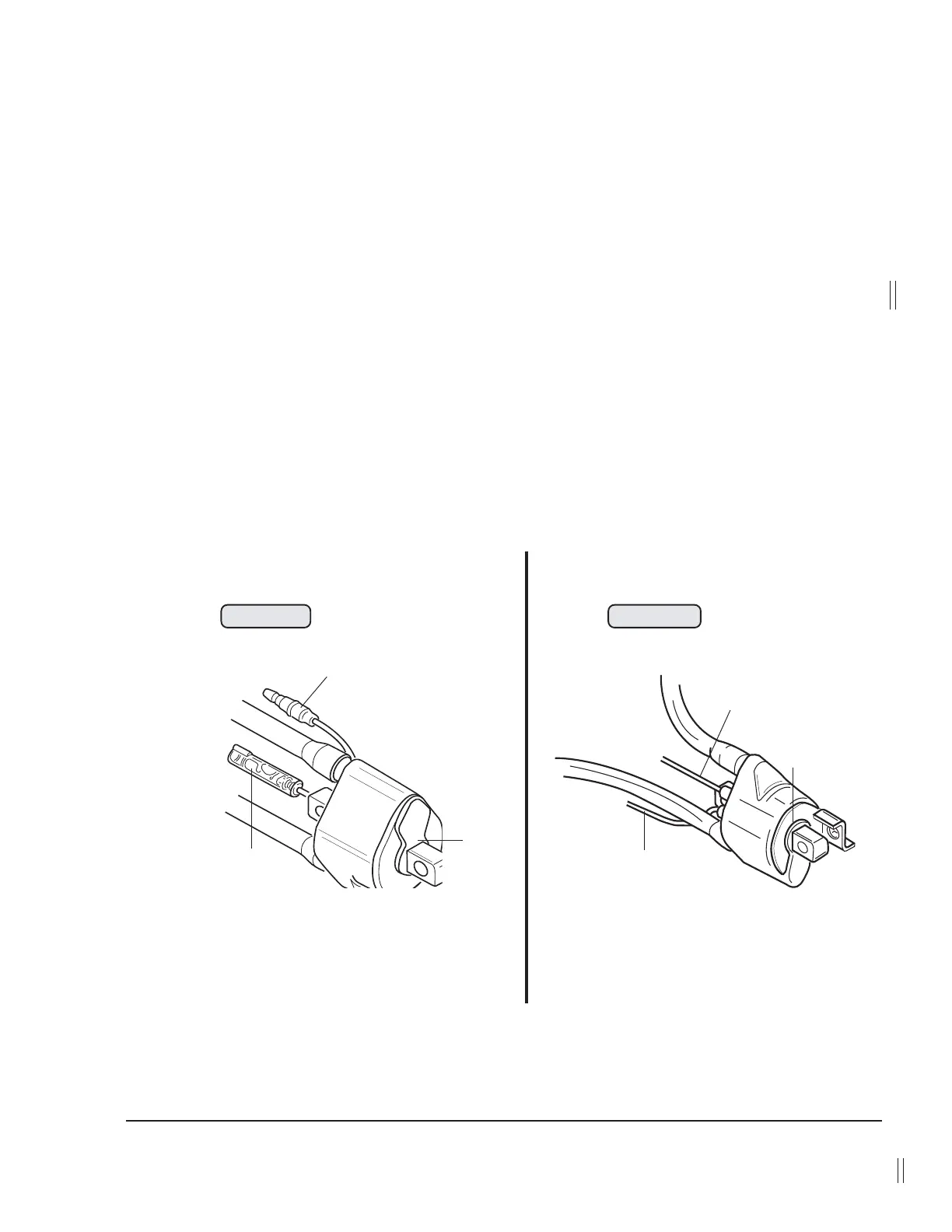

Older engine models New engine models
07726
1
1
Fig. 74-13
Fig. 74-14
to electronic module
to ground
to electronic module
to ground
