Effectivity 914 Series
Edition 1 / Rev. 0
76-00-00
page 37
May 01/2007
d02626
BRP-Rotax
Maintenance Manual
3.1.2.4) Throttle potentiometer
See Figs. 76-32, 76-33, 76-34, 76-35, 76-36, 76-37, 76-38 and
76-39.
The throttle potentiometer (1) is installed on constant depres-
sion carburetor 2/4.
The turning range when installed is from 0% - 115%.
◆ NOTE: The throttle potentiometer is fitted on older
and newer versions. See Figs. 76-34, 76-36
and 76-37.
See Figs. 76-37, 76-00 and 2-00.
For the following measurements, unplug connection with
wiring harness but reconnect immediately after completion of
the check and verify tight fit and engagement of catch.
If the throttle potentiometer was removed from the carburetor
for checking, then verification of the throttle valve position via
the communication program will be necessary. See 76-00-00
sec. 3.1.
If this aid is not at your disposal, an engine test run has to be
performed. See the corresponding Maintenance Manual (Line
Maintenance) for the respective engine type, 912 Series or
914 Series. Engine operation is only permissible for trans-
fer to the nearest maintenance facility, where this check has
to be performed afterwards.
100%
115%
0%
open
closed

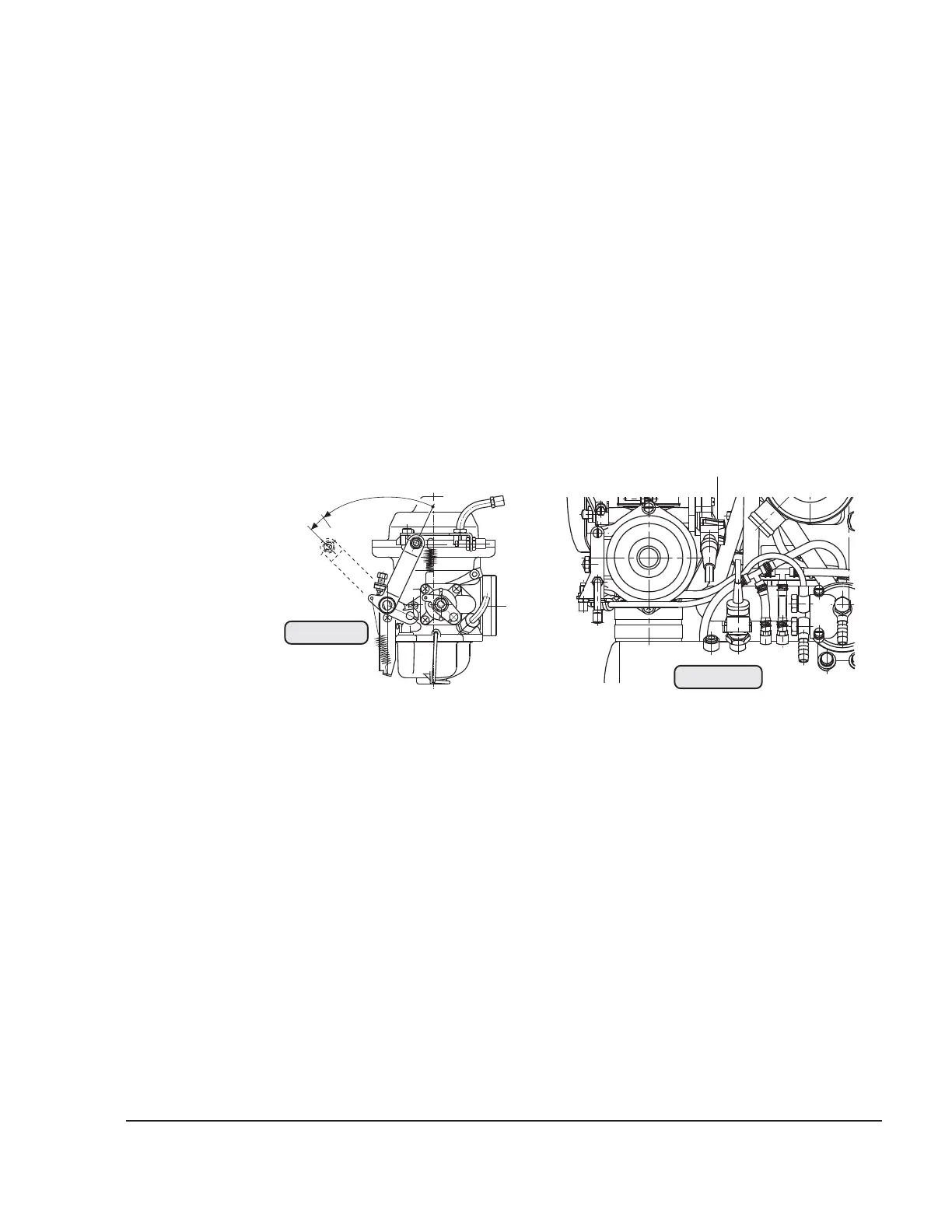

Fig. 76-32
1
00056
Fig. 76-33
