Rotax MMH-912 Series User Manual

73-00-00
page 4
May 01/2007
Effectivity 912 Series
Edition 1 / Rev. 0
d02623
BRP-Rotax
Maintenance Manual

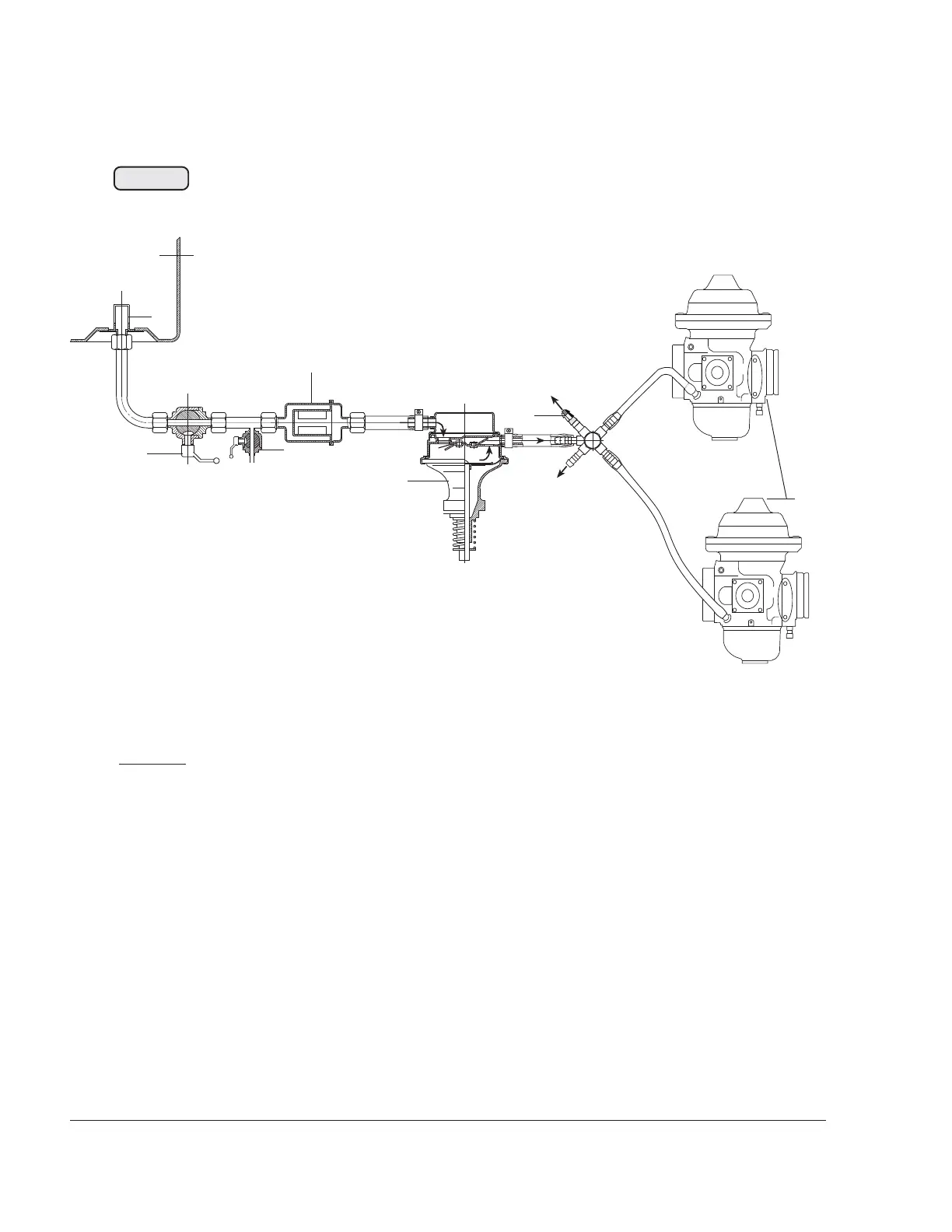

Legend:
(1) inlet from the tank
(2) coarse filter
(3) fire cock
(4) water drain cock
(5) fine filter
(6) mechanical fuel pump
(7) carburetors
(8) return line to tank
zum Manometer /
to fuel pressure gauge
zum Tank
to fuel tank
00535
Fig. 73-1
6
7
8
1
2
34
5
