Rotax MMH-912 Series User Manual

Effectivity 912/914 Series
Edition 1 / Rev. 2
74-00-00
page 47
July 01/2008
d04353
BRP-Rotax
Maintenance Manual
07728
00089
IH03
IH02
Fig. 74-28
On older engine models
(discontinued)
4
3
2
1
08450
07139
23
22
21

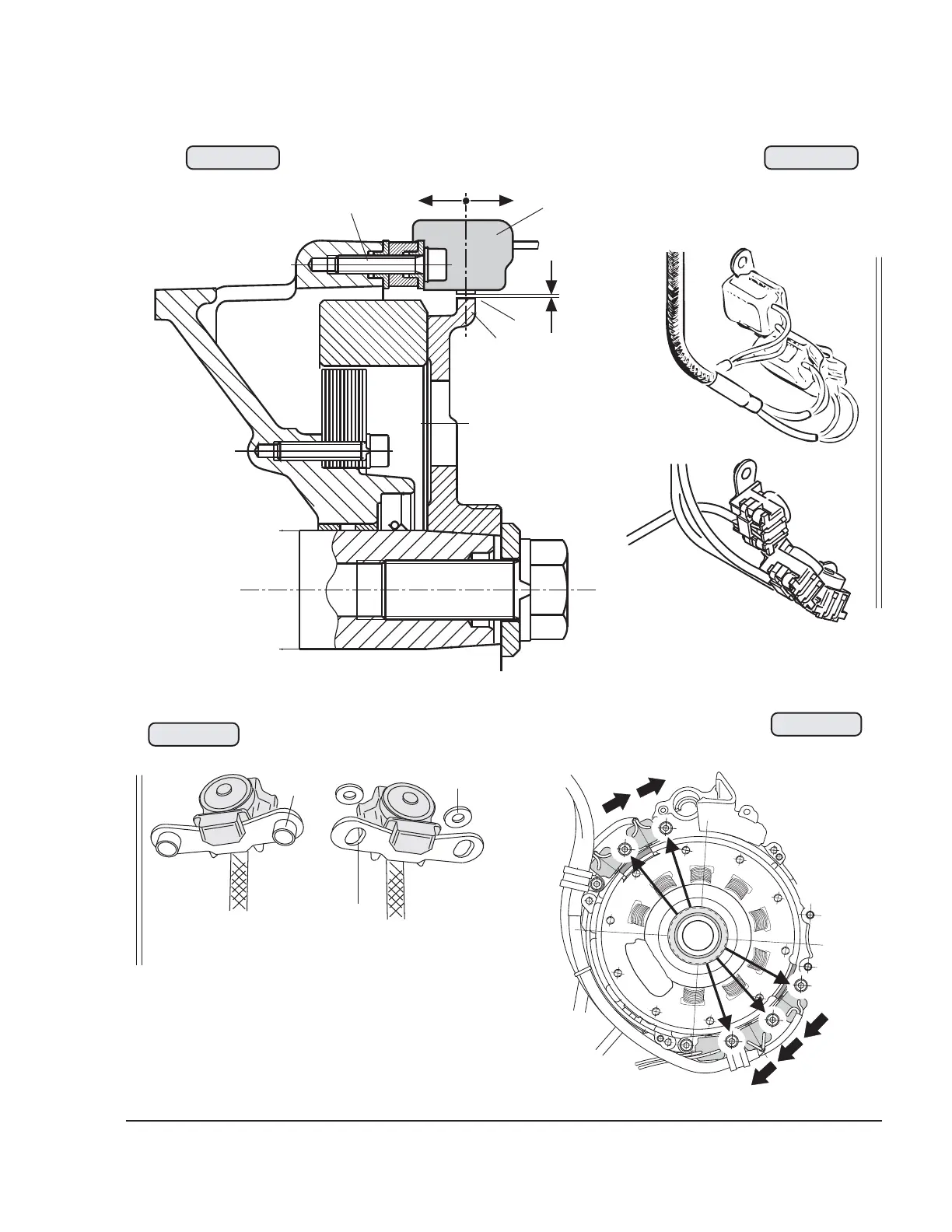

Trigger coil alignment
Fig. 74-29
Fig. 74-30
Fig. 74-31
23
07728
On new engine models
(„clip on pickup“)
„Old“
„New“
