Effectivity 912/914 Series
Edition 1 / Rev. 0
78-00-00
page 9
May 01/2007
d02627
BRP-Rotax
Maintenance Manual
Exhaust manifold:
◆ NOTE: There is no need to disassemble the complete unit of muffler -
turbocharger - exhaust manifold for the removal of the muffler
bracket.
The exhaust manifold (22) is directly attached to the turbine housing by means
of allen screws (23) M8x25 and nuts (24) and to the holder (26) by means of allen
screw M8x50 (25).
Exhaust bracket:
◆ NOTE: There is no need to disassemble the complete unit of exhaust
- turbocharger - exhaust manifold for the removal of the muffler
bracket.
Remove allen screw (27) M10x50 along with the lock washer and washer.
Also, detach connection (28) of exhaust bracket with engine suspension frame
(not supplied with the engine).
Remove distance sleeve (29) 10.5/17/15 from the arm of the engine suspension
frame.

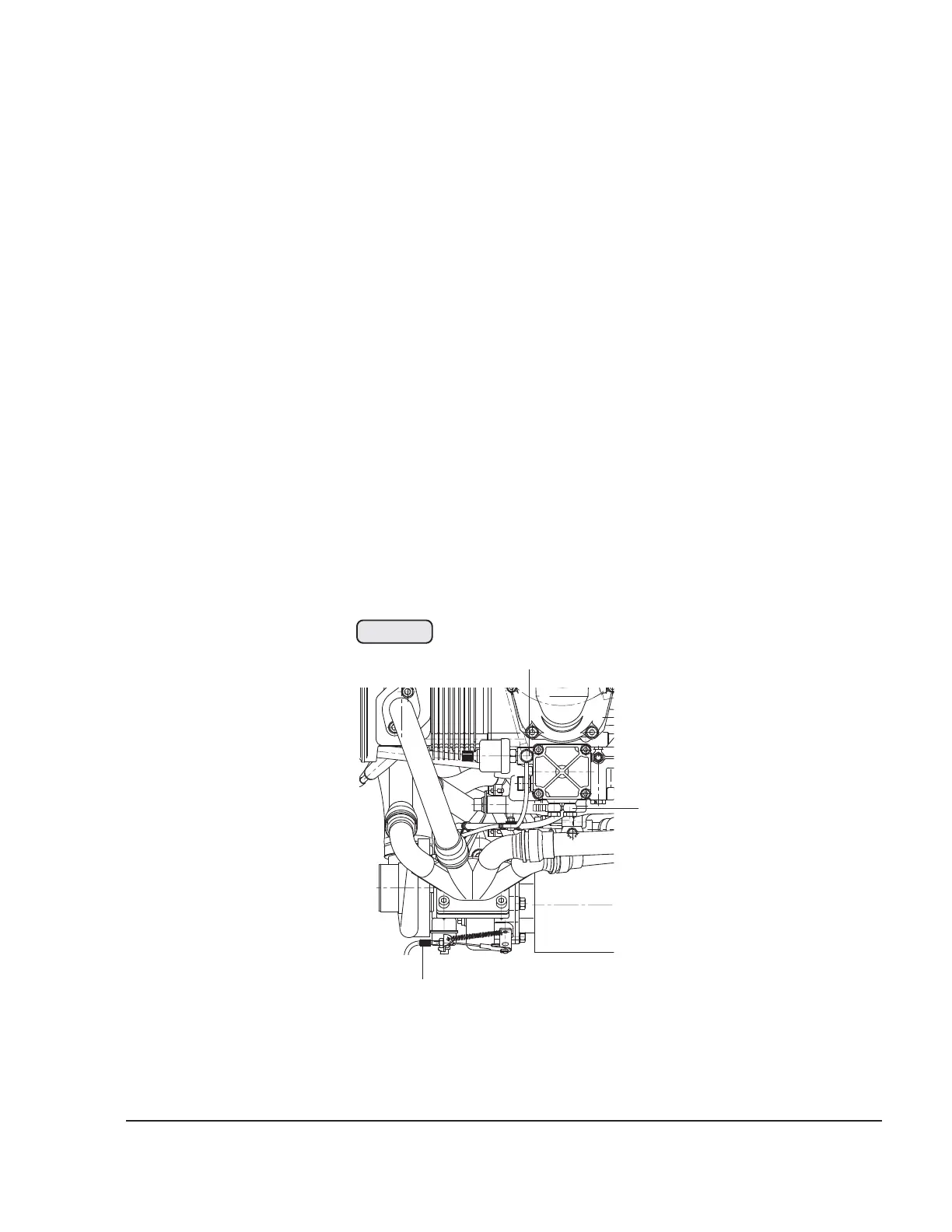

Fig. 78-2
00160
11
4
5
