Rotax MMH-912 Series User Manual

71-00-00
page 6
May 01/2007
Effectivity 912 Series
Edition 1 / Rev. 0
d02621
BRP-Rotax
Maintenance Manual

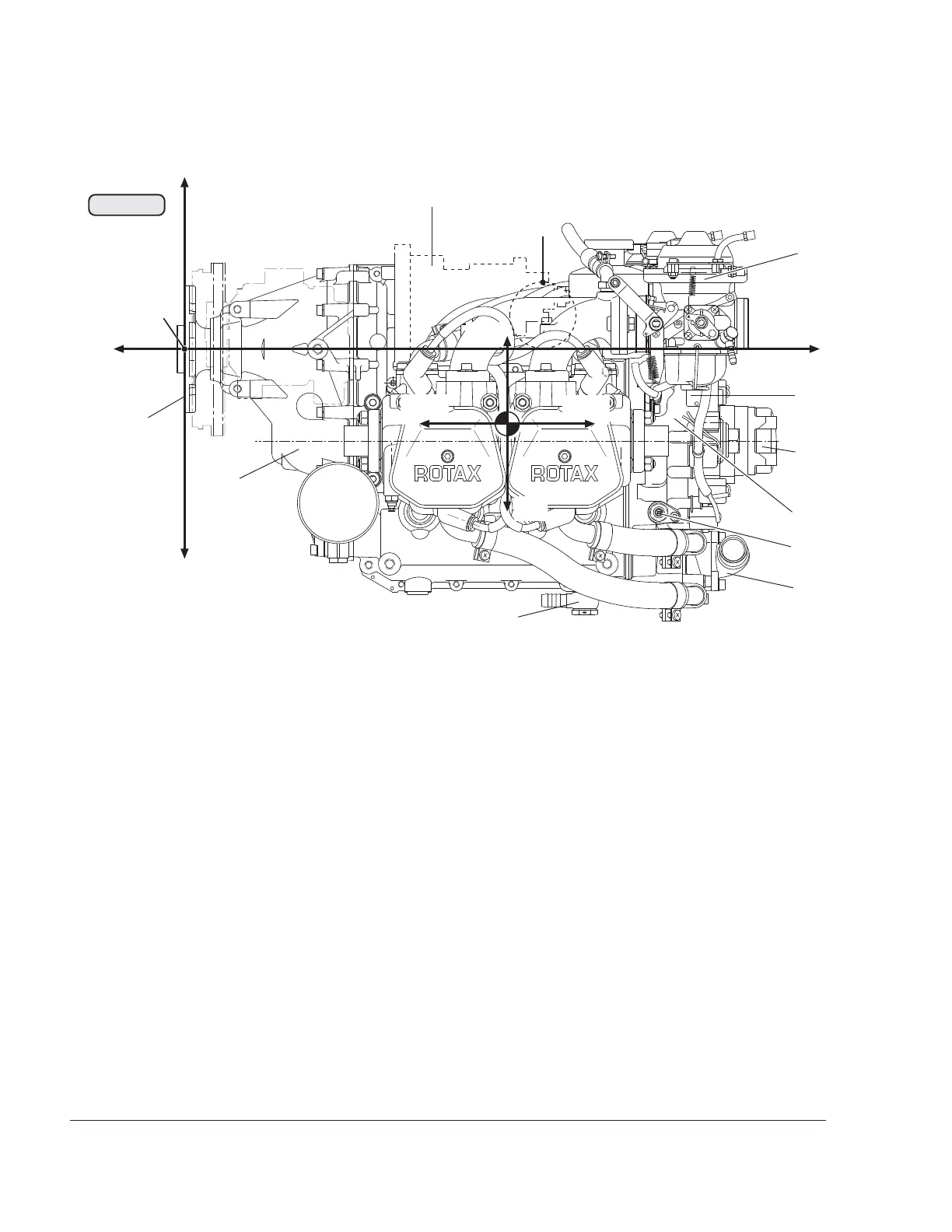

(1) Engine number
(2) Propeller flange
(3) Propeller gearbox
(4) Vacuum pump or hydraulically controlled
constant speed propeller governor
(5) Intake manifold
(6) Ignition housing
(7) Constant depression carburetor
(8) Airbox (optional)
(9) Engine suspension frame (optional)
(10) Coolant pump
(11) Expansion tank
(12) Oil pump
(13) Connection for oil return line (engine)
(14) Oil filter
(15) Electric starter
(16) Electronic module
(17) Compensation tube
( 18) Oil pressure sensor
( 19) Oil temperature sensor
(20) 2x sensor for cylinder head temperature
(21) Connection for mechanical
rev counter
(22) Oil tank
( 23) External alternator
(24) Magnetic plug
(25) Fuel pump
00502
912 Series
Fig . 71-1
+z
-z
+x
-x
P
AS
MS
A
+z1
-x1
+x1
-z1
3
1
4
2
6
7
10
13
15
21
Side view Cyl. 2-4
