11
4 INSTALLATIE

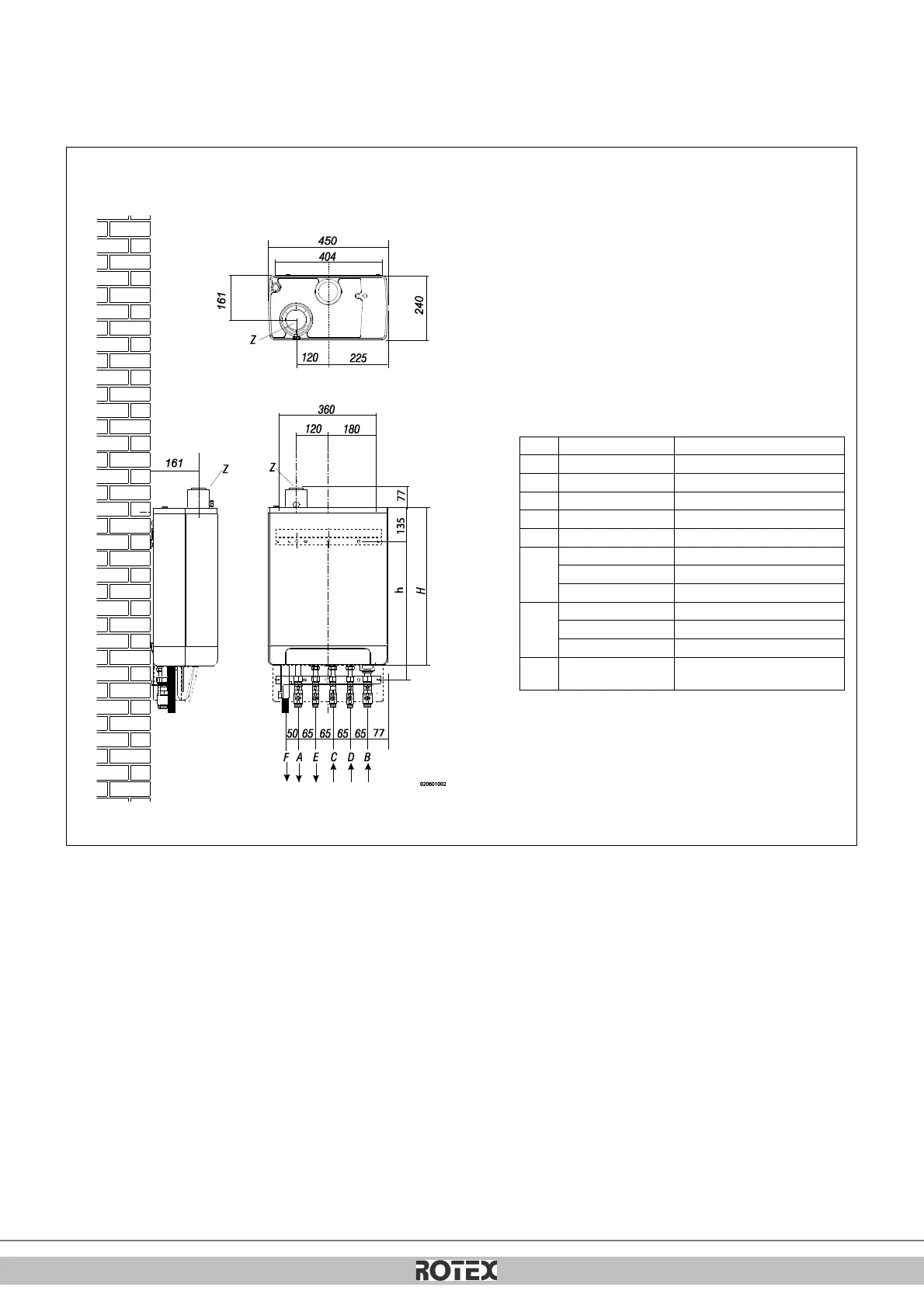

4.1 Inbouwmaten
Toestel met leidingen naar onderen aangesloten:
Toestel + montagebeugel
A =
Aanvoer CV
G ¾” (ext)
B =
Retour CV
G ¾” (ext)
C =
Gas
G ½” (int)
D =
Tapwater koud
G ½” (ext)
E =
Tapwater warm
G ½” (ext)
F =
Condensafvoer
Ø dn25 (flexibel)
h=
517mm
RKOMBG22AAV1
577mm
RKOMBG28AAV1
637mm
RKOMBG33AAV1
H=
590mm
RKOMBG22AAV1
650mm
RKOMBG28AAV1
710mm
RKOMBG33AAV1
Z =
Rookgasafvoer/lucht
toevoer
Ø60/100 (concentrisch)
