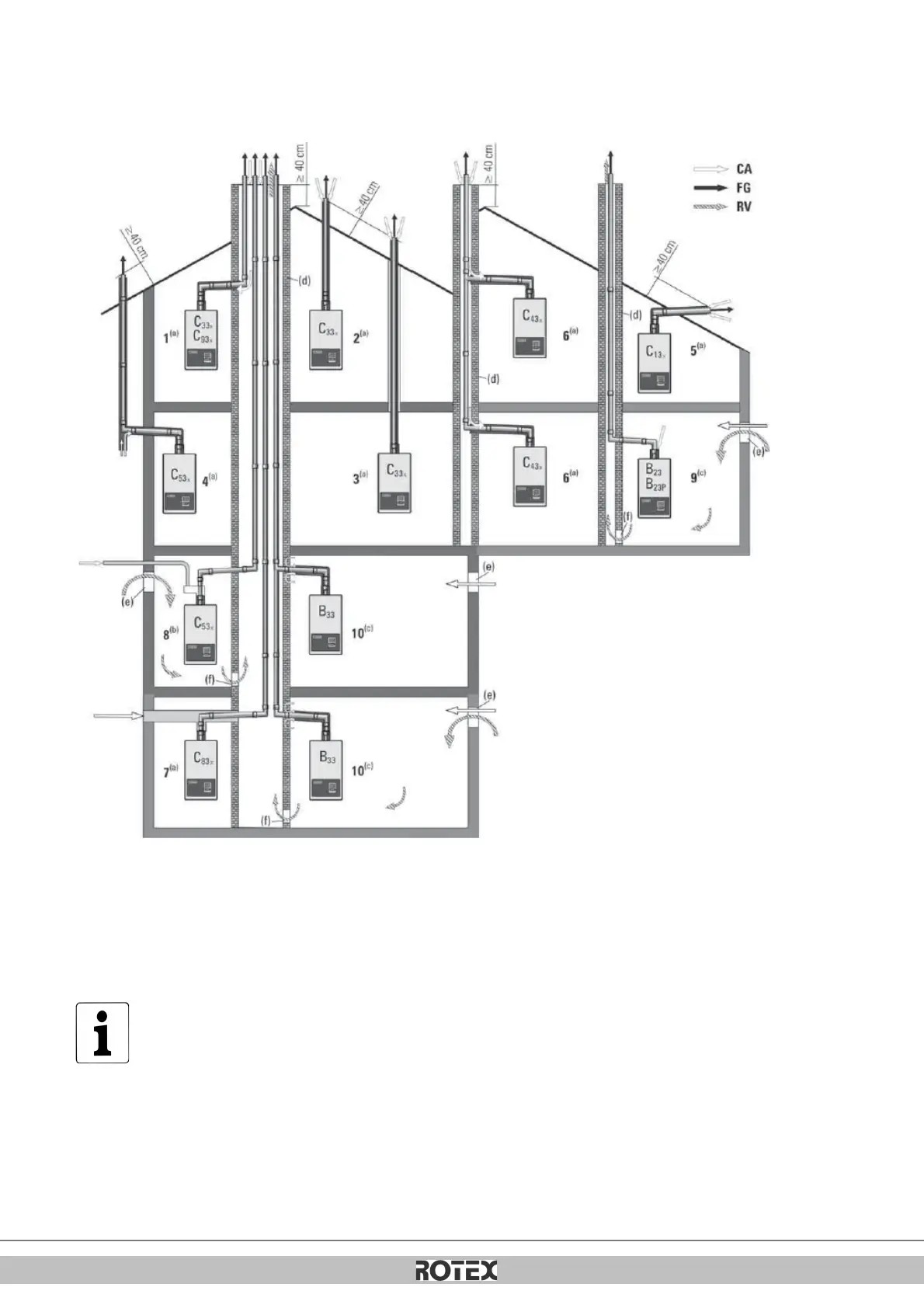

5.7 Outlet systems
Please note that not all flue gas configurations described below are permitted in all
countries. Therefore observe local regulations prior to installation.
CA Verbrennungsluft
FG Rauchgas
RV Belüftung
The drawings above are a sample and can differ on details.
