Rotex GW-30 C22 - INSTALLATION; Installation Measurements

11
4 INSTALLATION

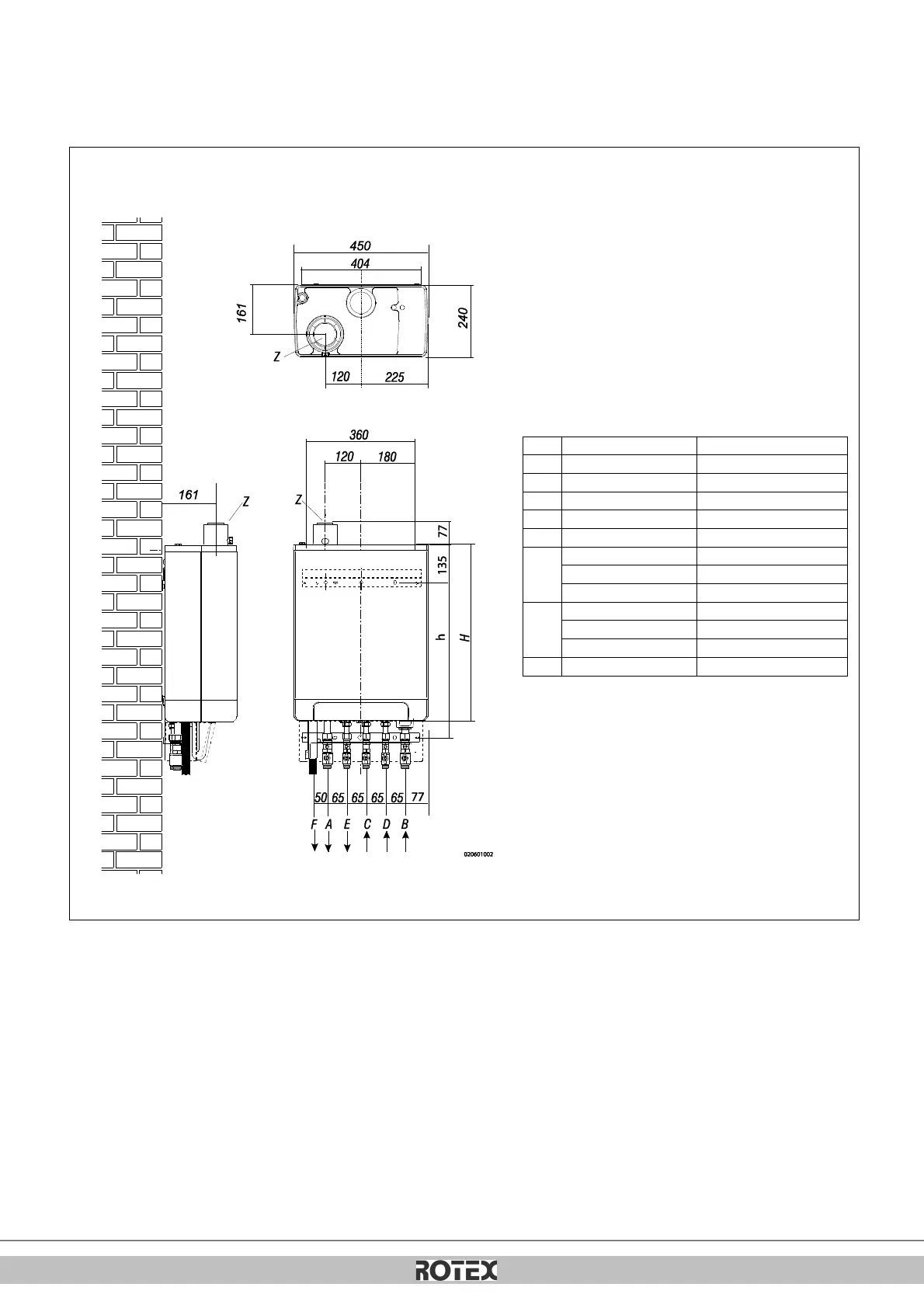

4.1 Installation measurements
Unit with pipes connected downwards:
Unit + wall mounting strip
A =
Supply CH
G ¾” (ext)
B =
Return CH
G ¾” (ext)
C =
Gas
G ½” (int)
D =
Tap water cold
R ½”
E =
Tap water warm
R ½”
F =
Condense outlet
Ø dn25 (flexible)
h=
517mm
RKOMBG22AAV1
577mm
RKOMBG28AAV1
637mm
RKOMBG33AAV1
H=
590mm
RKOMBG22AAV1
650mm
RKOMBG28AAV1
710mm
RKOMBG33AAV1
Z =
Flue gas outlet/air inlet
Ø60/100 (concentric)
