4.3 Assembly
The boiler can be hung to the wall using :
• the wall suspension strip and a the connection kit EKVK4AA
• a B-pack including an expension vessel and a connection kit.

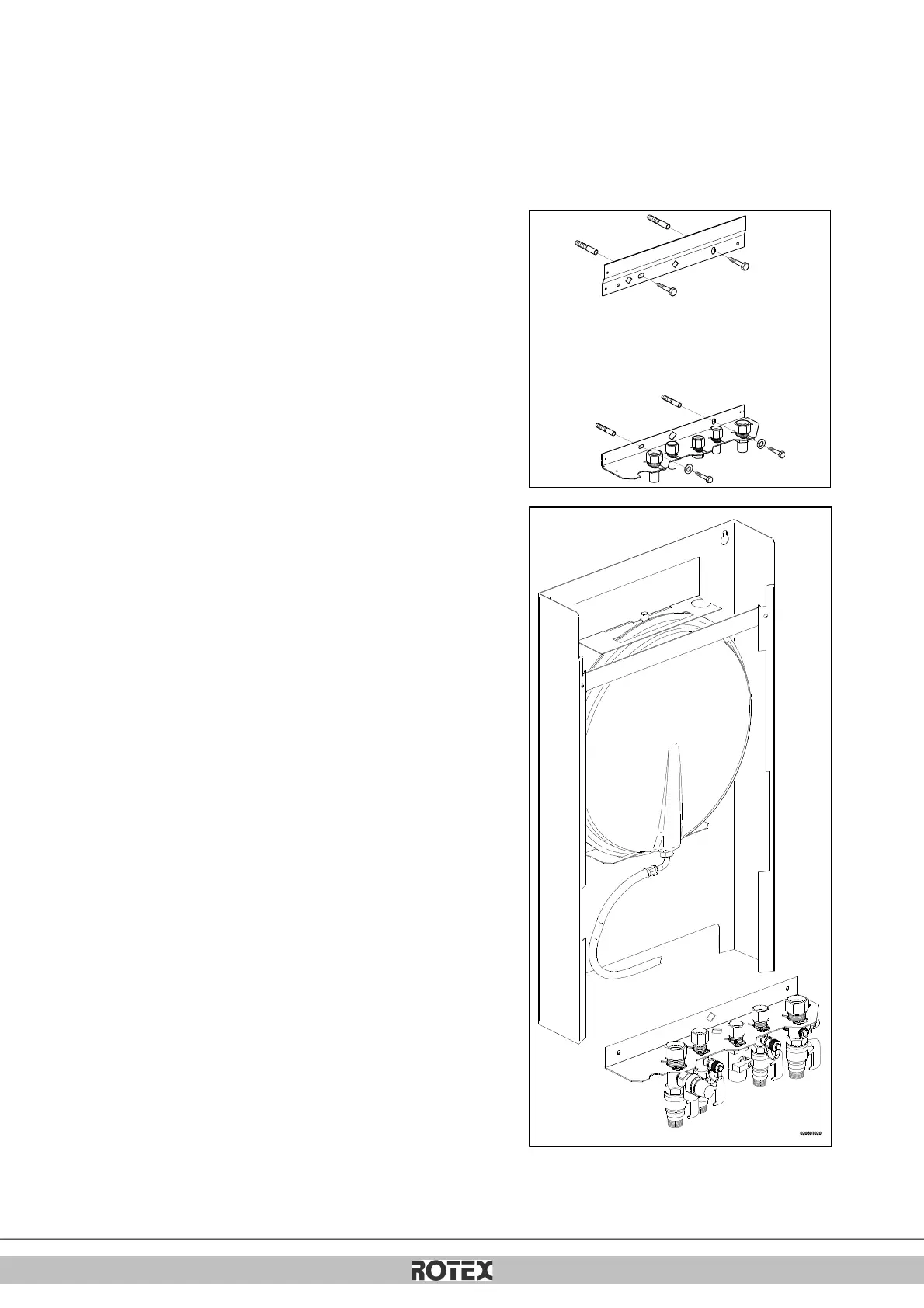

4.3.1 Assembling suspension strip and assembly bracket
• Make sure the construction of the wall is suitable for hanging the boiler.
• Drill the holes for the suspension strip and the connection kit in the wall
using the template delivered with the boiler.
• Mount the suspension strip and the assembly bracket horizontally on the
wall, using the associated attachment materials.
• Place the filling loop on the connections of the return and cold water
nipple following the connection kit installation instruction
• The boiler can now be placed on the suspension strip simultaniously
sliding the pipes of the boiler into the valves in the assembly bracket.
4.3.2 Assembling bottom connection set
• Make sure the construction of the wall is suitable for hanging the boiler
and B-pack.
• Drill the holes for the B-pack kit in the wall using the template delivered
with the boiler.
• Mount the B-pack on the wall using the associated attachment materials.
• Place the assembly bracket in the frame as described in the manual
inclued in the B-pack.
• Connect the flexible hose on the expension vessel and the conenction
on the return valve. Make sure the seal rings are placed !
• Place the filling loop on the connections of the return and cold water
nipple following the connection kit installation instruction
• The boiler can now be placed on B-pack simultaniously sliding the pipes
of the boiler into the valves in the assembly bracket
