4 INSTALLATION

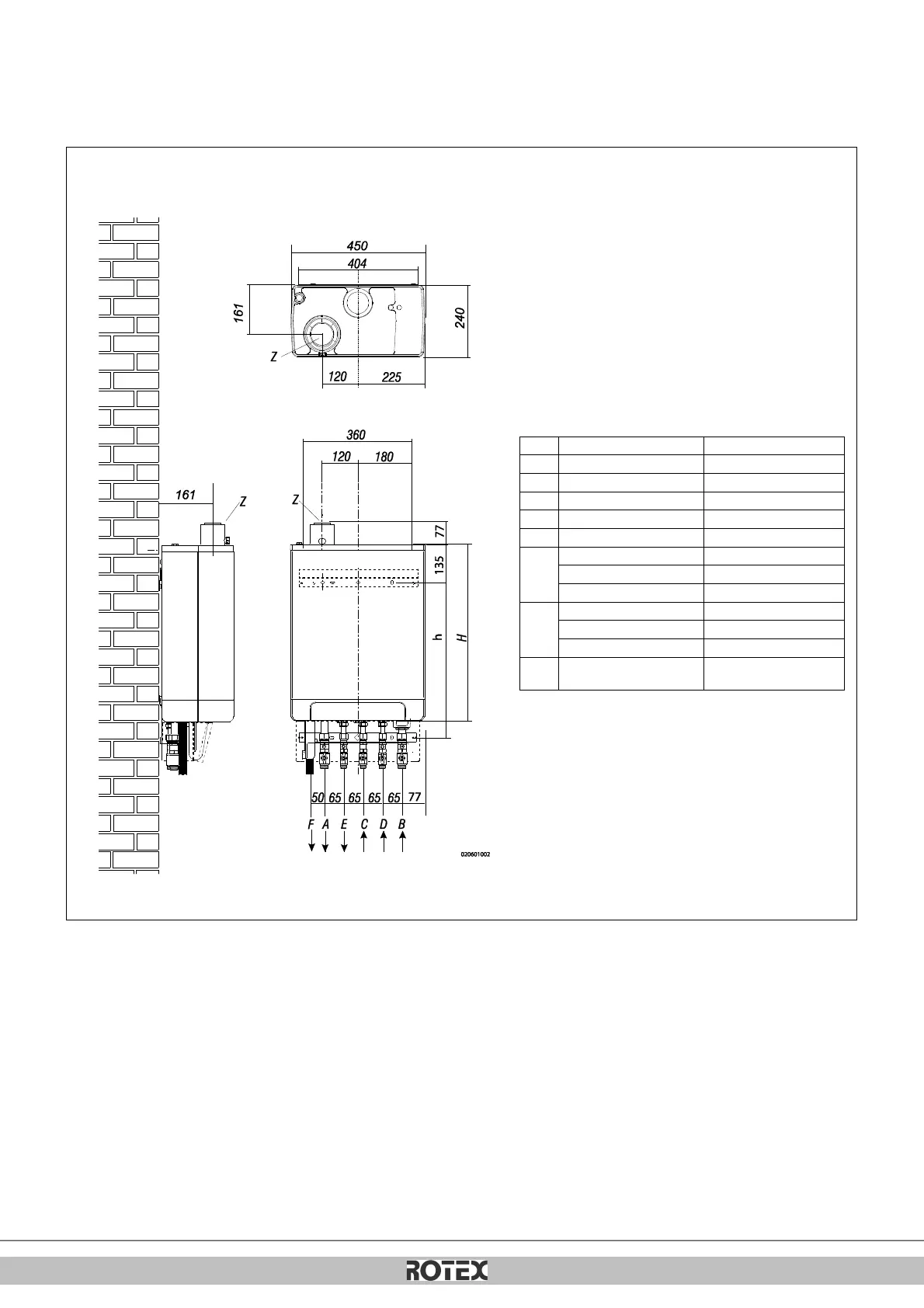

4.1 Abmessungen der Anlage
Gerät mit nach unten angeschlossenen Rohrleitungen:
Gerät + Wandmontageleiste
A =
Zulauf ZH
G ¾(außen)
B =
Rücklauf ZH
G ¾(außen)
C =
Gas
G ½(innen)
D =
Kaltwasser
R ½
E =
Warmwasser
R ½
F =
Kondensatauslass
Ø dn25 (flexibel)
h=
517 mm
RKOMBG22AAV1
577 mm
RKOMBG28AAV1
637 mm
RKOMBG33AAV1
H=
590 mm
RKOMBG22AAV1
650 mm
RKOMBG28AAV1
710 mm
RKOMBG33AAV1
Z =
Verbrennungsgasauslass/
Lufteinlass
Ø60/100 (konzentrisch)
