9

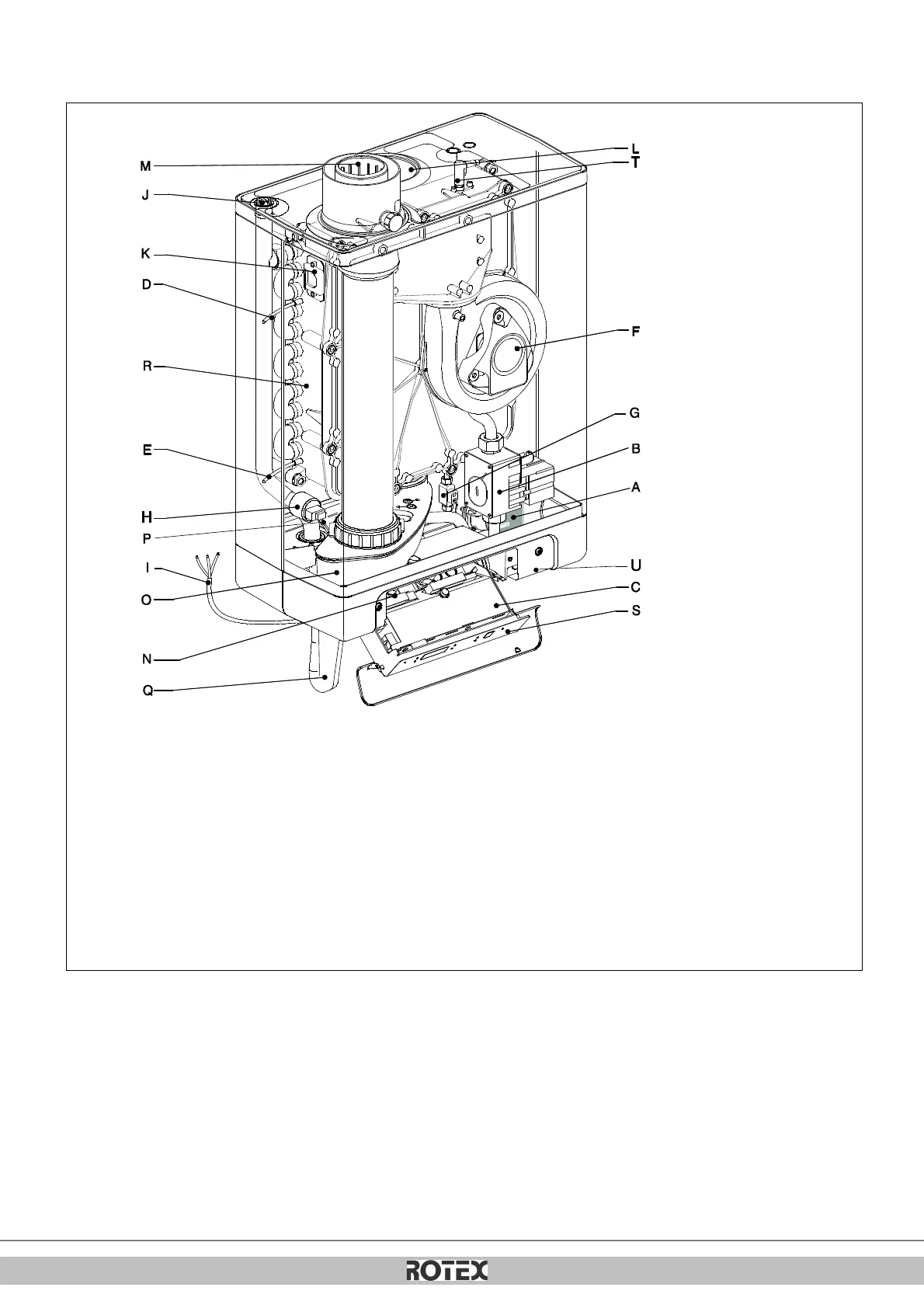

3 HAUPTKOMPONENTEN
A.
ZH-Pumpe
L.
Luftzufuhr (nur bei Verwendung des Doppelrohr-
Rauchabzugssystems)
B.
Gasventil
C.
Kesselsteuerung (inkl. Bedienteil)
M.
Konzentrischer Rauchgas/Luftzufuhr-Adapter
D.
Fühler S1 (Fluss)
N.
Anschlussblock/Anschlussleiste X4
E.
Fühler S2 (Rücklauf)
O.
Kondensatablaufwanne
F.
Lüfter
P.
Warmwasserfühler S3
G.
Flusssensor
Q.
Siphon
H.
Drucksensor Zentralheizung
R.
Wärmetauscher
I.
230 V-Anschlusskabel mit geerdetem Stecker
S.
Bedienteil und Anzeige
J.
Manuelle Entlüftung
T.
Ionisierungs-/Zündstift
K.
Schauglas
U.
Position der Datenplatte
