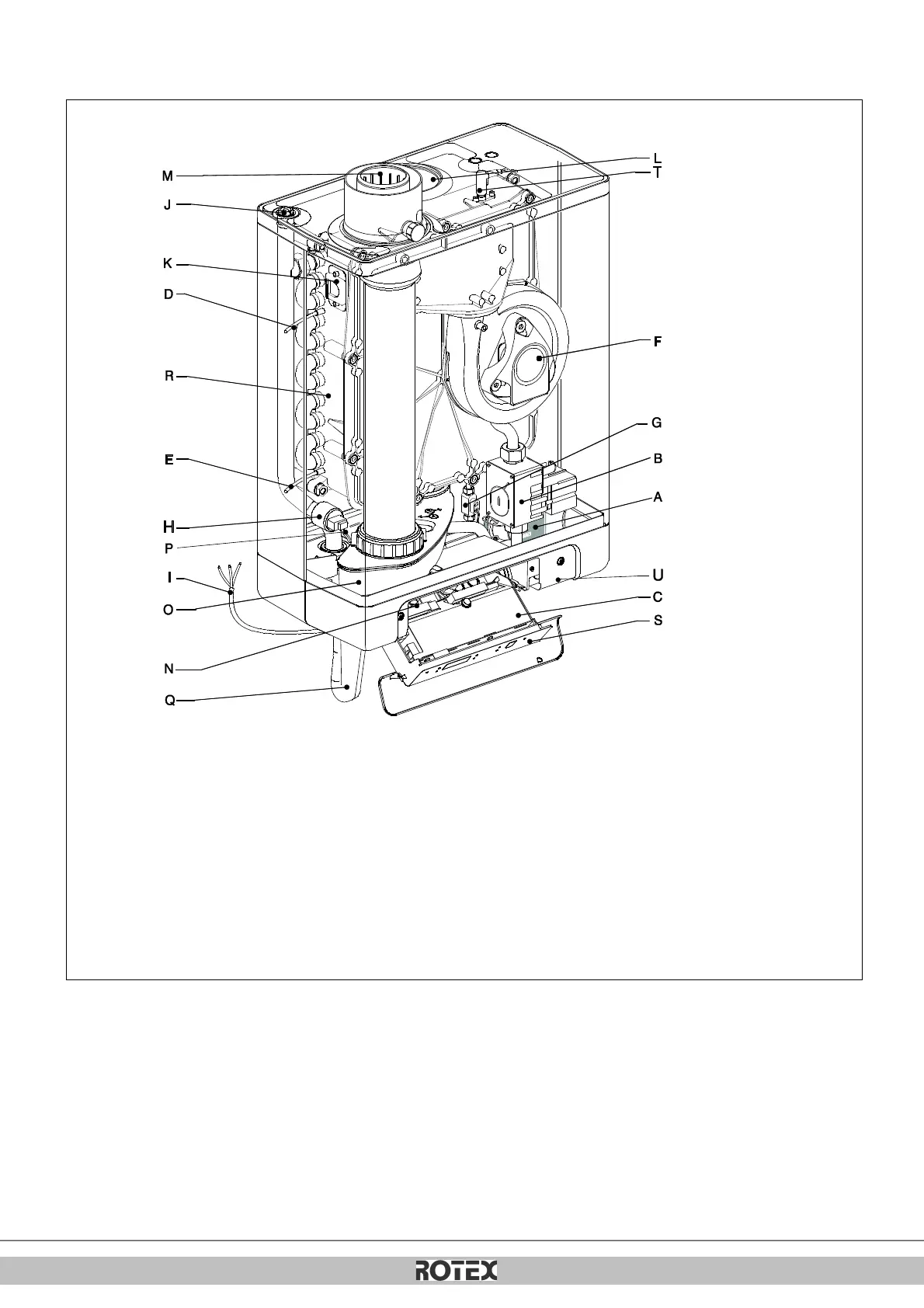

3 HOOFDCOMPONENTEN
A.
A-label CV-pomp
L.
Luchttoevoer
B.
Gasblok
M.
Rookgasafvoeradapter
C.
Branderautomaat met bedieningspaneel
N.
Aansluitblok / klemmenlijst X4
D.
Aanvoersensor S1
O.
Condensafvoerbak
E.
Retoursensor S2
P.
Warmwatersensor S3
F.
Ventilator
Q.
Sifon
G.
Stromingssensor
R.
Warmtewisselaar
H.
Druksensor CV
S.
Bedieningspaneel en uitlezing
I.
Aansluitsnoer 230 V ~ met steker met randaarde
T.
Ionisatie- / ontsteekpen
J.
Handontluchter
U.
Positie typeplaat
K.
Kijkglas
