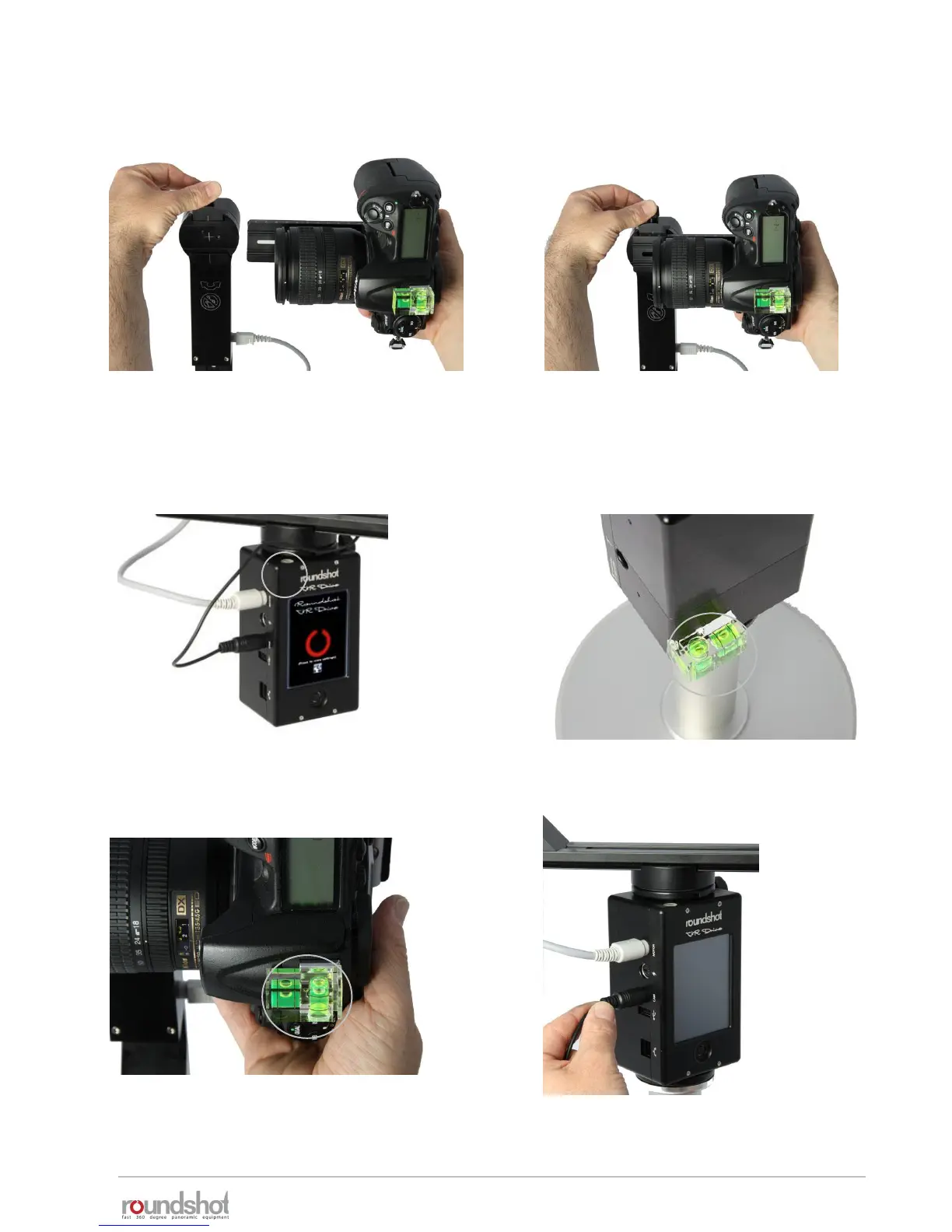

Slide the camera with the nodal rail
into the nodal rail clamp.
Close the nodal rail clamp lock.
Now check that the camera is exactly
level using the spirit level.
Check if the VR Drive x-motor is level
using the spirit level on the motor.
You can also attach the spirit level at the
side of the x-motor.
2.1.1 Roundshot VR Drive “full” (continued)
Connect the release cable and /or the USB
cable into the VR Drive x-motor
