Ocean 2014 - Main screen
52
Ocean 2014 User's Manual
2014-06-02/3.2A
4. Click OK.
5. Ocean 2014 will now connect to your meter and load the chosen real-time display.

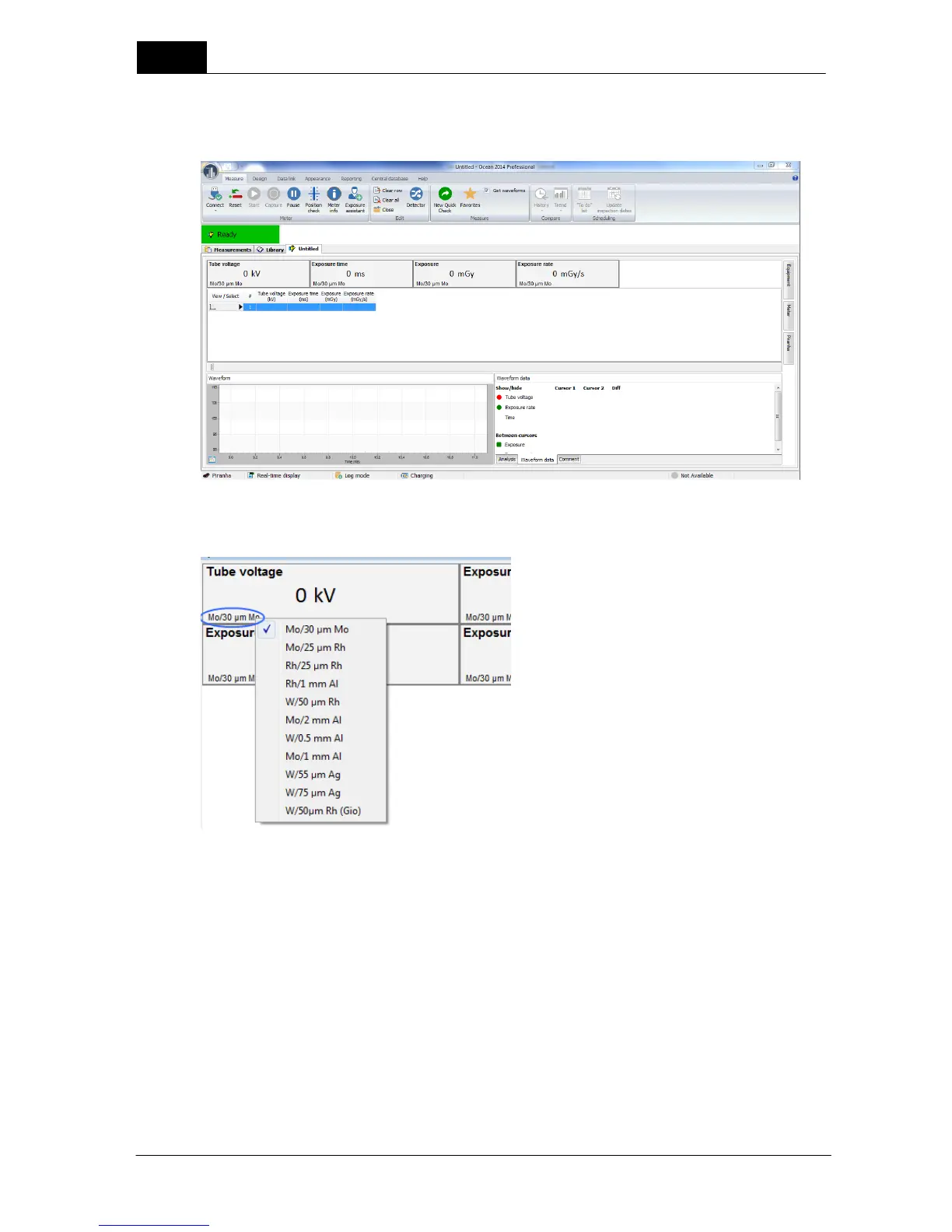

6. If you are measuring on mammography or CT you may want to select another calibration. The
calibration is shown in the lower left corner of the display. Right-lick on it if you want to change it:
7. You are now ready to make an exposure.
8. When the exposure is finished, the results will be shown in the displays and a waveform will be shown
in the waveform window on the bottom left of your screen.
9. You can continue making exposures one after another until your task is complete.
10. Click on the save button when you are done (on the Quick Access Toolbar or on the Application
menu) to save your work. You will be asked to specify a name for the measurements you have just
completed.
11. Your work is now saved in the database. If you want to see it again later, you can look for it under
the Measurements tab to the right of the displays.
