Return to Normal Delay Period
In standard applications any delay period set for alarm initiation is also applied to the return to normal
state.
For example if a 5 second delay is set, the alarm will not activate until the input has been in the
abnormal state for a minimum of 5 seconds.
If the alarm returns to normal the same delay period of 5 seconds will apply before the alarm state
returns to normal.
In some applications Customers prefer the alarm to have a delay before the alarm activates but as
soon as the input returns to normal they require the alarm to return to the non alarm condition.
ON
RL2
4
8
6
7
5
OFF
3
2
1
ALARM CARD
RL1
A4506-*
VR2 VR1
CH2 CH1
CARD MODEL NO CB5674POP1
RESPONSE TIME
ADJUSTMENT
1 2
3
4 OFF
ON
SW1
SW2
NC DM DMNC
1 2

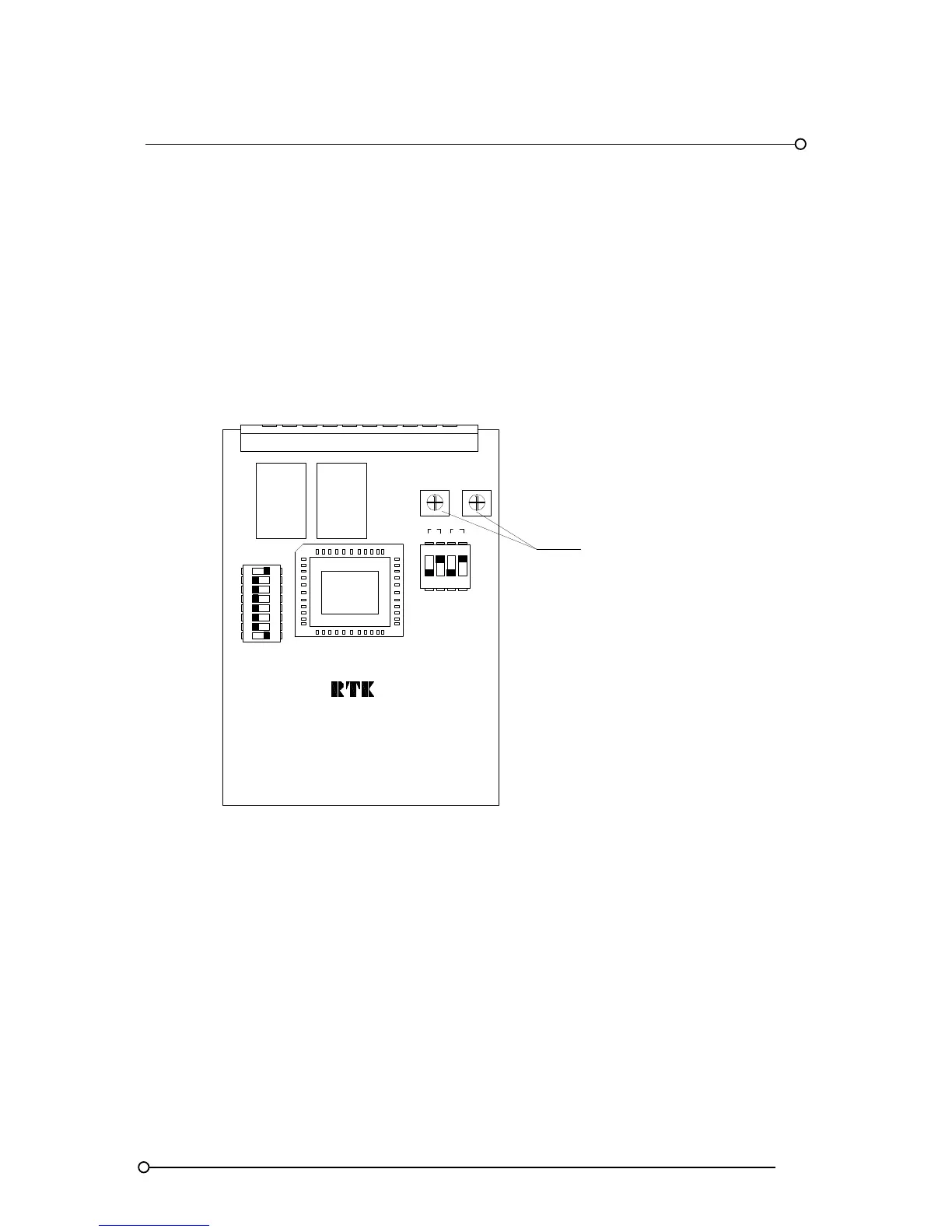

Switch SW2 is used to set :-
 SW2 – 1 & 3 are used to set the Input state to Normally Open or Normally Closed
 SW2 – 2 & 4 are used to set the Delay Mode
 The Delay Mode can be set, (OFF position), to provide the same delay period for the
initiation and return to normal states or
 The Delay Mode can be set, (ON position), to remove the delay on the return to normal state.
