Ruide RCS - 8.5 2-Pt Reference Plane (V-Plane)

32
 Sight the target and press [MSR] to start
measurement.
STA: Horizontal distance from P1 to the
measure point along the P1-P2 line
O/S: Horizontal offset from the P1-P2 line to
the measured point
dZ: Vertical offset from the P1-P2 line to the
measured point
 Press [OK] to record.

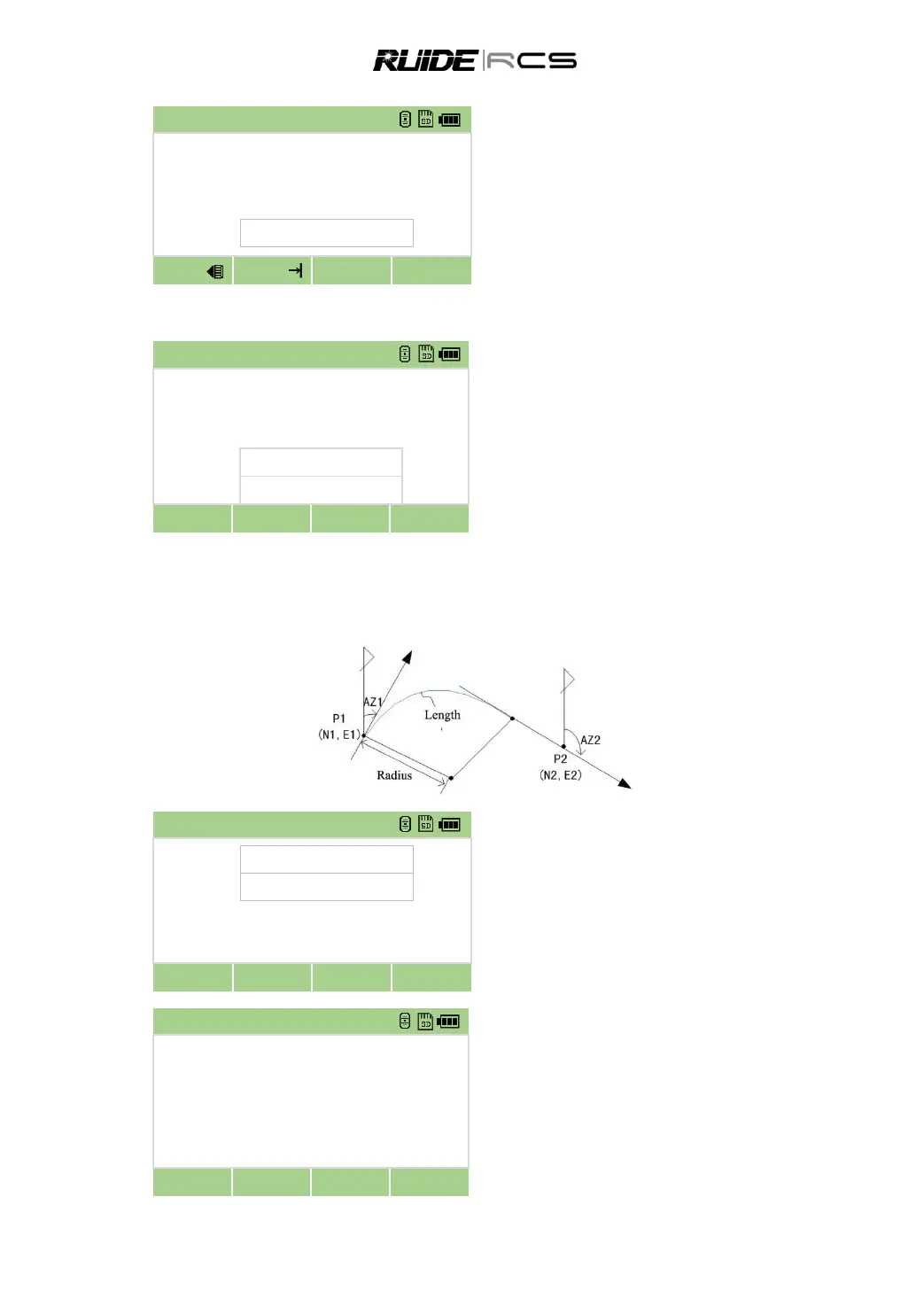

8.2 REFERENCE ARC
Measuring distance and offset values on the arc-curve.
 In [Program] menu, press [2] to enter Ref.
Arc function.
 Enter the start of the curve point P1 and the
azimuth of its tangent line.
 Press [OK]
 Choose a method to define the arc
1. P2-AZ2.
Input point name of P2 and azimuth of its
tangent line (AZ2).
2. Rad-AZ2
Input the radial and azimuth of its tangent line
(AZ2).
3. Rad-Arc
Input radial and arc length.
2Pt.Ref.Line 123
STA
m
O/S
m
dZ
m
R.HT
1.200
m
Meas
Meas
1/4
OK
Save ABC
N
2.969
m
E
4.162
m
Z
7.327
m
Pt.N
3
Code
A
Cancel
Call
OK
Start 123
Pt N
1
Azimuth
Input
Call
Meas.
OK
Define Curve
1.
P2-AZ2
2.
Rad-AZ2
3.
Rad-Arc
Cancel
