33
The instrument calculates the curve. If the
curve length (Len) is too large for a circle of the
given radius, it is shortened. If the curve is
reasonable, press [OK] to confirm.
Sight the center of prism, and press [MSR].
STA: Horizontal distance from P1 to the
measure point along the P1-P2 line
O/S: Horizontal offset from the P1-P2 line to
the measured point
dZ: Vertical offset from the P1-P2 line to
the measured point
Press [OK] to record.
In the radius (Rad) field, enter a positive value for a clockwise curve. Enter a negative value for a
counterclockwise curve.
P2 can be any point on the tangent line that is to exit the curve.

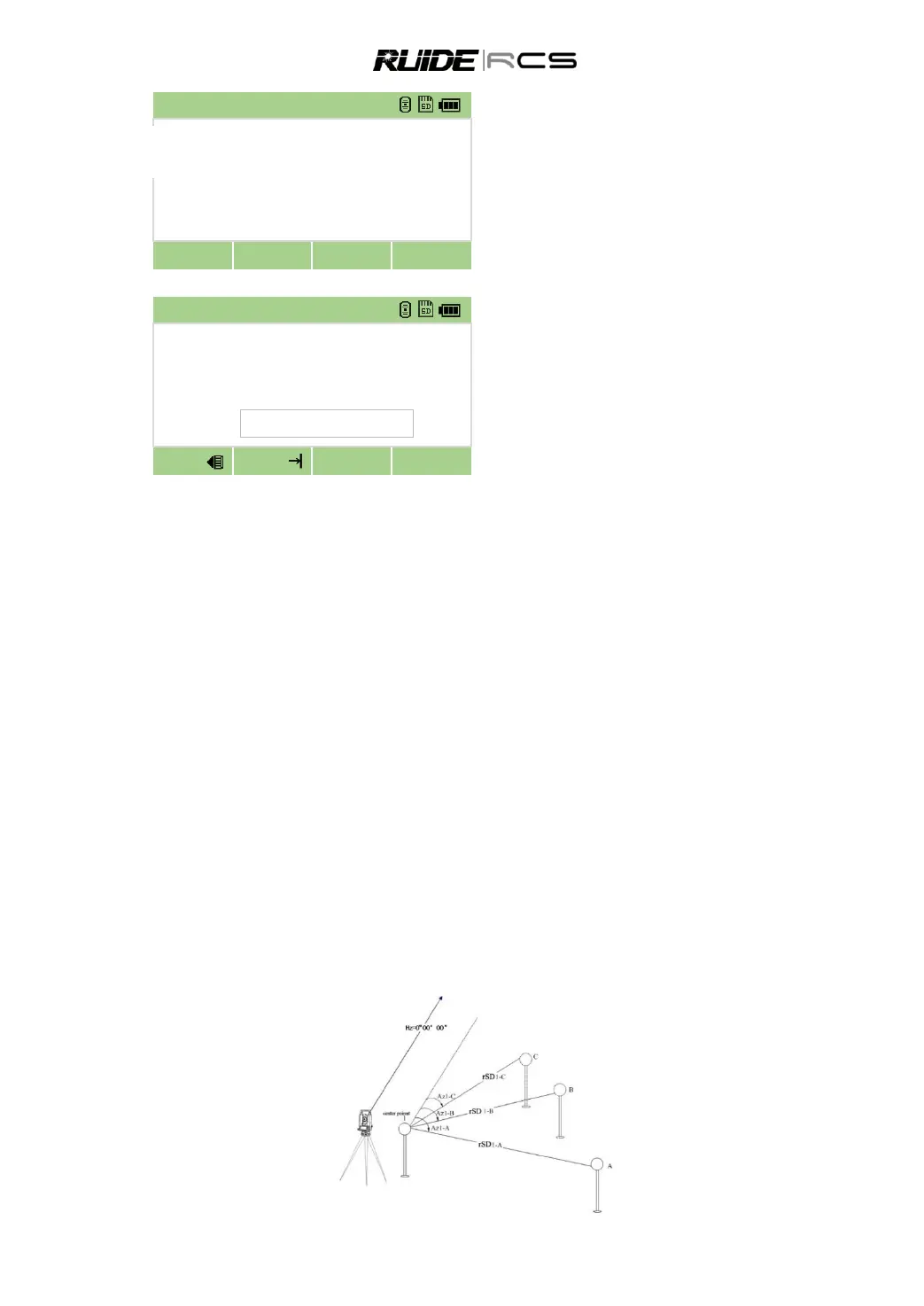

8.3 REMOTE DISTANCE MEASUREMENT
This function measures the horizontal distance, vertical distance, and slope distance between two
points.
User can select between two different methods:
MimRadial(A-B，A-C)
Mim Cont. (A-B，B-C)
rSD: Slope distance between two points
rHD：Horizontal distance between two points
rVD: Vertical distance between two points
RV%：rV% Percentage of grade (rVD/rHD) × 100%
rGD：Vertical grade (rHD/rVD)
rAZ：Azimuth from first point to second point
8.3.1 MimRadial
Measuring between the current and the first point measured.
