 In [Program] press [5] to enter REM function.
 Enter the target height, Sight the target point
and press [MSR].
 Loosen the vertical clamp, and turn the
telescope to aim at the target point. The difference in
elevation (Z) is displayed.

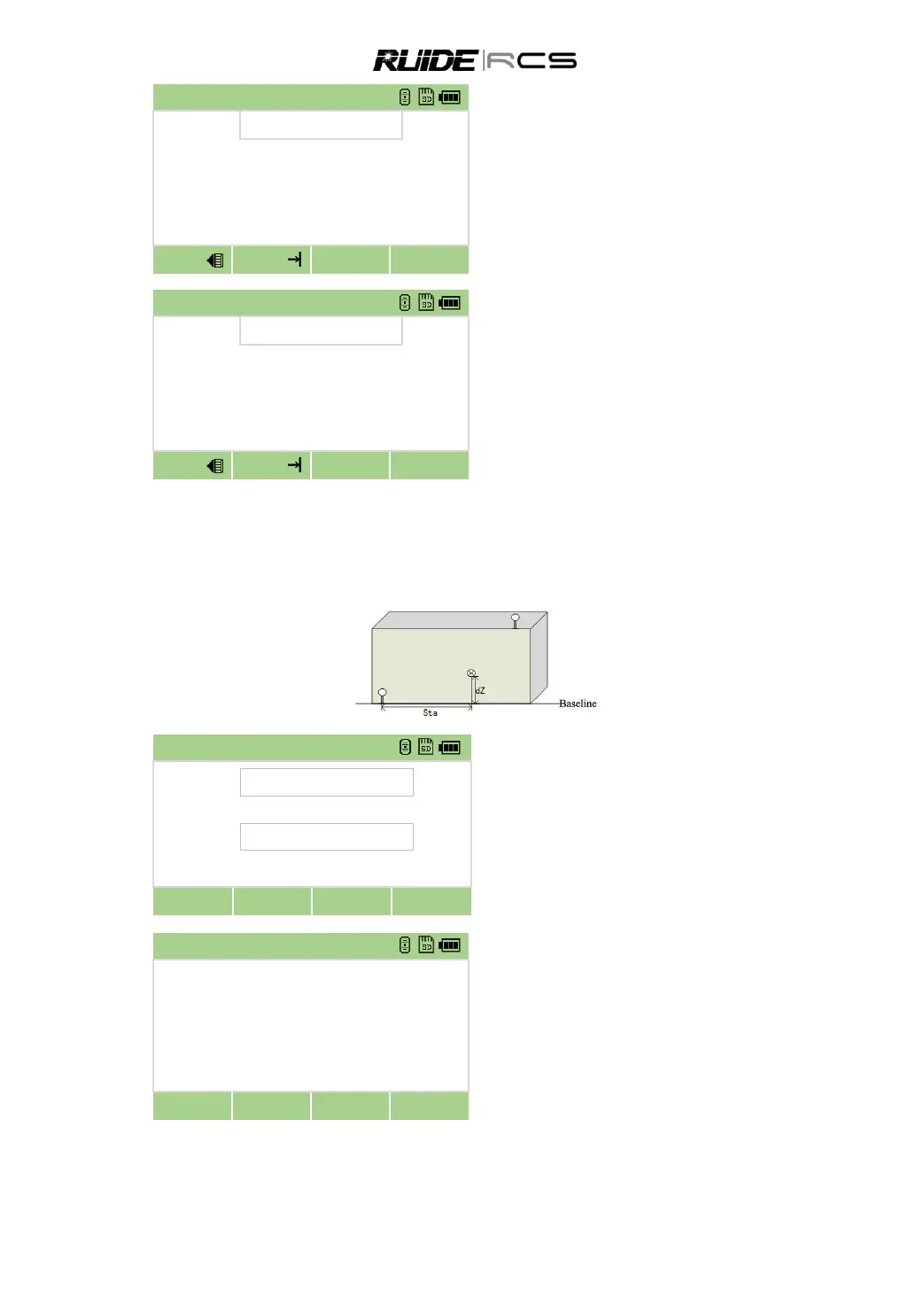

8.5 2-PT REFERENCE PLANE (V-PLANE)
Measuring distance and offset values on the vertical plane.
 In the second page of [Program] press[6] to
enter 2-Pt Reference Plane (V-Plane) function.
 Input the first point to define the plane.
 Input the second point on the vertical plane,
and press [OK].
 Once the plane is defined, the calculated Sta
and dZ values are updated as you move the
telescope. No distance measurement is required.
Sta：Horizontal distance from P1 to the target
point along the baseline
dZ: Vertical distance from P1 to the target point
 Press [Save] to save the point.
REM 123
R.HT
1.200
m
VA
42°23’45”
HD
m
VD
m
Z
m
Meas
Meas
REM 123
R.HT
1.200
m
VA
42°23’45”
HD
m
VD
m
Z
m
Meas
Meas
V-Plane 123
P1
P2
Input
Call
Meas.
OK
V-Plane
HA
42°23’45”
VA
42°23’45”
Sta
0.102
m
dZ
1.229
m
Cancel
1/2
Save
