SABB MOTOR 2H - Clutch and Propeller Control Parts List

"

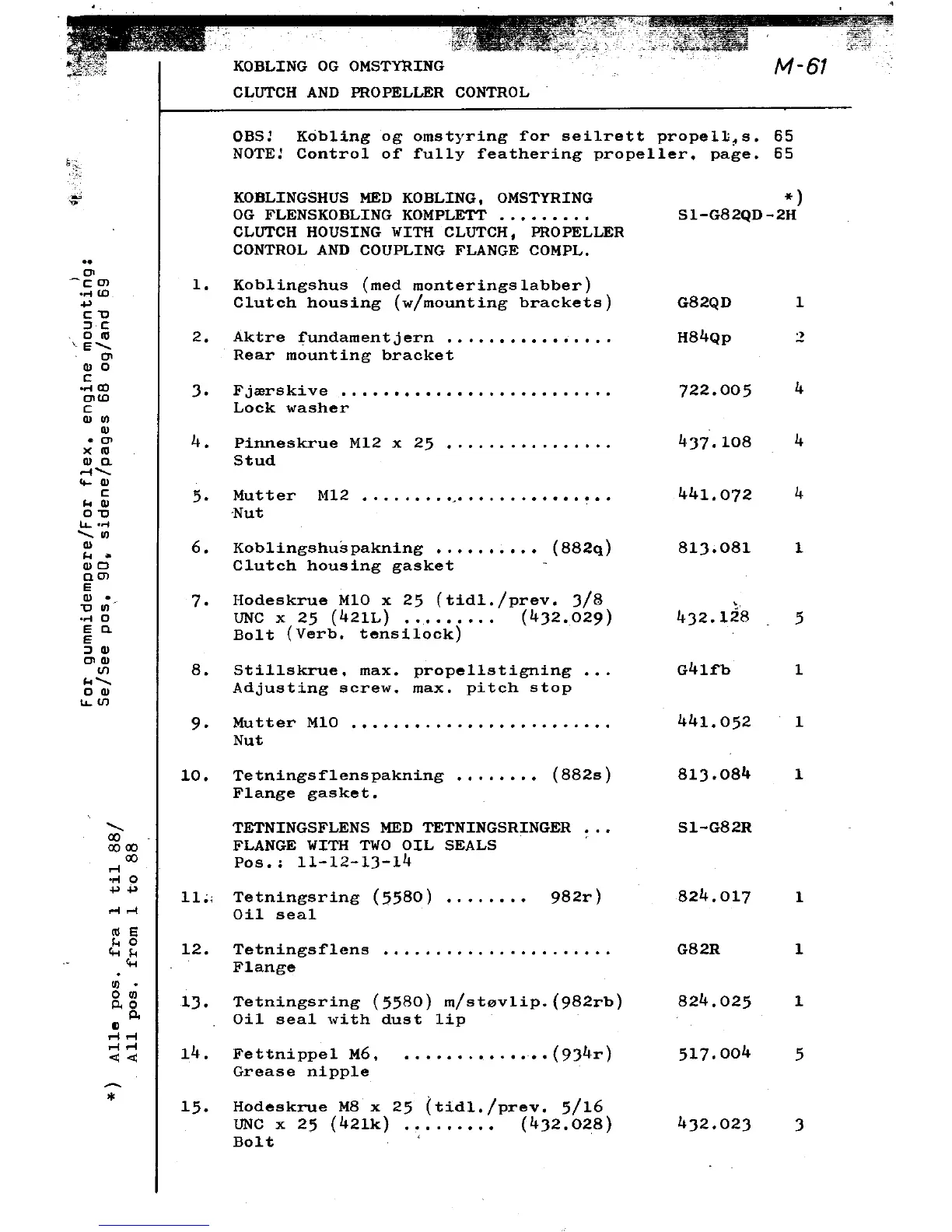

KOBLING OG OMSTYRING A1- 61
CLUTCH AND PROPELLER CONTROL
OBS! Kobling og omstyring for seilrett propeLl.s. 65
, NOTE! Control of fully feathering propeller. page. 65
.;;
:;
~ KOBLINGSHUS MED KOBLING. OMSTYRING *)
OG FLENSKOBLING KOMPLETT . Sl-G82QD-2H
CLUTCH HOUSING WITH CLUTCH, PROPELLER
CONTROL AND COUPLING FLANGE COMPL.
..
Ct
-.~~ 1. Koblingshus.(med monteringslabber)
~ Clutch hous~ng (w/mounting brackets) G82QD 1
C"t)
:I C
,~~ 2. Aktre fundamentjern .. H84Qp 2
Ct Rear mounting bracket
Q) 0
C
'c;,:g 3. Fjmrskive 722.005 4
C Lock washer
Q) 1/1
Q)
,; g' 4. Pinneskrue M12 x 25 . "'" '" '" 1137.108 4
Q) a. Stud
,
,"-Q)
~~ 5. Mutter ~n2 "."""-""""""'" 441.072 4
O"t) Nut
LL '1/1
~ . 6. Koblingshuspakning. (882q) 813.081 1
Q) 0 Clutch housing gasket
ClCJ
E
~.;, 7. Hodeskrue MlO x 25 (tidl./prev. 3/8 ~
0 UNC x 25 (421L) (432.029) 432.128 5
~ Cl Bolt (Verb. tensilock)
:I Q)
CtQ)
~ 8. Sti11skrue. max. propel1stigning ... G41fb 1
~~ Adjusting screw. max. pitch stop
LL~
9. Mutter MlO 441.052 1
Nut
10. Tetningsf1enspakning (8825) 813.084 1
Flange gasket.
" TETNINGSFLENS MED TETNINGSRINGER ... Sl-G82R
~ 00 FLANGE WITH TWO OIL SEALS .
~oo Pos.: 11-12-13-14
...1 0
~.;. 11;; Tetningsring (5580) 982r) 824.017 1
~~ Oi1seal
m E
t~ 12. Tetningsf1ens G82R 1
.r.. F1ange
U) .
8.~ I). Tetningsring (5580) m/st0vlip.(982rb) 824.025 1
m ~ Oil sea1 ,.ith dust lip
~~
~~ 111. Fettnippel M6. .. (93I1r) 517.004 5
Grease nipple
~
*
15. Hodeskrue M8 x 25 (tidl./prev. 5/16
UNC x 25 (421k) '.0' (432.028) 432.023 3
Bolt '
