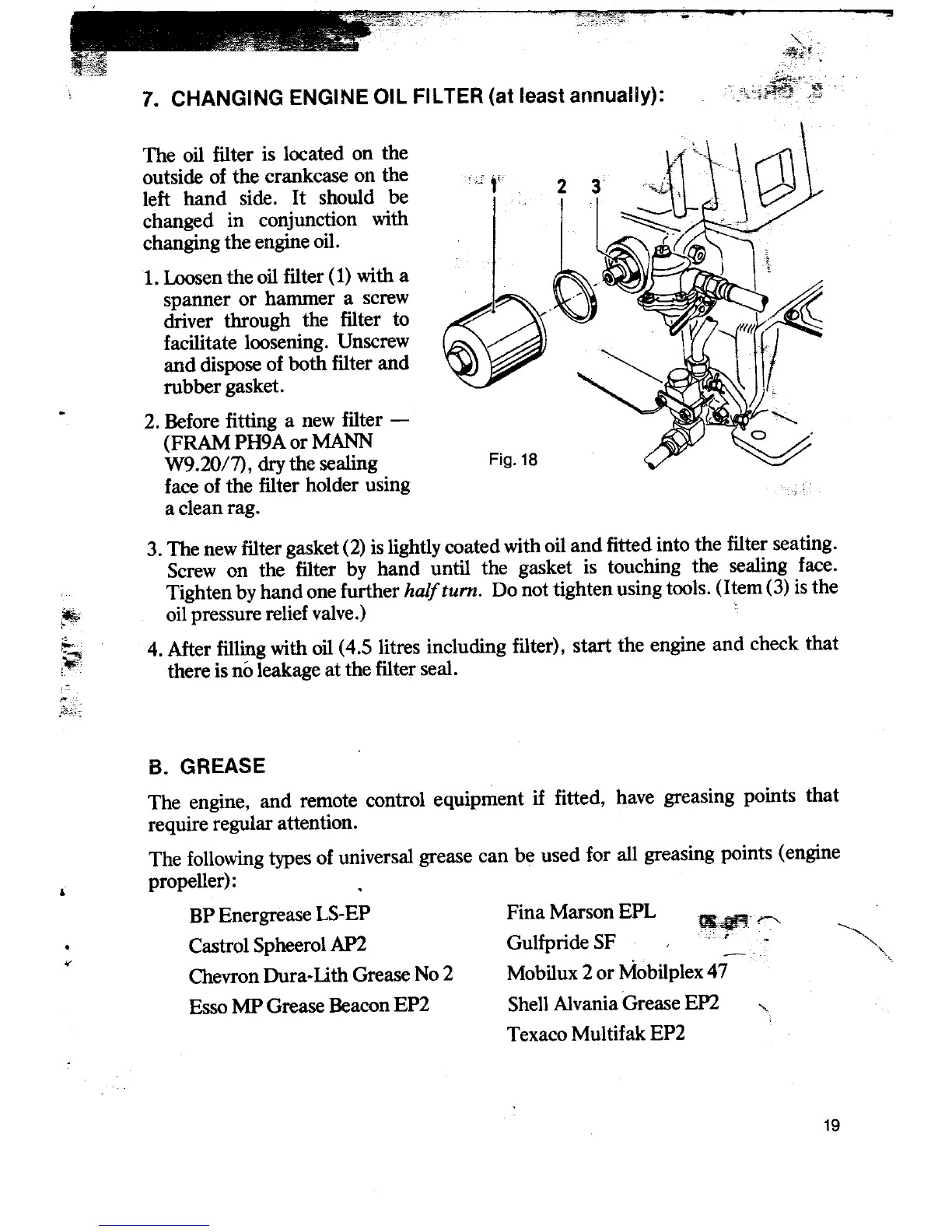

7. CHANGING ENGINE OIL FILTER (at least annually): ':,,;j~"'é}-)
The oil filter is located on the
outside of t~e crankcase on the t' 2 3 ~.i'
left hand slde. It should be
~~~~ chang~d in co~junc~on with ~
changlng the engme oil. (. ~ i
1. Loosen the oil filter (1) with a ) 1
spanner or hammer a screw
~ ' - .-#
driver through the filter to '~ 4~
facilitate loosening. Unscrew ~Ii
and dispose of both filter and
rubber gasket.
. 2. Before fitting a new filter -
(FRAM PH9A or MANN
W9.20/7), dry the sealing Fig. 18
face of the filter holder using
a clean rag.
3. The new filter gasket (2) is lightly coated with oil and fitted into the filter seating.
Screw on the filter by hand until the gasket is touching the sealing face.
Tighten by hand ODe further hal/turn. Do not tighten using tools. (Item (3) is the
~ oil pressure relief valve.)
~ 4. After filling with oil (4.5 litres including filter), start the engine and check that
I~ there is nó leakage at the filter seal.
B. GREASE
The engine, and remote control equipment if fitted, have greasing points that
require regular attention.
The following types of universal grease cao be used for all greasing points (engine
, propeller): .
BP Energrease LS-EP Fina Marson EPL ._~
. Castrol Spheerol AP2 Gulfpride SF " ~
... . - "
Chevron Dura-Lith Grease No 2 Mobilux 2 or Mobilplex 47
Esso MP Grease Beacon EP2 Shell Alvania Grease En "',
Texaco Multifak EP2
19
