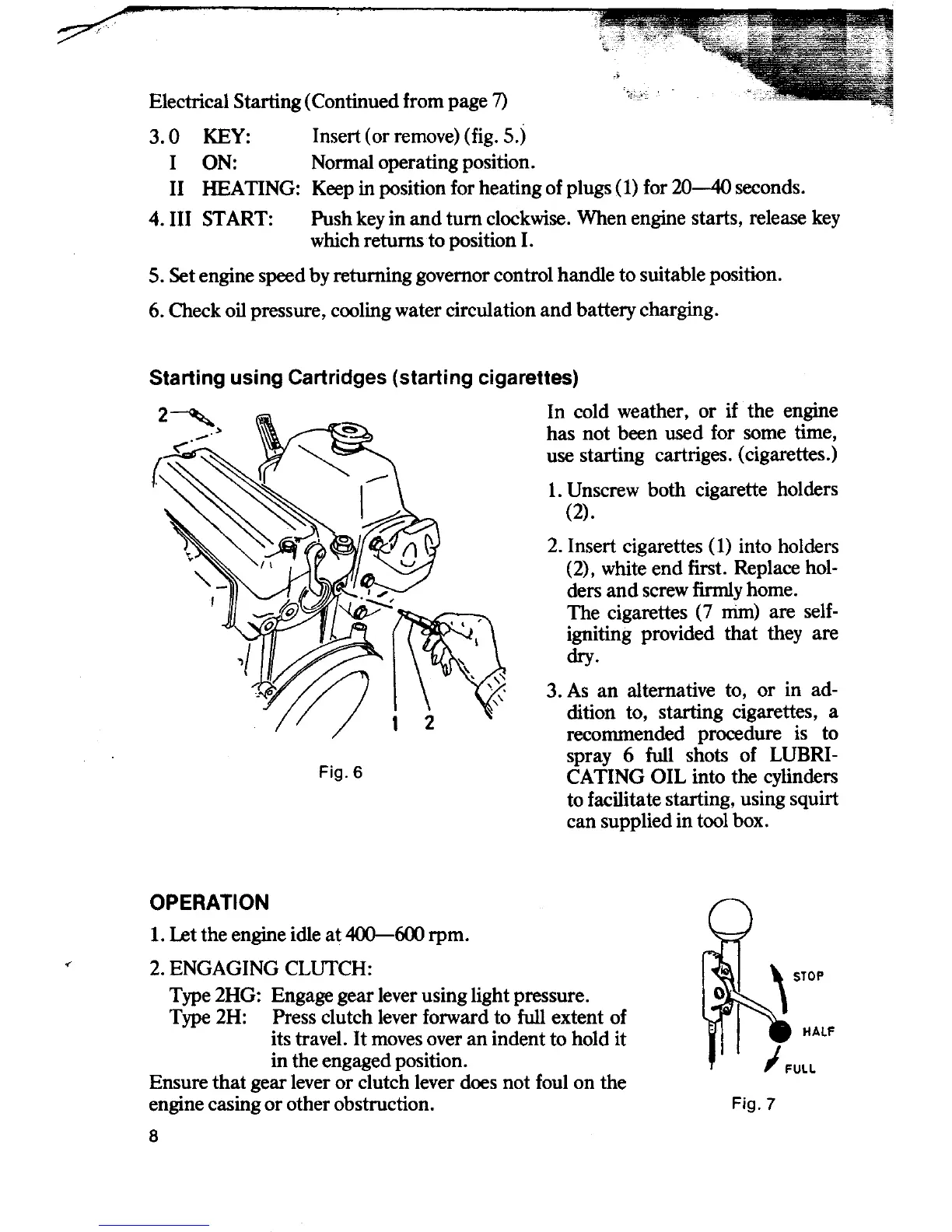

Electrical Starting (Continued from page 7)
3.0 KEY: Insert (or re move) (fig. 5.)
ION: Normal operating position.
11 HEA TING: Keep in position for heating of plugs (1) for 20-40 seconds.
4. 111 START: Push key in and turn clockwise. When engine starts, release key
which returnsto position I.
S. Set engine speed by retuming govemor con trol handle to suitable position.
6. Check oil pressure, cooling water circulation and battery charging.
Starting using Cartridges (starting cigarettes)
2 In cold weather, or if the engine
" bas not been used for same time,
r <: use starting cartriges. (cigarettes.)
1. Unscrew bath cigarette holders
(2).
. 2. Insert cigarettes (1) into holders
'" (2), white end fust. Replace hol-
ders and screw firmly home.
The cigarettes (7 trim) are self-
. . : igniting provided that they are
" dry.
"
, ,"
- '. " 3. As an alternative to, or in ad-
1 2 ' dition to, starting cigarettes, a
recommended procedure is to
spray 6 full shots of LUBRI-
Fig. 6 CATING OIL into the cylinders
to facilitate starting, using squirt
can supplied in tooI box.
OPERATION
1. Let the engine idle at 400-600 rpm.
~ 2. ENGAGING CLUTCH: STOP
Type 2HG: Engage gear lever using light pressure.
Type 2H: Press clutch lever forward to full extent of
its travel. It moves over an indent to hold it HALF
in the engaged position. ULL
Ensure that gear lever or clutch lever does not foul on the
engine casing or other obstruction. Fig. 7
8
