SABB MOTOR 2H - Gear Housing - Hand Start Parts View

"'",,"0"

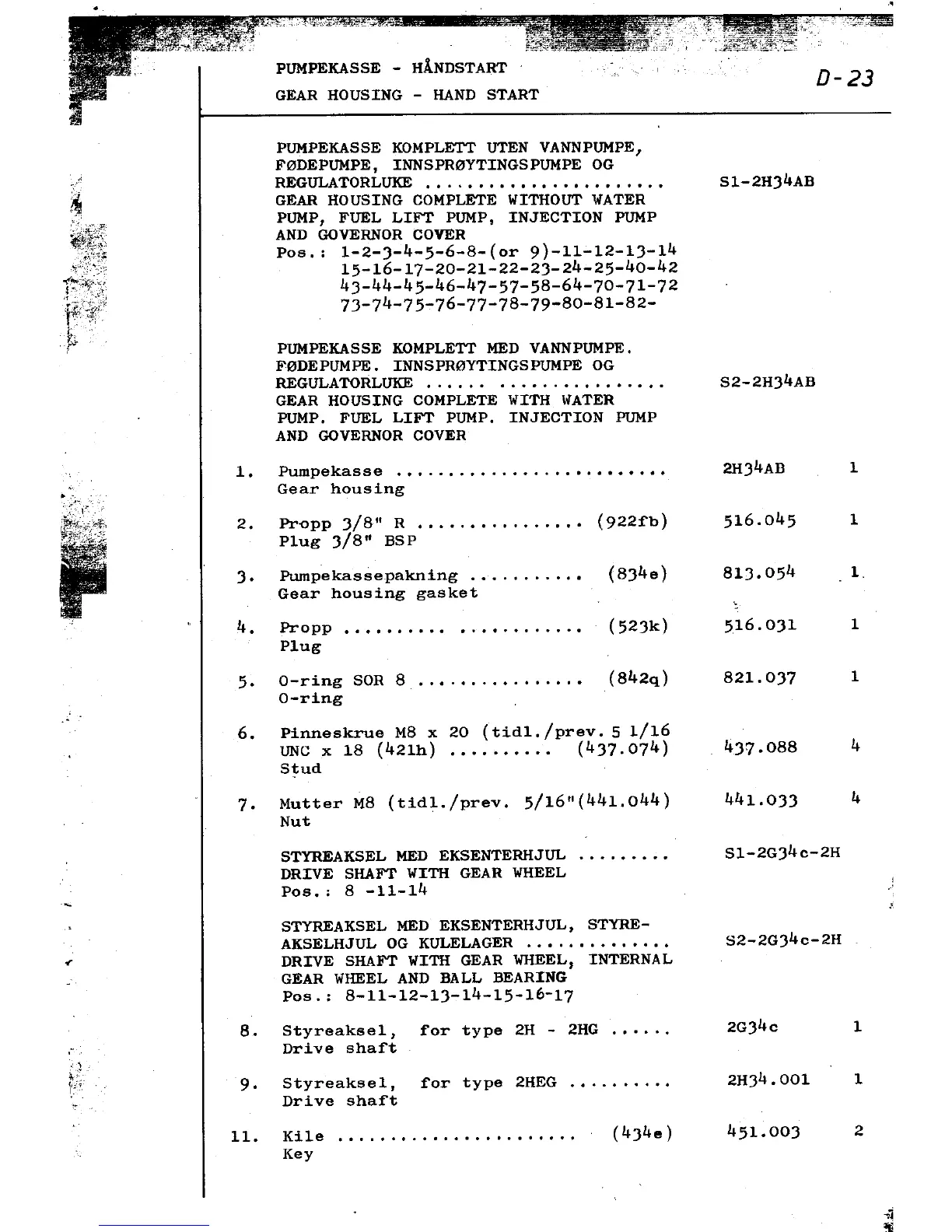

PUMPEKASSE - HANDSTART D- 23
GEAR HOUSING - HAND START
PUMPEKASSE KOMPLETT UTEN VANNPUMPE,
F0DEPUMPE, INNSPR0YTINGSPUMPE OG
REGULATORLUKE Sl-2H34AB
GEAR HOUSING COMPLETE WITHOUT WATER
PUMP, FUEL LIFT PUMP, INJECTION PUMP
AND GOVERNOR COVER
Pos.: 1-2-3-4-5-6-8-(or 9)-11-12-13-14
15-16-17-20-21-22-23-24-25-40-42
43-44-45-46-47-57-58-64-70-71-72
73-74-75-76-77-78-79-80-81-82-
PUMPEKASSE KOMPLETT MED VANNPUMPE.
F0DEPUMPE. INNSPR0YTINGSPUMPE OG
REGULATORLUKE , S2-2H34AB
GEAR HOUSING COMPLETE WITH WATER
PUMP. FUEL LIFT PUMP. INJECTION PUMP
AND GOVERNOR COVER
1. Pumpekasse 2H34AD 1
'c Gear housing
;':iCC
~ti:;i'.~' 2. Pr-opp 3/8" R (922t:b) 516.045 1
""ll""!',,,;:,, Plug 3/8" BSP
F'~ 3. Pumpekassepakning ..., (834e) 813.054 1
Gear housing gas ket
c 4. Propp (523k) 516.031 1
Plug
5. O-ring SOR 8 (842q) 821.037 1
O-ring
6. Pinneskrue M8 x 20 (tid1./prev. 51/16
UNC x 18 (421h) (437.074) 437.088 4
Stud
7. ~lutter M8 (tid1./prev. 5/16"(441.044) 441.033 4
Nut
STYREAKSEL MED EKSENTERHJUL Sl-2G34c-2H
DRIVE SHAFT WITH GEAR WEEL
Pos.; 8 -11-14 .~
STYREAKSEL MED EKSENTERHJUL, STYRE-
AKSELHJUL OG KULELAGER ... S2-2G34c-2H
< DRIVE SHAFT WITH GEAR WEEL, INTERNAL
GEAR WHEEL AND BA LL BEARING
Pos.: 8-11-12-13-14-15-16-17
8. Styreakse1, t:or type 2H - 2HG ".". 2G34c 1
.- Drive shat:t
9. Styreakse1, t:or type 2HEG 2H34.001 1
Drive shat:t
11. Ki1e , (434e) 451.003 2
Key
