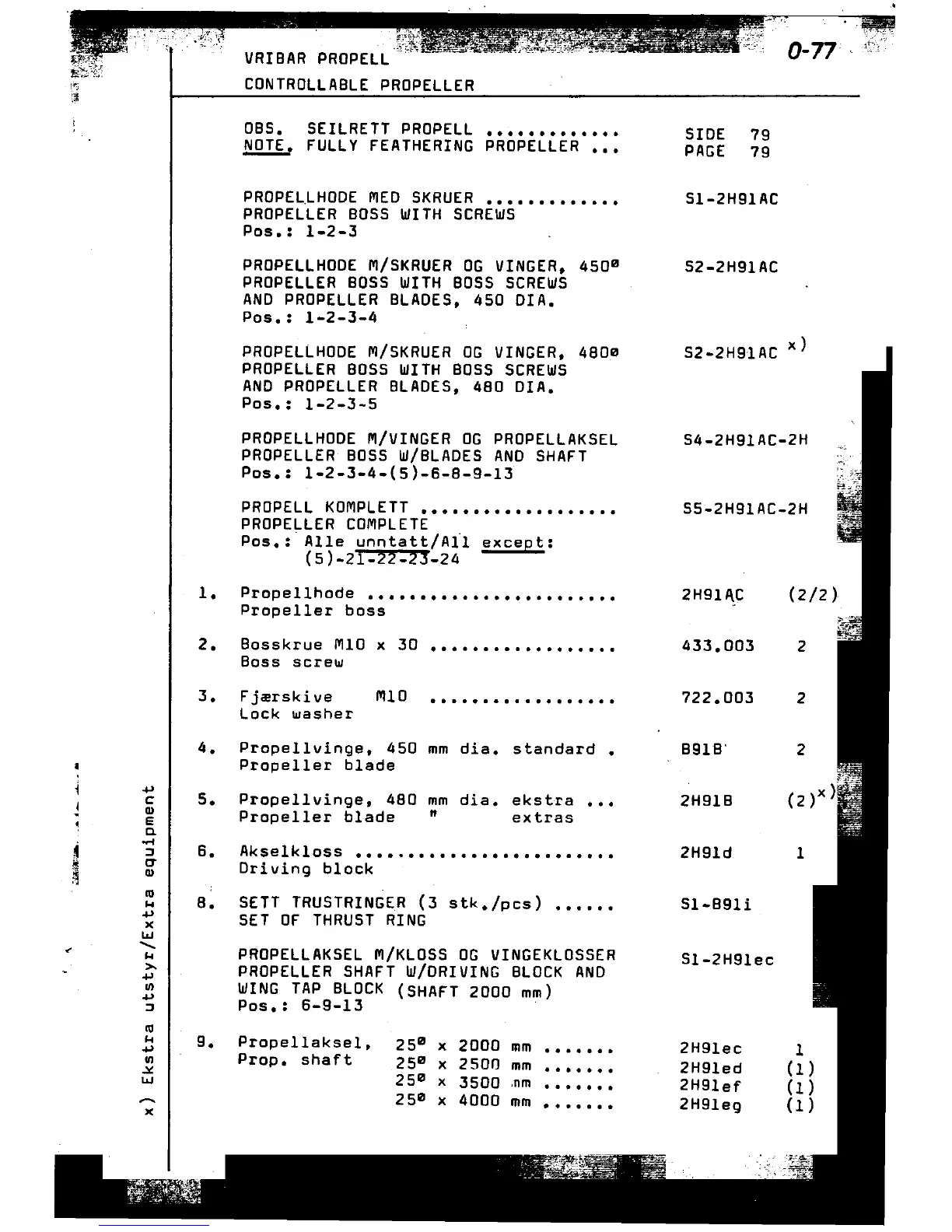

SABB MOTOR 2H - Controllable Pitch Propeller - Fully Feathering Propeller Parts List

..
VRIBAR PROPELL
~! " CONTROLLABLE PROPELLER
oeso SEILRETT PROPELL SIDE 79
~ FULLY FEATHERING PROPELLER ... PAGE 79
PROPELLHODE MED SKRUER Sl-2H91AC
PROPELLER BOSS WITH SCREWS
Pos.: 1-2-3
PROPELLHODE M/SKRUER OG VINGER, 45DB S2-2H91AC
PROPELLER BOSS WITH BOSS SCREWS
AND PROPELLER BLADES, 450 DIA.
Pos.: 1-2-3-4
PROPELLHODE M/SKRUER OG VINGER, 4BOB S2-2H91AC x)
PROPELLER BOSS WITH BOSS SCREWS
AND PROPELLER BLADES, 4BO DIA.
Pos.: 1-2-3-5
PRDPELLHODE M/VINGER OG PROPELLAKSEL S4-2H91AC-2H
PROPELLER BOSS W/BLADES AND SHAFT
Pos.: l-2-3-4-{5)-6-B-9-l3
PROPELL KOMPLETT S5-2H91AC-2H
PROPELLER COMPLETE
Pos.: Alle unntatt/All except:
(5)-21-22-23-24
1. Propellhode 2H9l~C
Propeller boss
2. Bosskrue MlO x 30 433.003 2
Boss screll/
3. Fj~rskive MlO 722.003 2
Lock lI/asher
4. Propellvinge, 450 mm dia. standard . B91B' 2
I Propeller blade
~ ~ 5. Propellvinge, 4BO mm dia. ekstra ... 2H91B
~ ~ Propeller blade ft ex tras
0.
~ .3 6. Akselkloss 2H9ld 1
~ g Driving block
~ B. SETT TRUSTRINGER (3 stk./pcs) Sl-B9li
~ SET OF THRUST RING
w
~ ~ PROPELLAKSEL M/KLOSS OG VINGEKLOSSER Sl-2H9lec
~ PROPELLER SHAFT W/DRIVING BLOCK AND
m WING TAP BLOCK (SHAFT 2000 mm)
:I Pos.: 6-9-13
IU
~ 9. Propellaksel, 25B x 2000 mm 2H9lec 1
Prop. shaft 25B x 2500 mm 2H9led (1)
25B x 3500 ,nm 2H9lef (1)
25B x 4000 mm 2H9leg (1)
