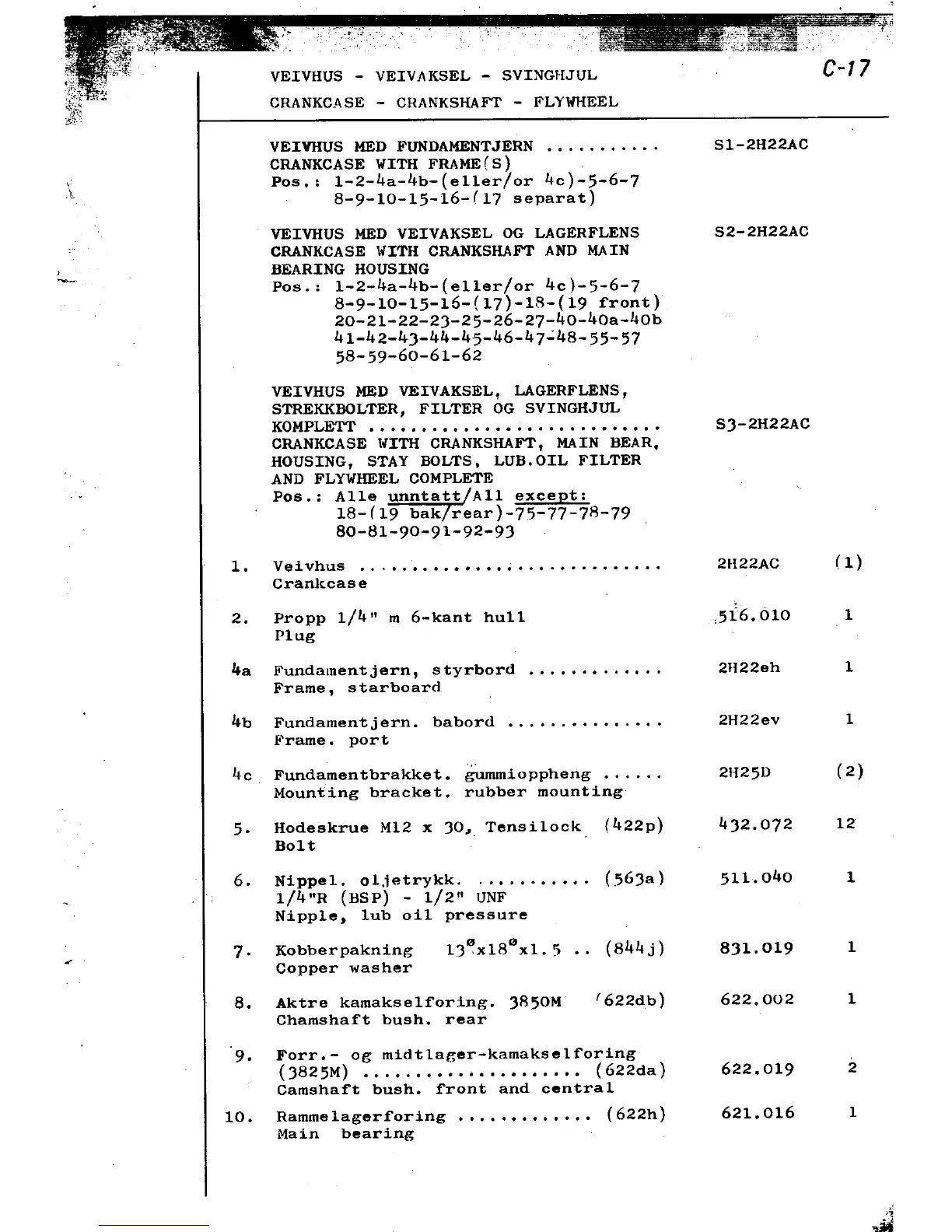

VEIVHUS - VEIVAKSEL - SVINGHJUL
CRANKCASE - CRANKSHAFT - FLYWHEEL
VEIVHUS MED FUNDAMENTJERN ".'.' Sl-2H22AC
CRANKCASE WITH FRAME(S)
\ Pos.: 1-2-4a-l~b-(e11er/or l~c)-5-6-7
8-9-10-15-16-(17 separat)
VEIVHUS MED VEIVAKSEL OG LAGERFLENS S2-2H22AC
CRANKCASE 'fITH CRANKSHAFT AND MAIN
~ BEARING HOUSING
Pos.: 1-2-4a-4b-(e11er/or 4c)-5-6-7
8-9-10-15-16-(17)-18-(19 front)
20-21-22-2J-25-26-27-40-40a-40b
41-42-4J-44-45-46-47~48-55-57
58-59-60-61-62
VEIVHUS MED VEIVAKSEL, LAGERFLENS,
STREKKBOLTER, FILTER OG SVINGHJUL
KOMPLETT SJ-2H22AC
CRANKCASE 1fITH CRANKSHAFT, MAIN BEAR,
HOUSING, STAY BOLTS, LUB.OIL FILTER
AND FLYWHEEL COMPLETE
Pos.: Alle unntatt/A11 except:
18-(19 bak/rear)-75-77-78-79
80-81-90-91-92-9J
1. Veivhus 2H22AC (1)
Cranlccas e
2. Propp 1/4" m 6-kant hull 516.010 1
Plug
4a Fundamentjern, styrbord .'" """,., 2H22eh 1
Frame, starboard
4b Fundamentjern. babord , 2H22ev 1
Frame. port
4c Fundamentbrakket. grtmmioppheng .,. ... 2H25D (2)
~Iounting bracket. rubber mounting
5. Hodeskrue M12 x JO, Tensilock (422p) 4J2.072 12
Bolt
6. Nippel. oljetrykk. (56Ja) 511..040 1
1/4"R (BSP) - 1/2" UNF
Nipple. lub oi1 pressure
7. Kobberpakning 1.J~x180xl.5.. (844j) 8J1.019 1
.. Copper was her
8. Aktre kamakse1foring. JR50M 1622db) 622.002 1
Chamshaft bush. rear
9. Forr.- og midtlager-kamakselforing
(J825M) (622da) 622.019 2
Camshaft bush. front and central
10. Ramme1agerforing (622h) 621.016 1
Main hearing
~
~
