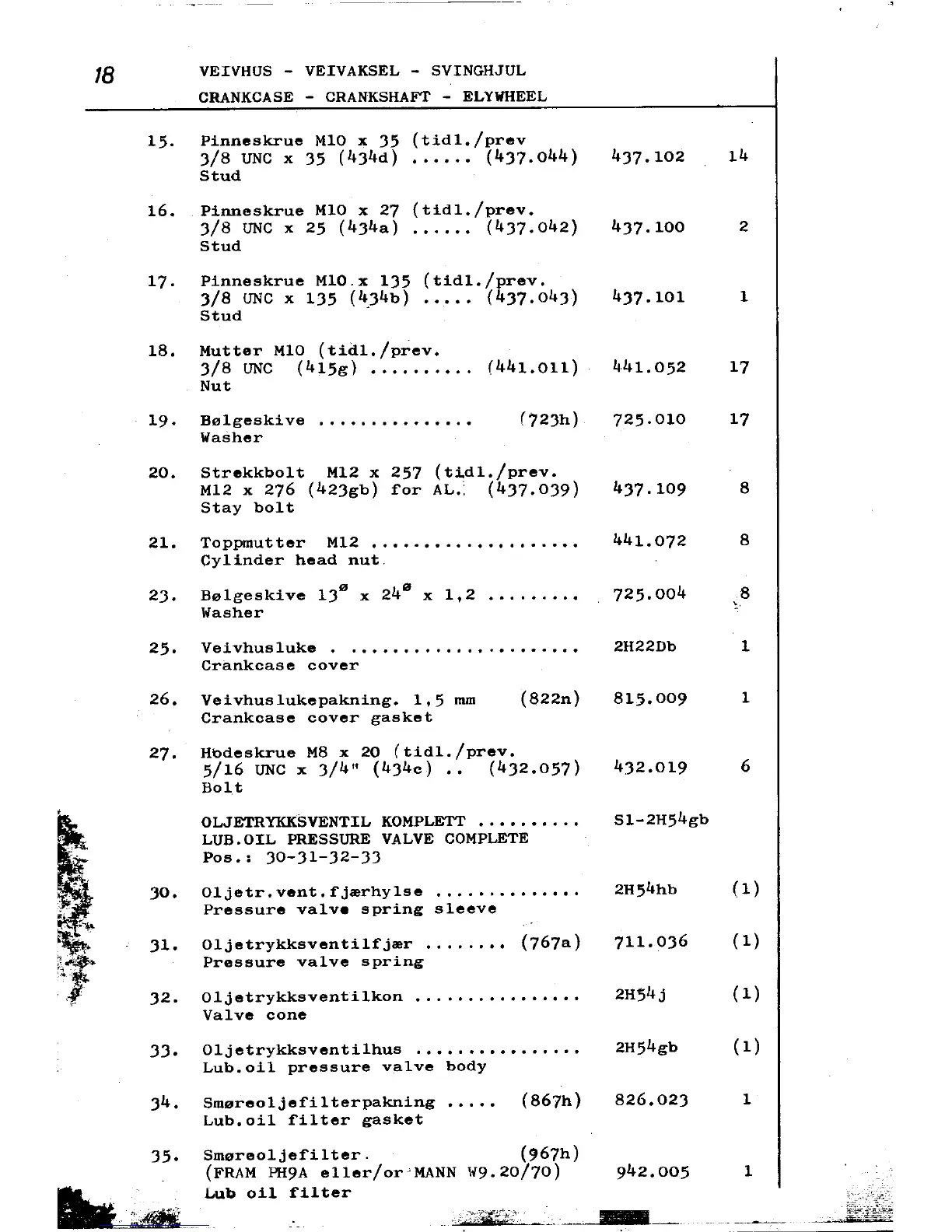

SABB MOTOR 2H - Page 70

.-- 18 VEIVHUS - VEIVAKSEL - SVINGHJUL
CRANKCASE - CRANKSHAFT - ELYWHEEL
15. Pinneskrue MlO x 35 (tid1./prev
3/8 UNC x 35 (434d) . (437.044) 437.102 14
Stud
16. Pinneskrue MlO x 27 (tid1./prev.
3/8 UNC x 25 (434a) (437.042) 437.100 2
Stud
17. Pinneskrue M10.x 135 (tid1./prev.
3/8 UNC x 135 (4)4b) "'" (437.043) 437.101 1
Stud
18. Mutter MlO (tid1./prev.
3/8 UNC (415g) """ (441.011) lj41.052 17
Nut
19. B01geskive , (723h) 725.010 17
Was her
20. Strekkbo1t M12 x 257 (tid1./prev.
M12 x 276 (423gb) for AL. (437.039) 437.109 8
Stay bolt
21. Toppmutter M12 441.072 8
Cylinder head nut
0 40
23. B01geskive 13 x 2 x 1,2 ., ... 725.004 8
Washer :.
25. Veivhus1uke. 2H22Db 1
Crankcase cover
26. Veivhus1ukepakning. l,S mm (822n) 815.009 1
Crankcase cover gasket
27. Hodeskrue M8 x 20 (tid1./prev.
5/16 UNC x 3/4" (434c) .. (432.057) 432.019 6
Bolt
,
Ii OLJETRYKKSVENTIL KOMPLETT Sl-2H54gb ',.~ LUB.OIL PRESSURE VALVE COMPLETE
c Pos.; 30-31-32-33
~", 30. 01jetr.vent.fjrerhy1se 2H54hb (1)
;i, -' Pressure va1v8 spring sleeve
,r-"
~ 31. 01jetrykksventi1fjrer (767a) 711.036 (1)
~,~~ Pressure va1ve spring
:.~
,I 32. 01jetrykksventî1kon 2H;4j (1)
Va1ve cone
33. 01jetrykksventi1hus 2H54gb (1)
Lub.oil pressure valve body
34. Sm0reo1jefi1terpakning (867h) 826.023 1
Lub.oi1 filter gasket
35. Sm0reo1jefi1ter. (967h)
(FRAM PH9A e1ler/or MANN W9.20/70) 942.005 1
Lub oi1 filter ,,;.'
