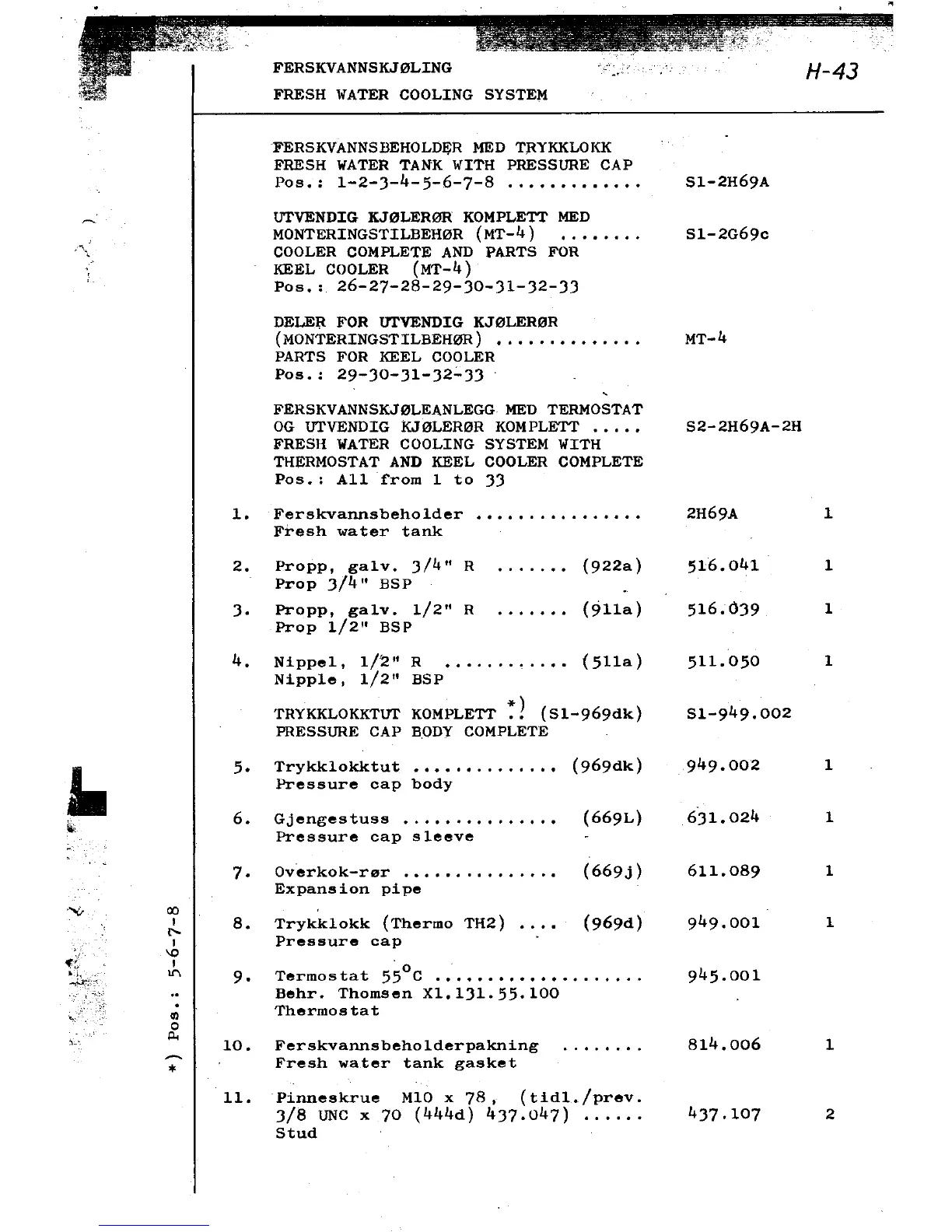

SABB MOTOR 2H - Fresh Water Cooling System Parts List

,
FERSKVANNSKJ0LING
,,;I FRESH WATER COOLING SYSTEM
FERSKVANNSDEHOLD~R MED T~YKKLOI(K
FRESH WATER TANK WITH PRESSURE CAP
Pos.: 1-2-J-4-5-6-7-8 Sl-2H69A
~ UTVENDIG KJ0LER0R KOMPLETT MED
MONTERINGSTILDEH0R (MT-4) '." Sl-2G69c
,.,~ COOLER COMPLETE AND PARTS FOR
': KEEL COOLER (MT-4)
,. Pos.: 26-27-28-29-JO-J1-J2-JJ
DELER FOR UTVENDIG KJ0LER0R
(MONTERINGSTILBEH0R) MT-4
PARTS FOR KEEL COOLER
Pos.: 29-JO-J1-J2-JJ
FERSKVANNSKJ0LEANLEGG MED TERMOSTAT
OG UTVENDIG KJ0LER0R KOMPLETT '.". S2-2H69A-2H
FRESH WATER COOLING SYSTEM WITH
THERMOSTAT AND KEEL COOLER COMPLETE
Pos.: A11 t:rom 1 to JJ
1. Ferskvannsbeholder 2H69A 1
Fi-esh water tank
2. Propp, ga1v. J/4" R .. "'.. (922a) 516.041 1
Prop J/4" ESP
J. Propp, ga1v. 1/2" R (911a) 516.0J9 1
Prop 1/2" ESP
4. Nippel, 1/'2" R , (511a) 511.050 1
Nipp1e, 1/2" BSP
TRYKKLOKKTUT KOMPLETT ~~ (Sl-969dk) Sl-949.002
PRESSURE CAP BODY COMPLETE
~ 5. Trykk1okktut ... (969dk) 949.002 1
. Pressure cap body
" 6. Gjengestuss (669L) 631.024 1
""
Pressure cap sleeve
7. Overkok-rer ,... (669j) 611.089 1
Expansion pipe
00
~ 8. Trykk1okk (Thermo TH2) (969d) 949.001 1
I Pressure cap
\0
I
~ 9. Termostat 55OC 945.001
.. Dehr. Thomsen X1.1J1.55.100
.,; Thermostat
0
'c ~ 10. Ferskvannsbeho1derpakning .. 814.006 1
-;- Fresh water tank gasket
11. Pinneskrue MlO x 78, (tidl./prev.
J/8 UNC x 70 (444d) 4J7.047) .. 4J7.107 2
Stud
