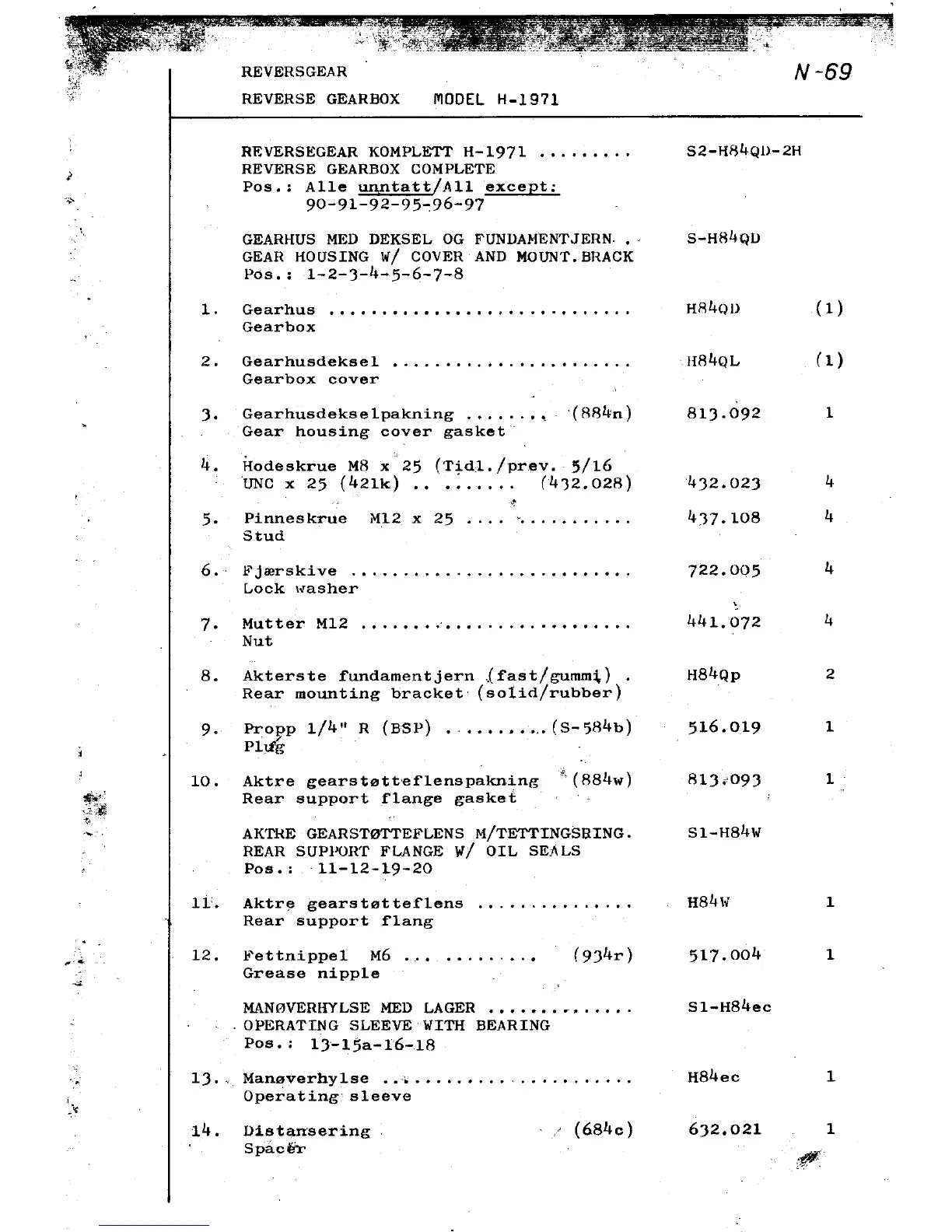

REVERSGEAR N-69
REVERSE GEARBOX
REVERSEGEAR KOMPLETT H-1971 ., S2-HH4Qil-2H
; REVERSE GEARBOX COMPLETE
Pos.: Alle unntattlAll except;
-- 90-91-92-9 5~96-97
GEARHUS MED DEKSEL OG FUNDA~fENTJERN. . S-H84Ql)
GEAR HOUSING W/ COVER AND MOUNT.BRACK
Pos.: 1-2-3-4-5-6-7-8
1. Gearhus.. ., . . .. '" .. . . . . . . .. .. . . . . . . HR4Qil (1)
Gearbox
2. Gearhusdeksel HR4QL (1)
Gearbox cover
3. Gearhusdekselpakning , .., (884n) 813.092 1
Gear housing cover gasket
4. Hodeskrue M8 x 25 (Tidl./pr~v. 5/16
UNC x 25 (421k) ...: (4'32.028) 432.02) 4
"
5. Pinneskrue M12 x 25 ' 437.108 4
Stud
6. l"jmrskive """""'.".'.""""" 722.0Q5 4
Lock "rasher
,
7. Mutter M12 "..""""".""""'" 441.072 4
Nut
8. Akterste fundamentjern .(fast/gumm\). H84Qp 2
Rear mounting bracket (so1id/rubber)
9. Propp 1/4" R (B\5P) (S-584b) 516.019 1
; PIT.tg
! 10. Aktre gearst0ttef1enspakning (884w) 813,093 .t
~, Rear support f1ange gasket
"
~ AKTHE GEARST0TTEl"LENS M/TETTINGSQING. Sl-H84w
REAR SUPPOI~T FLANGE W/ OIL SEALS
Pos.: 11-12-19-20
11. Aktr~ gearst0ttef1ens , H84\; 1
Rear support flang
~1 12. l"ettnippe1 M6 ... """" (9)4r) 517.004 1
Grease nipp1e
4
MAN0VERIIYLSE MED LAGER r.. Sl-H84ec
Ol'ERATING SLEEVE WITH BEARING
Pos.: 1)-15a-1'6-.tB
1)., Man0verhy1se H84ec 1
i Operatings1eeve
;.
14. Distansering (684c) 632.021 1
Spacfi"r .-'
~;
