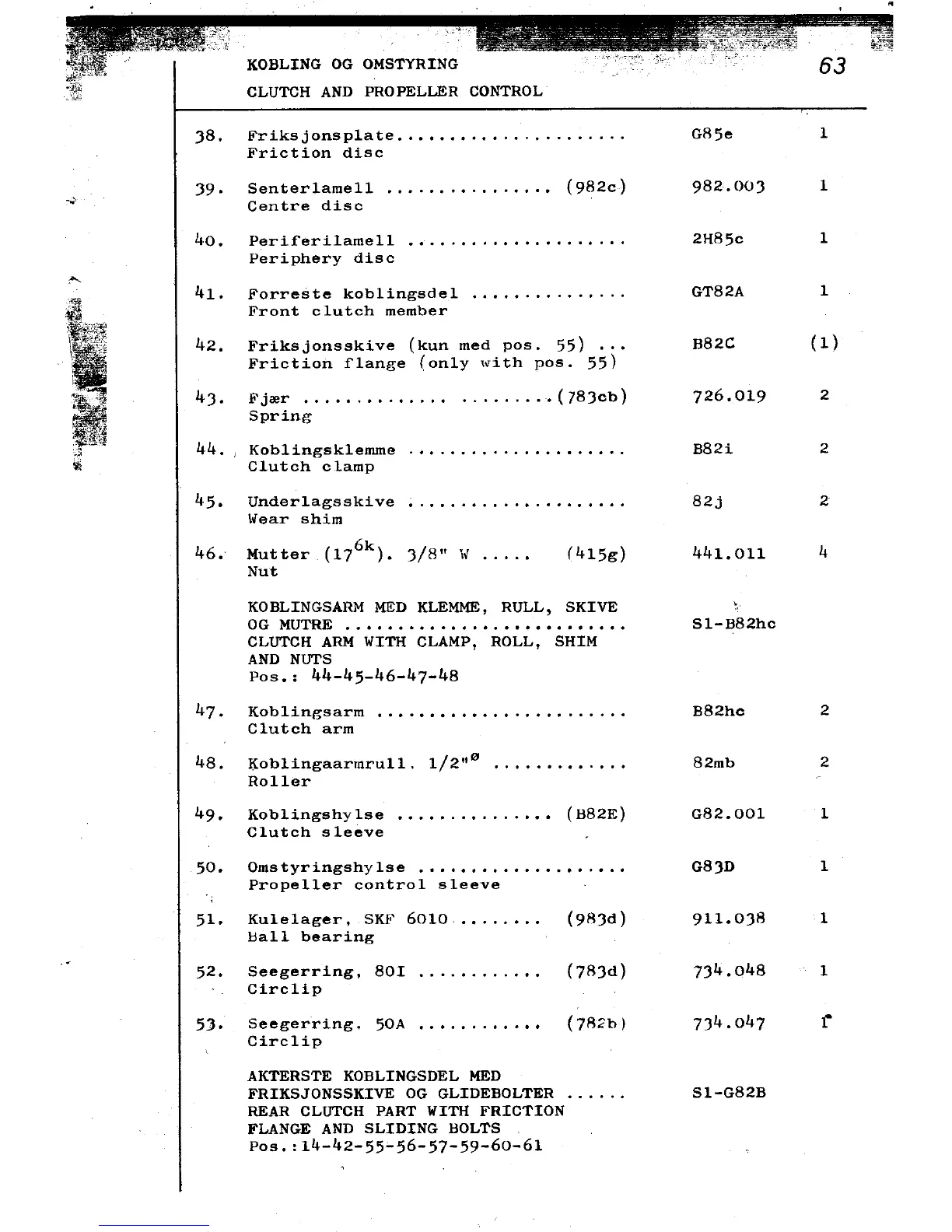

KOBLING OG 63
CLUTCH AND PROPELLER CONTROL
J8. Friksjonsp1ate GR5e 1
Friction disc
J9. Senter1ame11 """""".'.. (982C) 982.003 1
"" Centre disc
iJo. Periferi1ame11 2H85c 1
Periphery disc
'"'"
41. Forreste kob1ingsde1 GT82A 1
Front c1utch member
42. Friksjonsskive (kun med pos. 55) .,. B82C (1)
Friction f1ange (on1y \"ith pos. 55)
43. Fjrer (78Jcb) 726.019 2
Spring
,;. iJ4.,Koblingsk1emme B82i 2
'iI Clutch clamp
45. Under1agsskive '.""""".'.""" 82j 2
Wear shim
46. Mutter (176k). 3/R" ,. (4l5g) 441.011 4
Nut
KOBLINGSA11M MED KLEMME, RULL, SKIVE ~
OG MUTRE Sl-B82hc
CLUTCH ARM WITH CLAMP, ROLL, SHIM
AND NUTS
Pos.: 44-45-46-47-48
47. Koblingsarm B82hc 2
Clutch arm
48. ~ob1ingaarmru1l. 1/2"" 82mb 2
Roller
49. Kob1ingshy1se (B82E) G82.001 1
C1utch sleeve
50. Omstyringshy1se "".'.' " '. G83D 1
Propeller control sleeve
51. Ku1e1ager, SKF 6010 ". (9R3d) 911.03R 1
Hall hearing
. 52. Seegerring, 80I "'."".'.. (7R3d) 734.048 1
Circ1ip
SJ. Seegerring. SOA (7R2b) 734.047 f
Circlip
AKTERSTE KOBLINGSDEL MED
FRIKSJONSSKIVE OG GLIDEBOLTER ...,.. Sl-G82B
REAR CLUTCH PART WITH FRICTION
FLANGE AND SLIDING BOLTS
Pos. :14-42-55~56-57-59-60-61
