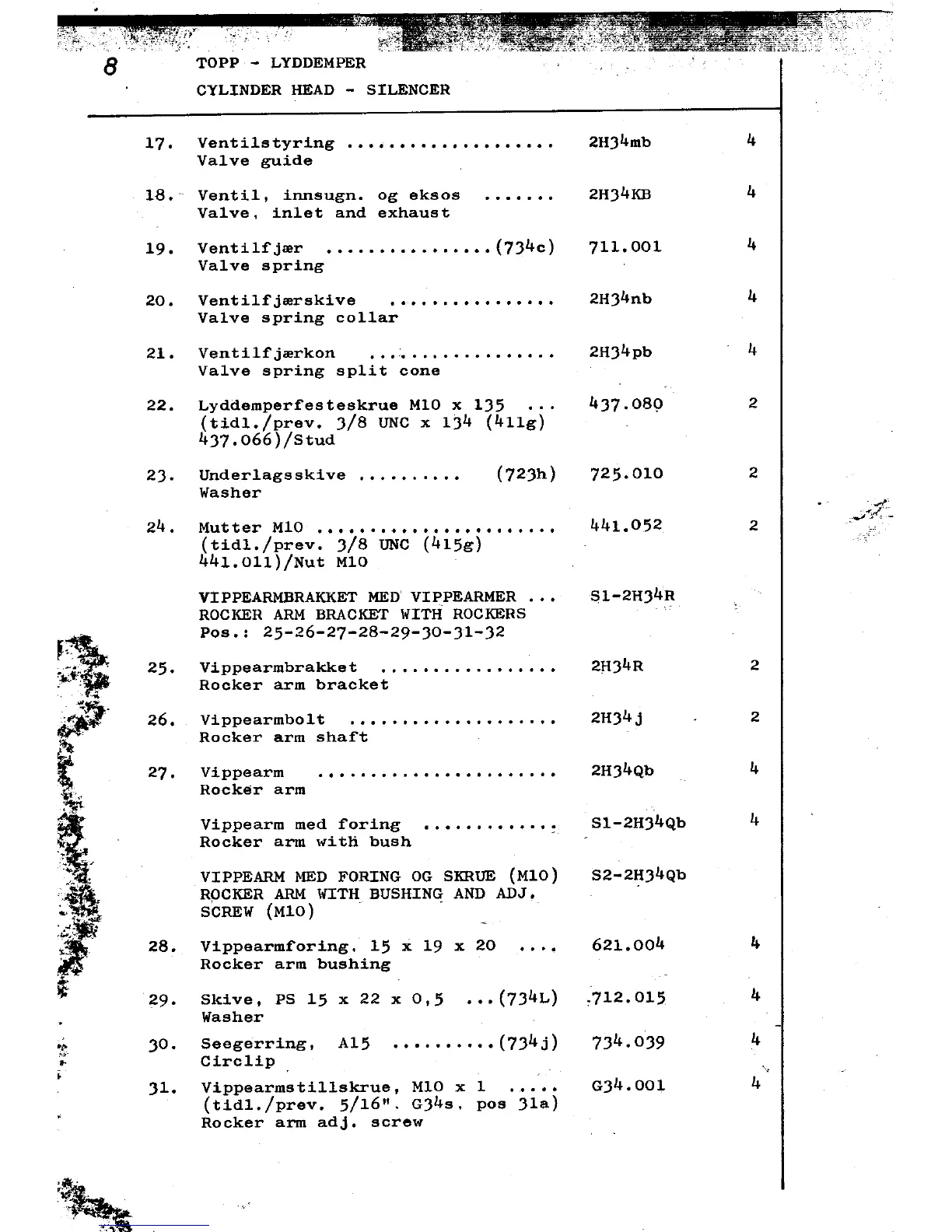

SABB MOTOR 2H - Page 61

LYDDEMPER
CYLINDER HEAD - SILENCER
17. Venti1styring 2HJ4mb 4
Va1ve guide
18. Ventil, innsugn. og eksos 2HJ4KB 4
Va1ve. in1et and exhaust
19. Venti1fjmr (7J4c) 711.001 4
Va1ve spring
20. Venti1fjmrskive . ... '" ... 2HJ4nb 4
Va1ve spring collar
21. Venti1fjmrkon 2HJ4pb 4
Va1ve spring split cone
22. Lyddemperfesteskrue MlO x 1J5 .,. 4J7.080 2
(tid1./prev. J/8 UNC x 1J4 (411g) .
4J7.066)/Stud
2J. Under1agsskive ... ... "" (72Jh) 725.010 2
Washer
:t
24. Mutter MlO 441.052 2 ..-~,-
(tid1./prev. J/8 UNC (415g)
441.011)/Nut MlO
VIPPEARMBRAKKET MED VIPPEARMER .,. Sl-2HJ4R
ROCKER ARM BRACKET WIT" ROCKERS
- Pos.: 25-26-27-28-29-JO-Jl-J2
J,: ,
,~~ 25. Vippearmbrakket 2~J4R 2
, Rocker arm bracket
~
iP- 26. Vippearmbo1t 2HJ4j 2
~ Rocker arm shaft
it 27. Vippearm 2HJ4Qb 4
~ Rocker arm
,., Vippearm med foring .. . . . . . . . . . . ~ Sl-2HJ4Qb 4
. Rocker arm 'vi tli bush
: ;',
..
.~ VIPPEARM MED FORING OG SKRUE (MlO) S2-2HJ4Qb
,.a RpCKER ARM WITH BUSHING AND ADJ. -
.,~ SCREW (MlO)
."~
,..'~
~ 28. Vippearmforing. 15 x 19 x 20 621.004 4
f~ Rocker arm bushing
29. Slcive,PS15x22xO,5 ...(7J4L) ,712.015 4
'" Washer
~Z JO. Seegerring, A15 (7J4j) 7J4.oJ9 4
.. Circ1ip
i "
J1. Vippearmsti11skrue, MlO xl GJ4.001 4
(tid1./prev. 5/16"- GJ4s. pos J1a)
Rocker arm adj. screw
~
