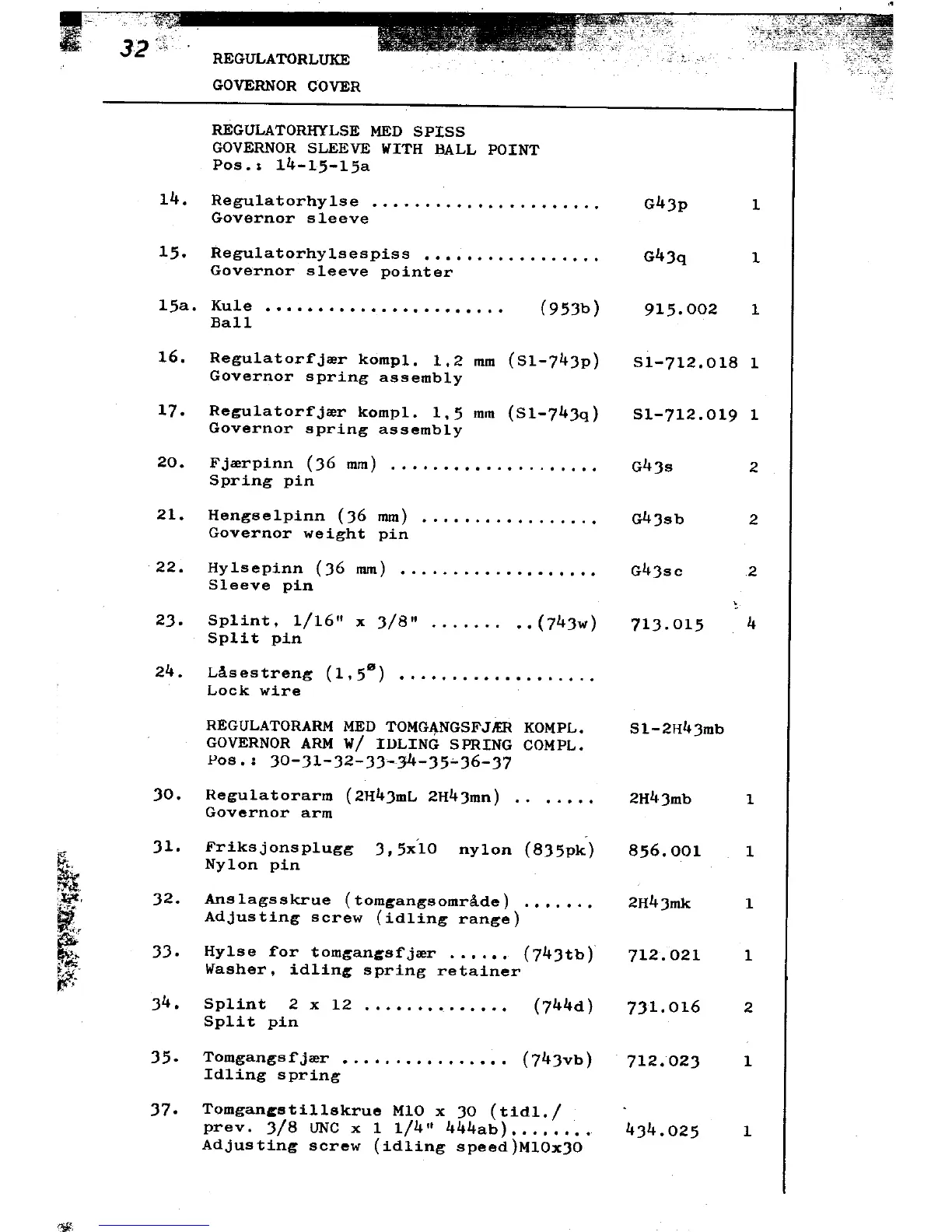

SABB MOTOR 2H - Page 84

REGULATORLUKE
GOVERNOR COVER
REGULATORHYLSE MED SPISS
GOVERNOR SLEEVE WITH HALL POINT
Pos.~ 14-1S-1Sa
14. Regu1atorhy1se G43p 1
Governor sleeve
lS. Regu1atorhy1sespiss G43q 1
Governor sleeve pointer
lSa. Ku1e (9S3b) 91S.002 1
Ba11
16. Regu1atorfjmr kompl. 1.2 mm (Sl-743p) Sl-712.0181
Governor spring assemb1y
17. Re~u1atorfjmr kompl. 1.S mm (Sl-743q) Sl-712.0191
Governor spring assemb1y
20. Fjmrpinn (36 mm) G43s 2
Spring pin
21. Hengse1pinn (36 mm) G43sb 2
Governor weight pin
22. Hy1sepinn (36 mm) G43sc 2
Sleeve pin
,
23. Sp1int. 1/16" x 3/8" '."'" ..(743w) 713.01S 4
Split pin
24. Làsestreng (l.Ss) Lock wire
REGULATORARM MED TOMGANGSFJER KOMPL. Sl-2H43mb
GOVERNOR ARM w/ IDLING SPRING COMPL.
Pos.: 30-31-32-33~J4-3S-36-37
30. Reg-u1atorarm (2H43mL 2H43mn) .. . 2Hlt3mb 1
Governor arm
\~ 31. Friksjonsp1ugg 3,SxlO nylon (83Spk) 8S6.001 1
~ Nylon pin
'IY~
:.~. 32. Ans1agsskrue (tom~angsomrade) '."." 2H43mk 1
~, Adjusting screw (id1ing range)
~ 33. Hy1se for tom~an~sfjmr . (743tb) 71Z.021 1
~ Washer, id1in~ spring retainer
34. Sp1int 2 x 12 (744d) 73l.016 2
Split pin
3S. Tomgangsfjmr .'."'..".'...' (743vb) 712.023 1
Id1ing spring
37. Tomgan~sti11skrue MlO x 30 (tid1./
prev. 3/8 UNC x 1 1/4" 444ab) 434.02S 1
Adjusting screw (id1ing speed)M10x30
~
